9.3 Axis expansion using the monitoring module
9.3.1 Connection example, power supply (standard)

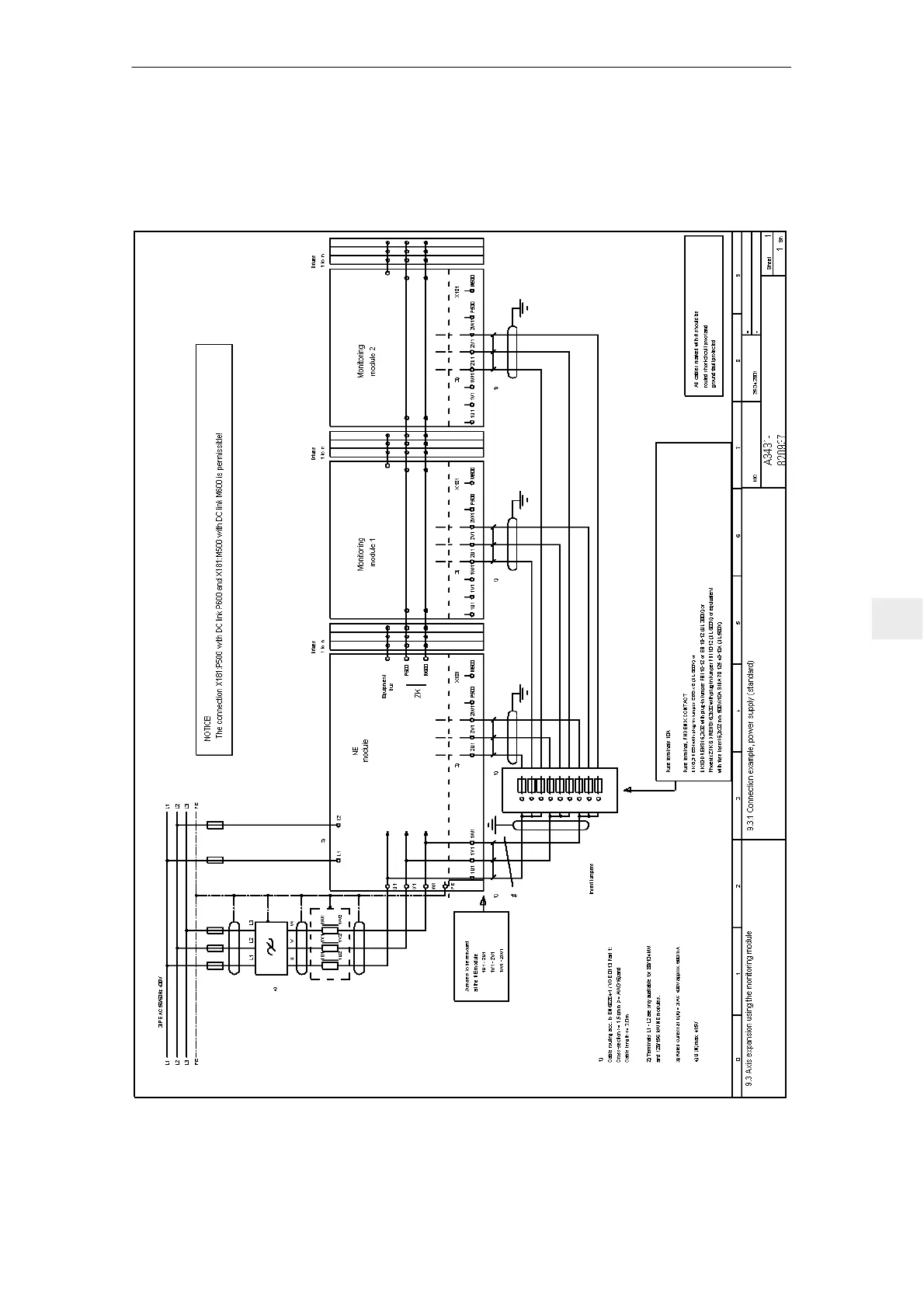

Fig. 9-5 Connection example, power supply (standard)
