5.5 Induction motor control with analog setpoint interface 6SN1122–0BA1_–0AA_
5-118
 Siemens AG 2001 All rights reserved
SIMODRIVE 611 Planning Guide (PJU) – 05.01 Edition
5.5 Induction motor control with analog setpoint interface
6SN1122–0BA1_–0AA_
The following appropriate control components are available for standard
induction motors without rotary encoder (Order No. 6SN1122–0BA11–0AA1).
Version label
Software
–
P
+
M
X2
663
AS2
AS1
674
673
672
61 A
51 A
41 A
31 A
21 A
11 A
289
M
92 A
M
91 A
IR
X1
E8
9
E9
E7
E6
E5
E4
E3
E2
E1
81
65
8
24
14
56
0.8 Nm
M3 / 0.8 Nm
M3 / 0.8 Nm

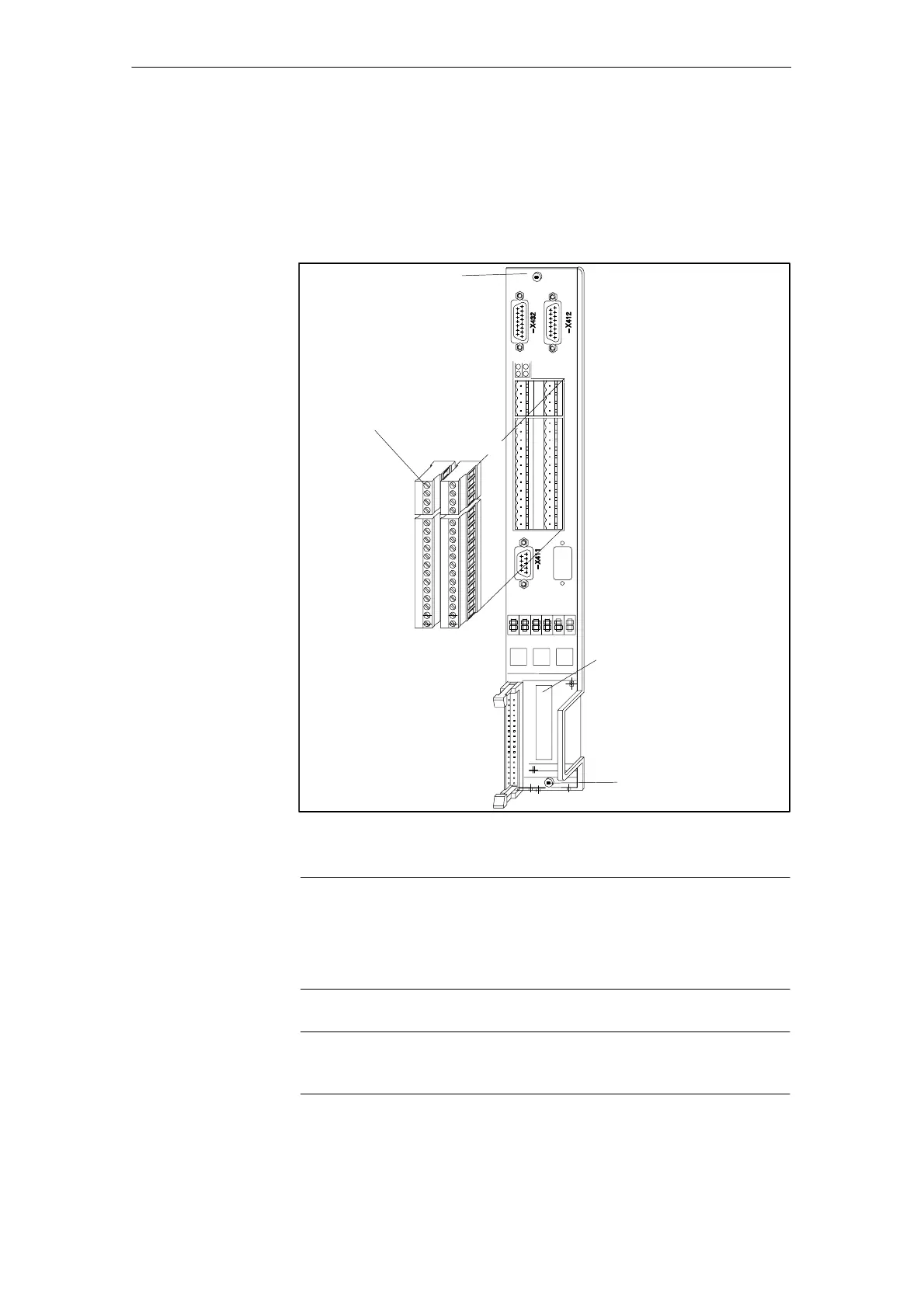

Fig. 5-6 Induction motor control
Note
When using non–PELV circuits at terminals AS1, AS2, connector coding must
be used so that the connectors cannot be interchanged (refer to EN60204–1,
Section 6.4).
Order No. of the coding, refer to Catalog NC 60.
Notice
Only PELV circuits may be connected at connector X432 pin15 (FR–).
Induction motor
control
5 Control Modules
