5
05.01
5.7 Control module ”SIMODRIVE 611 universal”
5-130
Siemens AG 2001 All rights reserved
SIMODRIVE 611 Planning Guide (PJU) – 05.01 Edition
The following 1 axis control module is available:
Slot for
S optional TERMINAL module
or
S optional PROFIBUS–DP module
Memory module
S Firmware
S User data
Pulse interface
1–axis for resolvers
Equipment bus
Display and operator control unit
S Interfaces
S Terminals,
S Terminals
These interfaces have
no function for the
1–axis version
The following is valid for screws:
Tighten (for the shield contact)
Max. torque = 0.8 Nm
The following applies for plug connections:
In order that the plug connections with the same number of pins
cannot be incorrectly inserted, they must be appropriately coded.
X302

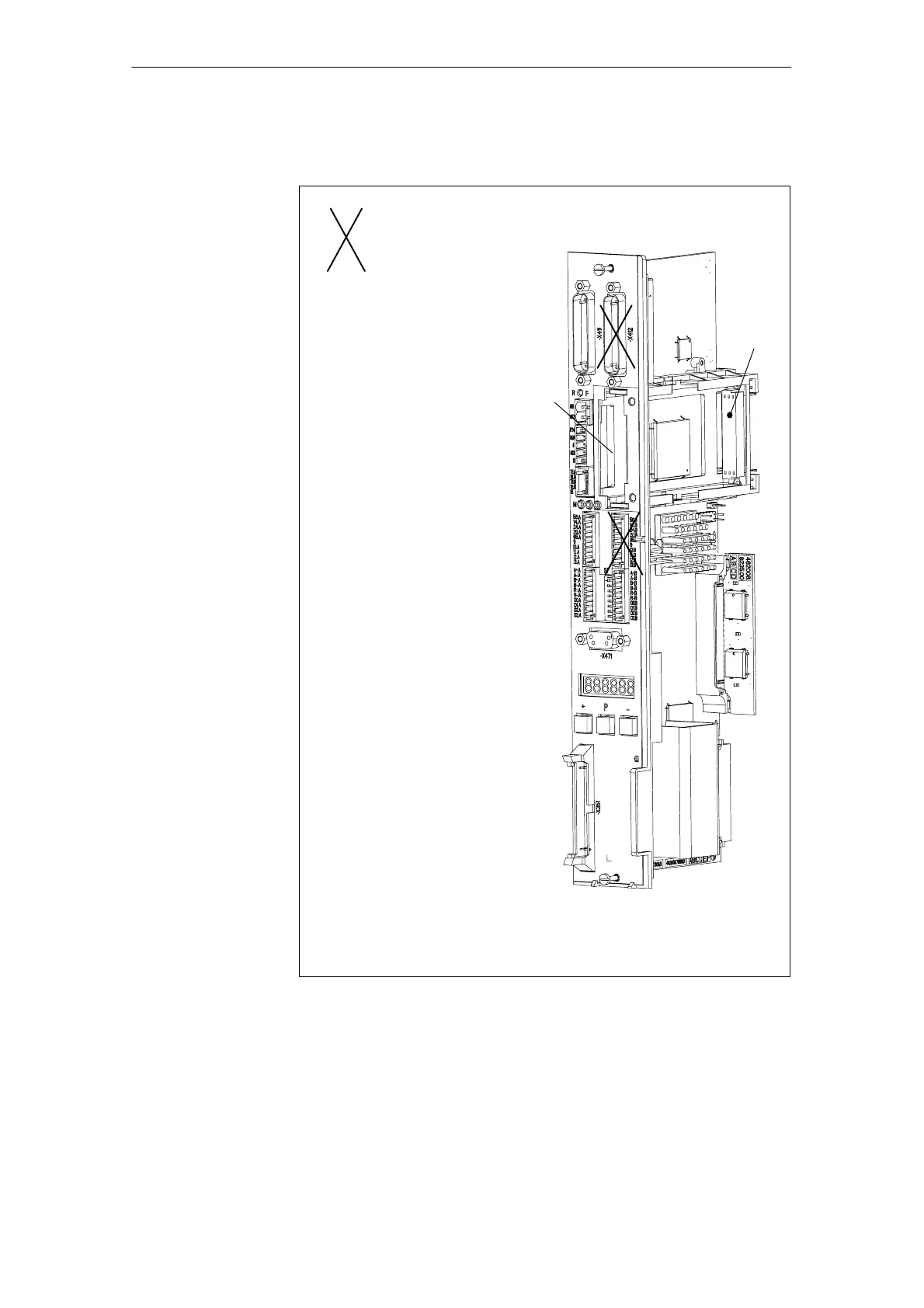

Fig. 5-9 Control module for 1 axis
Control module for
1 axis
5 Control Modules
