5.7 Control module ”SIMODRIVE 611 universal”
5-131
 Siemens AG 2001 All rights reserved
SIMODRIVE 611 Planning Guide (PJU) – 05.01 Edition
Using this option module, an additional 8 digital inputs and outputs can be
implemented for drive A.
The functionality of these inputs/outputs can be freely parameterized
Order No.:
6SN1114–0NA00–0AA0
I4
I5
I6
I7
I8
I9
I10
I11
O4
O5
O6
O7
O8
O9
O10
O11
X422
8 inputs
X432
8 outputs
The following is valid for screws:
Tighten (for shield contact)
Max. torque = 0.8 Nm

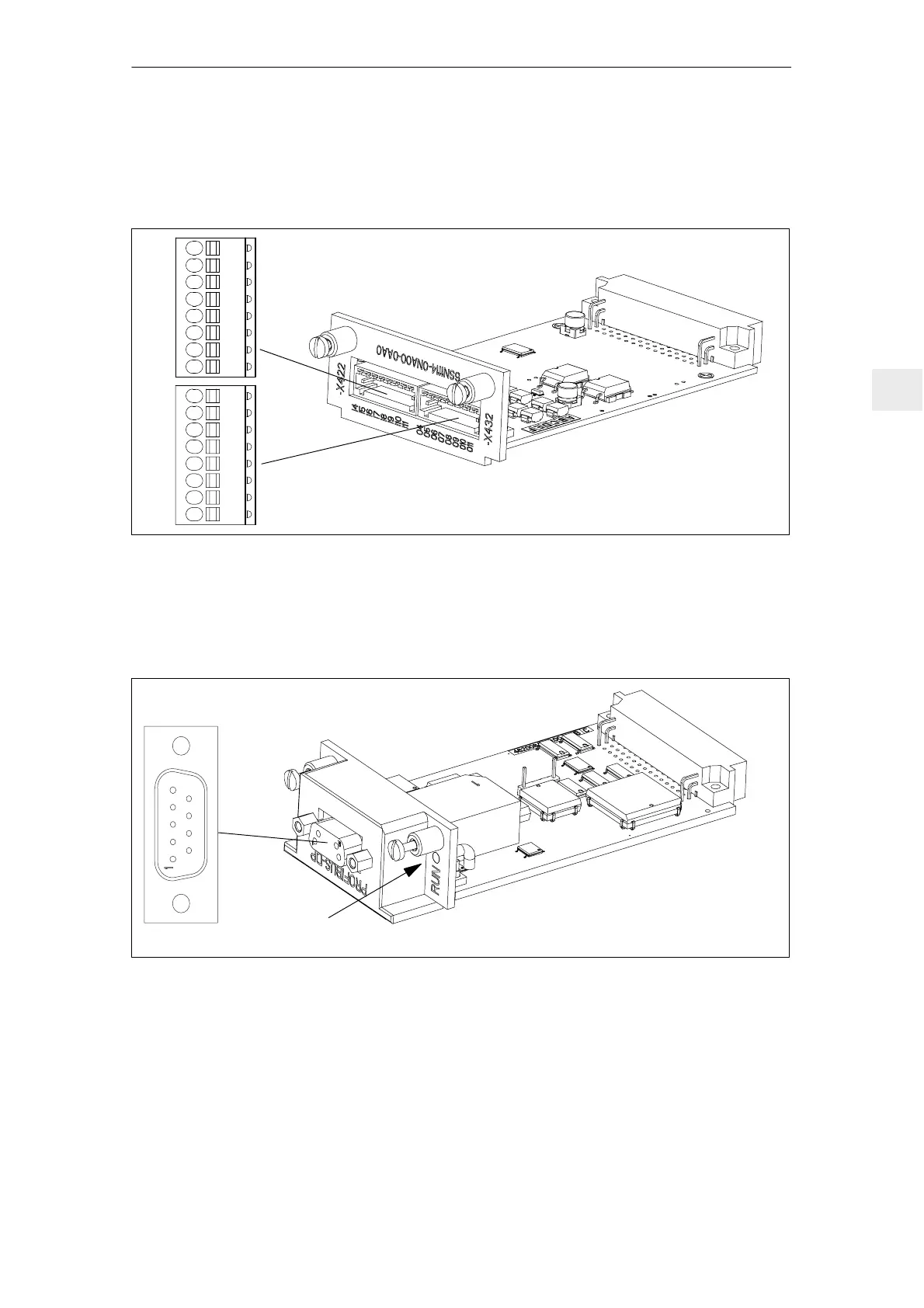

Fig. 5-10 Optional TERMINAL module
The ”SIMODRIVE 611 universal” control module can be connected and
operated as DP slave on the PROFIBUS DP fieldbus using this option module.
X423
Two color LED
for diagnostics
The following is valid for screws:
Tighten (for shield contact)
Max. torque = 0.8 Nm
Fig. 5-11 Optional PROFIBUS–DP module
Which PROFIBUS–DP option modules are there?
S PROFIBUS–DP1 6SN1 114–0NB00–0AA0
S PROFIBUS–DP2 6SN1 114–0NB00–0AA1
S PROFIBUS–DP3 6SN1 114–0NB01–0AA0
Optional terminal
module
Optional
PROFIBUS–DP
module
5 Control Modules
