1.1 Overview of SIMODRIVE 611
1-18
Siemens AG 2001 All rights reserved
SIMODRIVE 611 Planning Guide (PJU) – 05.01 Edition
Matching,
isolating
transformer
Line supply connection
refer to Section 7
Infeed modules
refer to Section 6
Power modules
refer to Section 4
Power module with
internal cooling
Power module
with external
cooling
Power module
with hose cooling
or
600 V DC
Monitoring module
TN supply
3–ph. 400 V AC
3–ph. 415 V AC
3–ph. 480 V AC
TN supply
3–ph. 400 V AC
3–ph. 415 V AC
3–ph. 400 V AC
Uncontrolled infeed module
Infeed/regenerative
feedback module,
internal cooling
HF commutating reactor
Line filter
External pulsed
resistor
0.3/25 kW
Pulsed resistor
module
External pulsed
resistor
1.5/25 kW
Capacitor module
refer to Section 6.6.1

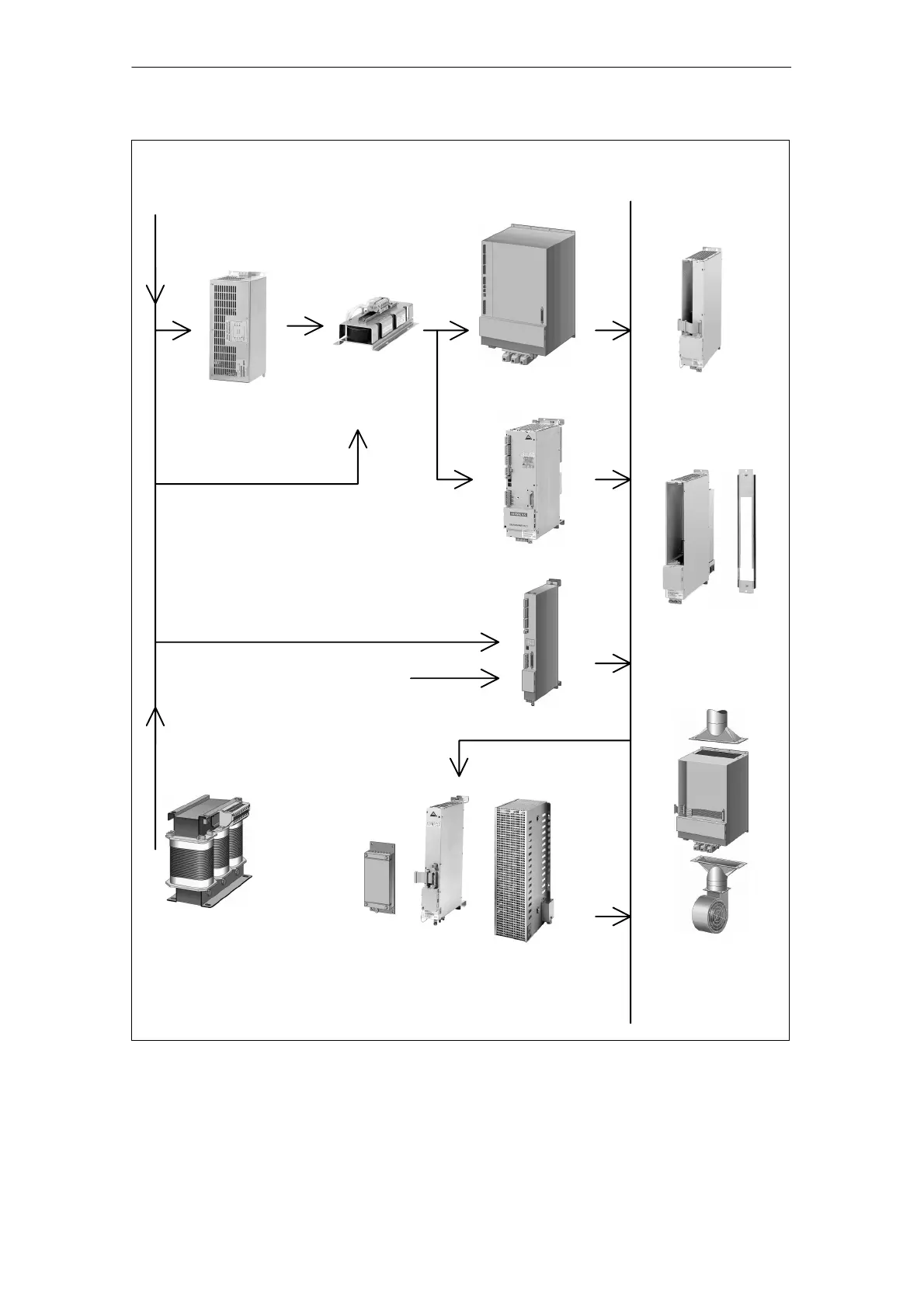

Fig. 1-2 Overview of the SIMODRIVE 611 drive system
1 Overview of the Drive System
