6
05.01
6.5 Monitoring module
6-183
Siemens AG 2001 All rights reserved
SIMODRIVE 611 Planning Guide (PJU) – 05.01 Edition
Changeover switch, parameter
monitoring module
Ready
signal
Enable signals and
group signal I
2
t
Power supplies
for external use
Setting–up
operation signal
LED displays
Line supply connections
Electronics
power supply
P500/M500
DC link
busbar
DC link terminals
P600 M600 X131 PE1
Equipment
bus
X111
X121
X141
X161
X181
X351
M600
P600

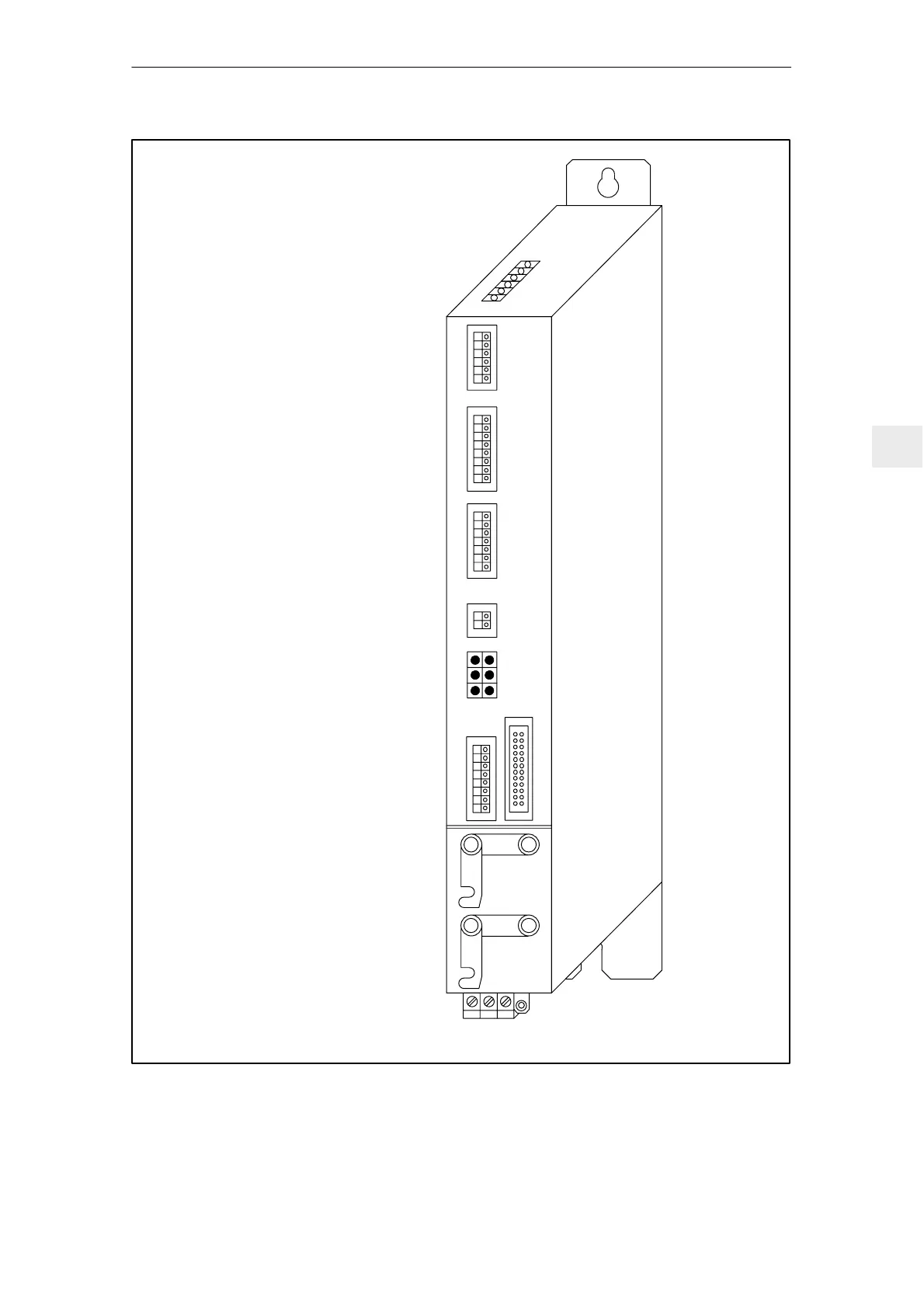

Fig. 6-8 Monitoring module 6SN1112–1AC01–0AA1
