Siemens SIPROTEC 7UM62 User Manual

Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
374
Input/Output Board C-I/O-1

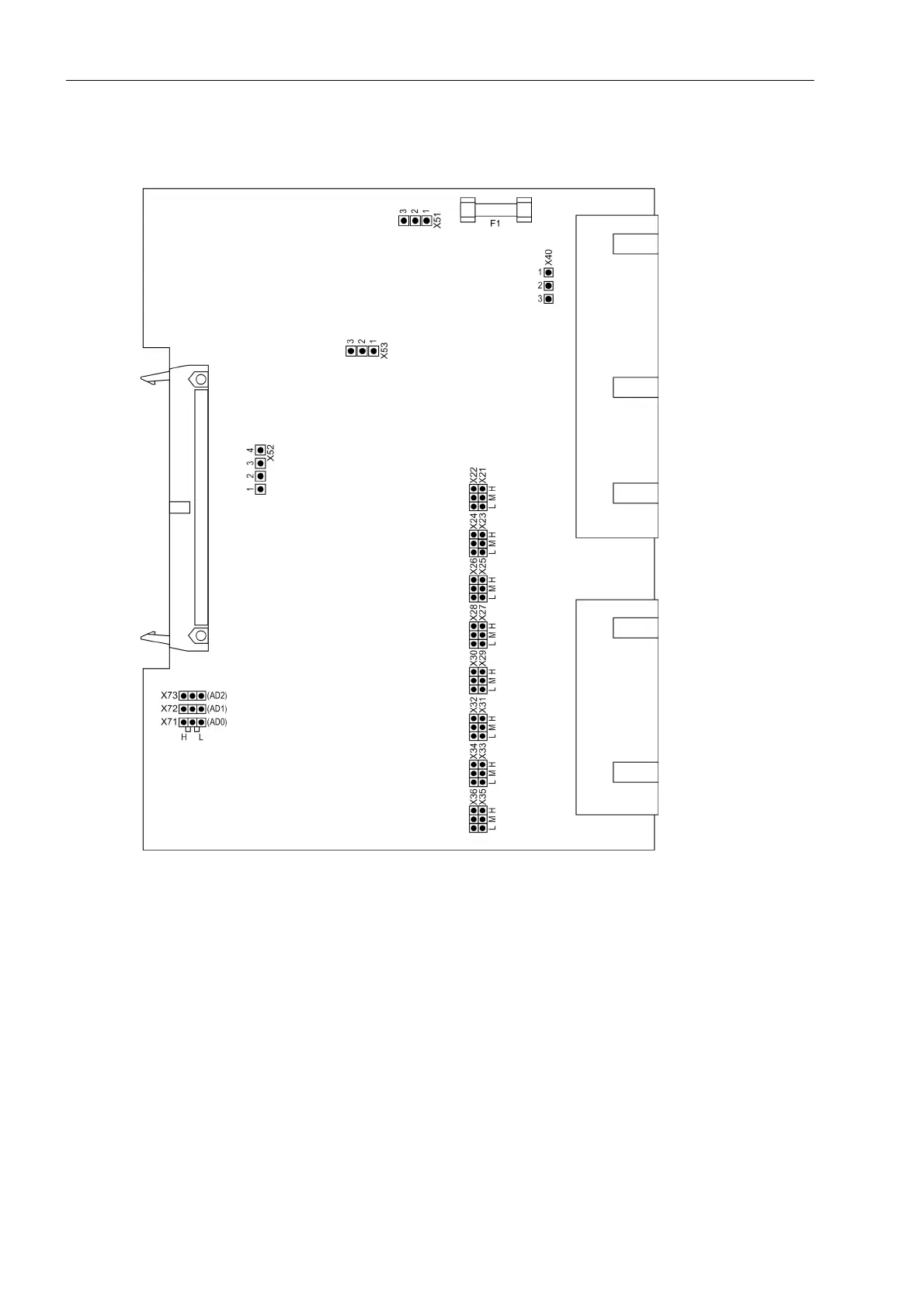

Figure 3-5 Input/output board C-I/O-1 with representation of the jumper settings required
for the board configuration
In the version 7UM622, binary output BO 13 on the input/output board C–I/O-1 can be configured as normally
open or normally closed (see also overview diagrams in Appendix A.2).
