Chapter 5
Maintenance and Repair
Focus 30/35 Service Manual 5 - 12 P/N 79000035_SM, Version 1.5

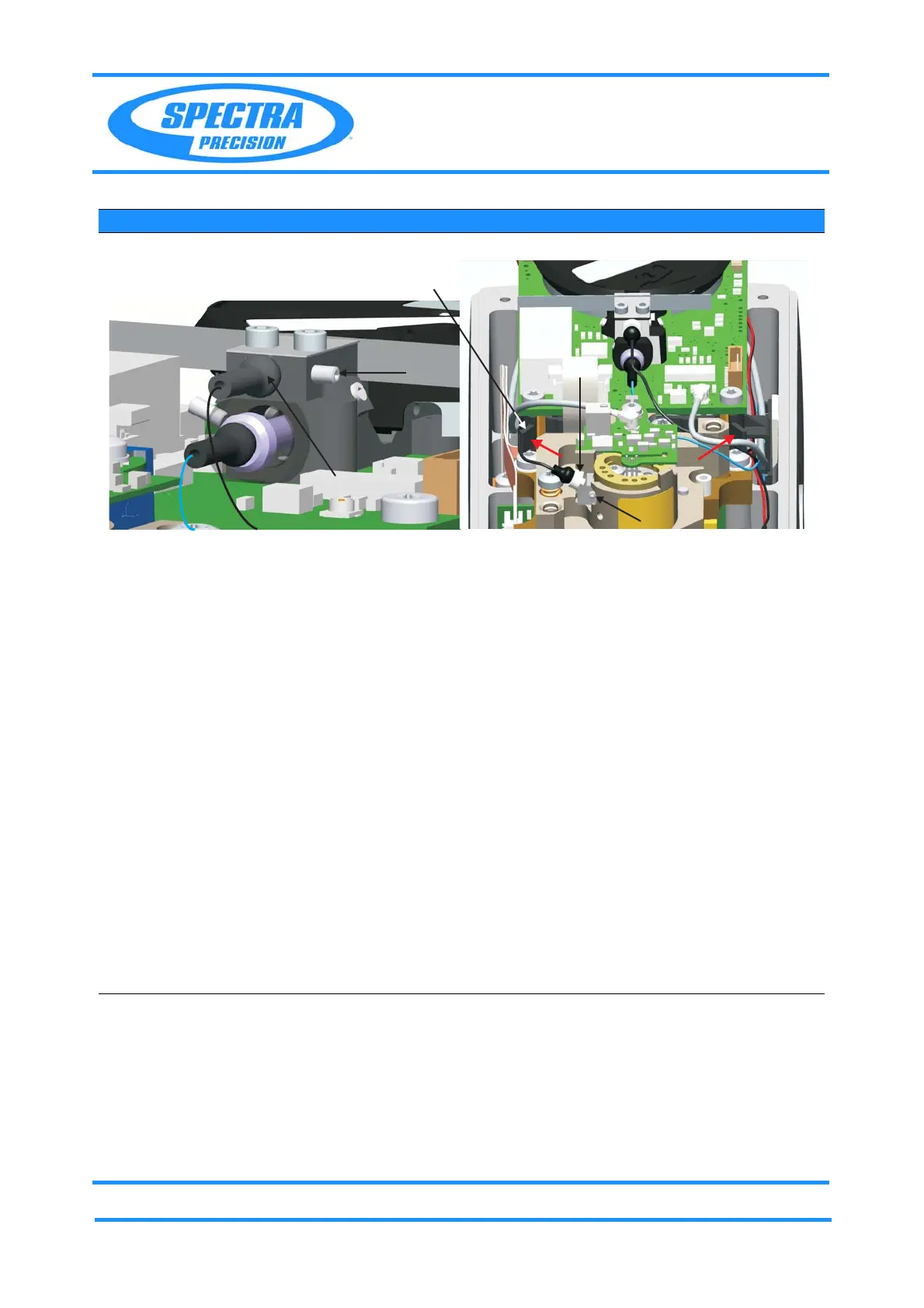

Fig. 5-8 Exchange Reference fibre
3 Remount Reference
fibre.
A. Remount the
Reference fibre
with fibre bender
clip in reverse
order, attend the
laying see Fig. 5-13
on page 5-17 see
Fig. 5-14 on page
5-18 .
B. Clip the Fibre
bender in direction
of red arrows and
push up the bender
against the board.
C. Place the cables
inside the holder of
the Fibre bender
clip.
D. Curve the fibres
arround the
Adjusting screw
according the
laying.
Take care of the
minimum fibre
bender radius
avoiding any
demage of the glas
fibre.
Item Performance Action Result Notes
A
B
C
D
E
E
Fibre bender clip
