Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
Focus 30/35 Service Manual 5 - 68 P/N 79000035_SM, Version 1.5
Optical plummet F30
• Exchange Optical plummet F30
Tools and equipment
Exchange Optical plummet F30
Performance
Description Part number
Torx T8 bit Local tool
Torque wrench 120 Ncm T71600280
Special screw driver T10x80 with clamp spring
(e.g. Wiha 362R T10x80 SoftFinish® TORX®MagicSpring®)
Wiha order number:
27740
BEM 34-32 grease
Item Performance Action Result Notes
1 Remove Side cover
right.
see page 5-27
2 Remove the Optical
plummet.
A. Loosen the screw.
B. Remove the screw
with washer
through the hole of
MCB board
C. Pull out the Optical
plummet.
60Ncm/5,31lbfn
Use a clamp screw
driver Torx T10x80
Don’t drop the
screw inside the
alhidade.

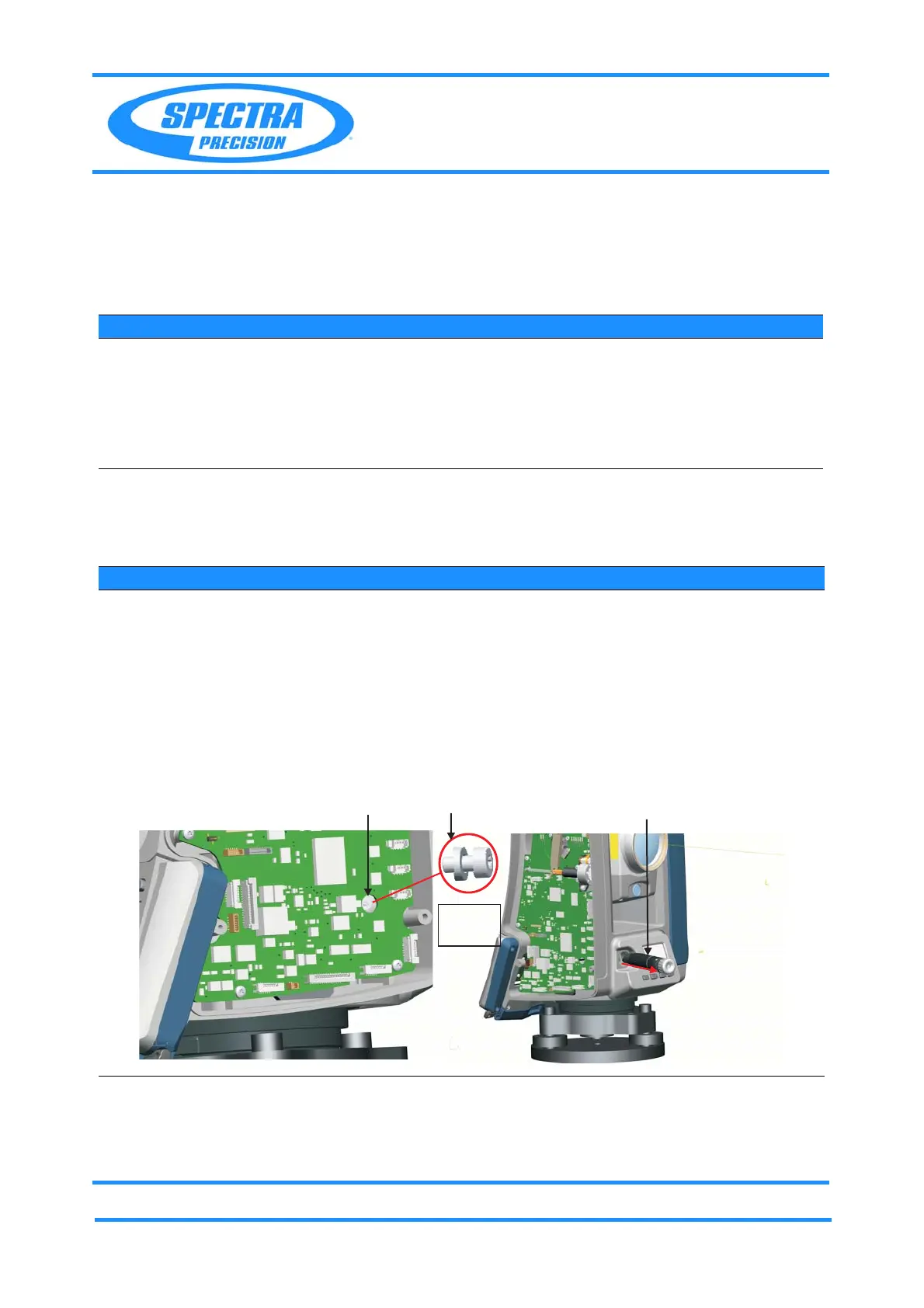

Fig. 5-52 Exchange Optical plummet
A
B
C
60Ncm
5,31lbfn
