Chapter 6
Adjustment and Verification
Focus 30/35 Service Manual 6 - 22 P/N 79000035_SM, Version 1.5
Adjustment of Reticle F30
The optical line of the instrument was determined in production and stored in vertical and horizontal
direction. We want to keep these optical line as reference of the telescope and all other referenced
lines of sight for EDM and Tracker. Therefore we have divided the reticle adjustment in three
possible adjustment cases. To decide the correct adjustment procedure, check the HA/VA collimation
error and compare the results to the following criterias:
• In case CHz > 0,0083 gon/30” and CV < 0,0083gon/30”
Adjustment of Reticle F30 in Hz direction keeping the vertical orientation
• In case CHz 0,0083 gon/30” and CV > 0,0083 gon/30” and vertical angle system was

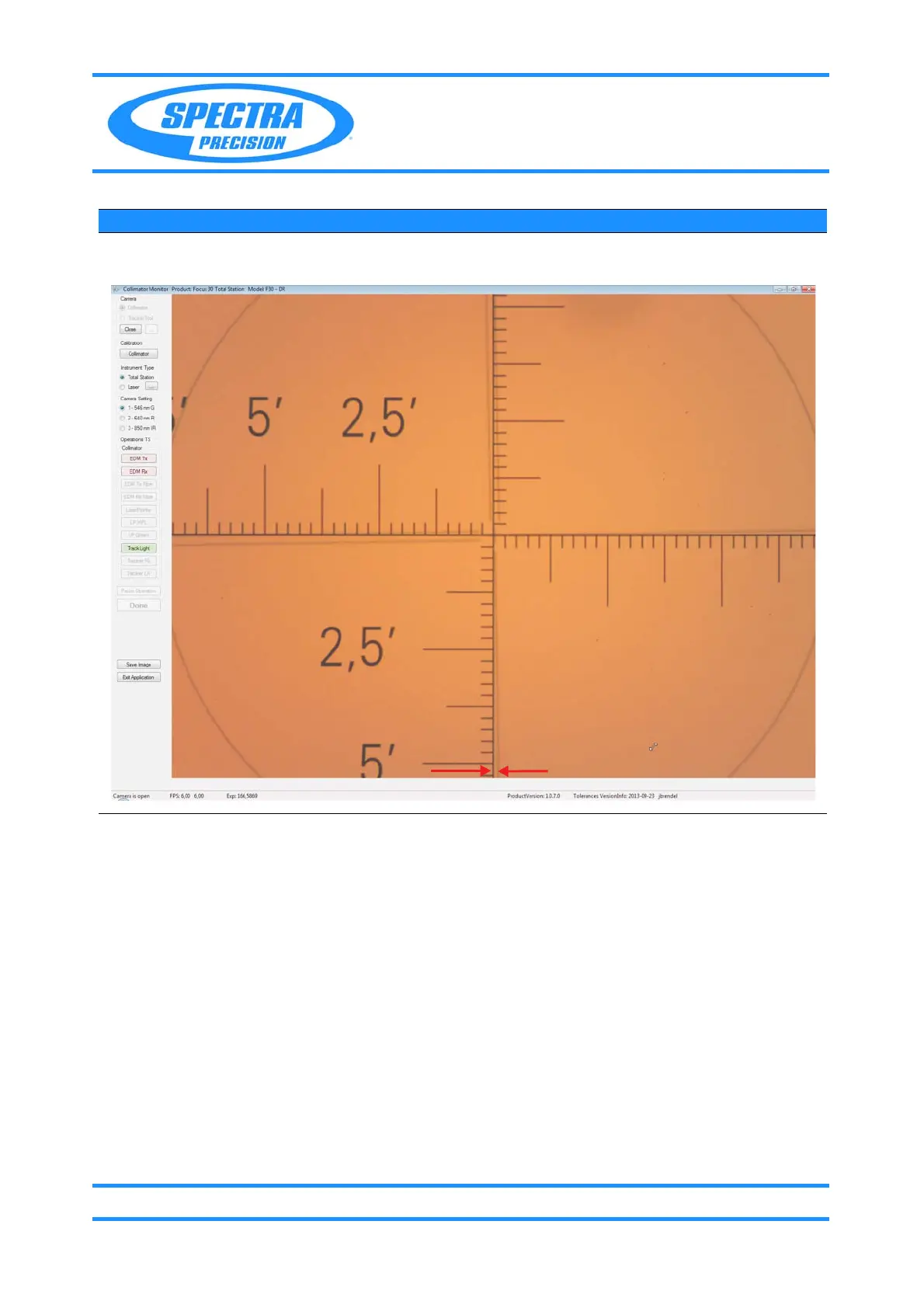

Fig. 6-15 Deviation of Reticle erection
Item Performance Action Result Notes
