Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
P/N 79000035_SM, Version 1.5 6 - 51 Focus 30/35 Service Manual
Transmitter Unit F30 adjustment / Laser pointer
Performance
Item Performance Description Result Notes
1 Mount tools. A. Mount the Eyepiece
illumination DR
(bright green LED)
on the eyepiece.
B. Remove the Cover
Front lens ring.
C. Mount the Screen
attachment with
adapter on the Front
lens.
Eyepiece
illumination DR
7027229001975

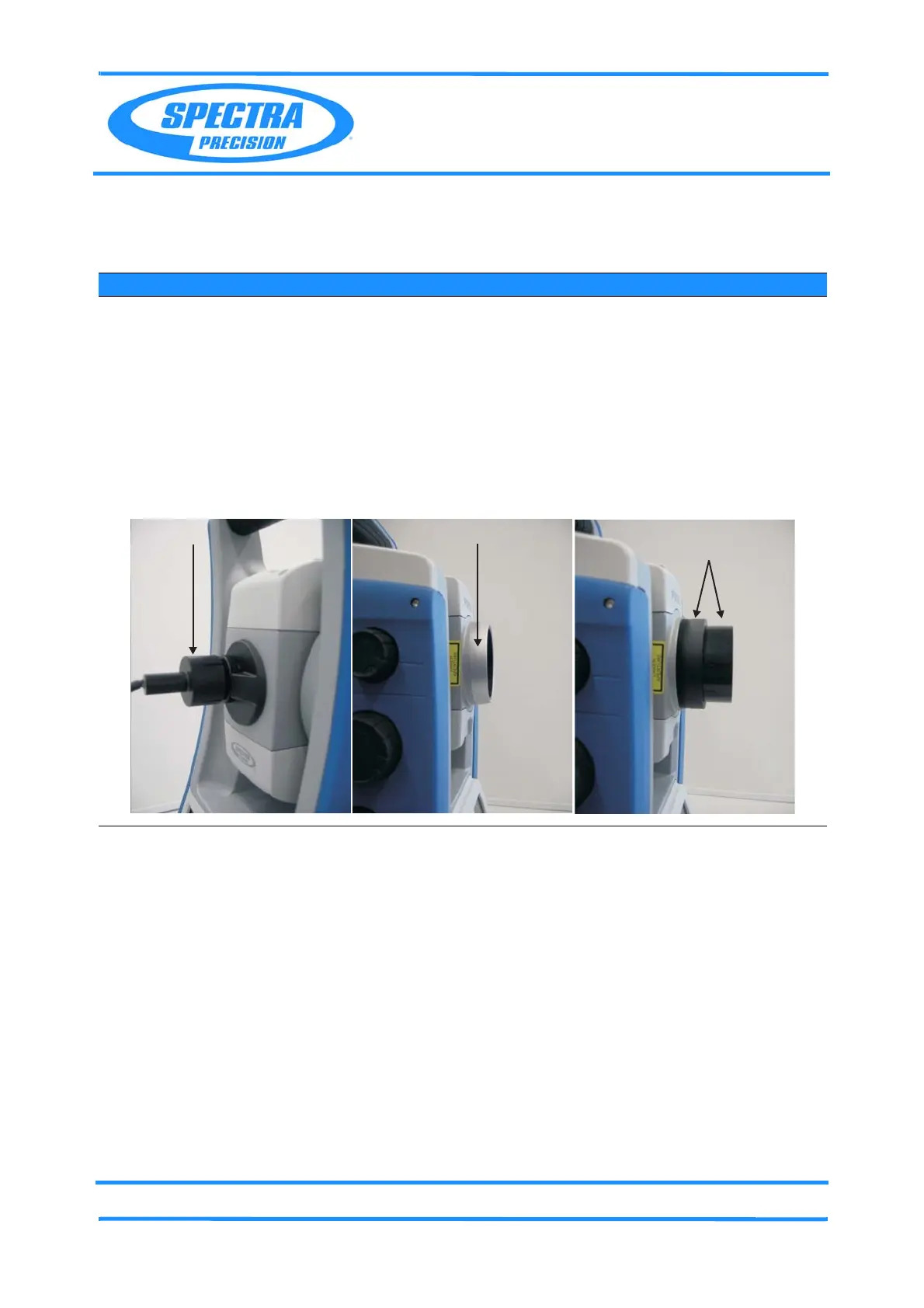

Fig. 6-36 Eyepiece illumination (bright green LED) and Screen attachment mounted
A
B
C
