Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
P/N 79000035_SM, Version 1.5 5 - 77 Focus 30/35 Service Manual
Horizontal turning unit
• Disassembly/Assembly Horizontal turning unit
Tools and equipment
Disassembly/Assembly Horizontal turning unit
Performance
Description Part number
Torx T8 bit Local tool
Torque wrench 120 Ncm T71600280
Universal slot wrench 7000000117711
Item Performance Action Result Notes
1 Remove Side cover
right.
see page 5-27
2 Remove Side cover
left.
see page 5-31
3 Remove Base part. see page 5-45
4 Remove Slip ring
board SRB.
A. Remove three
screws.
B. Disconnect cable
SRB-FCB.
C. Take off the Slip
ring board.

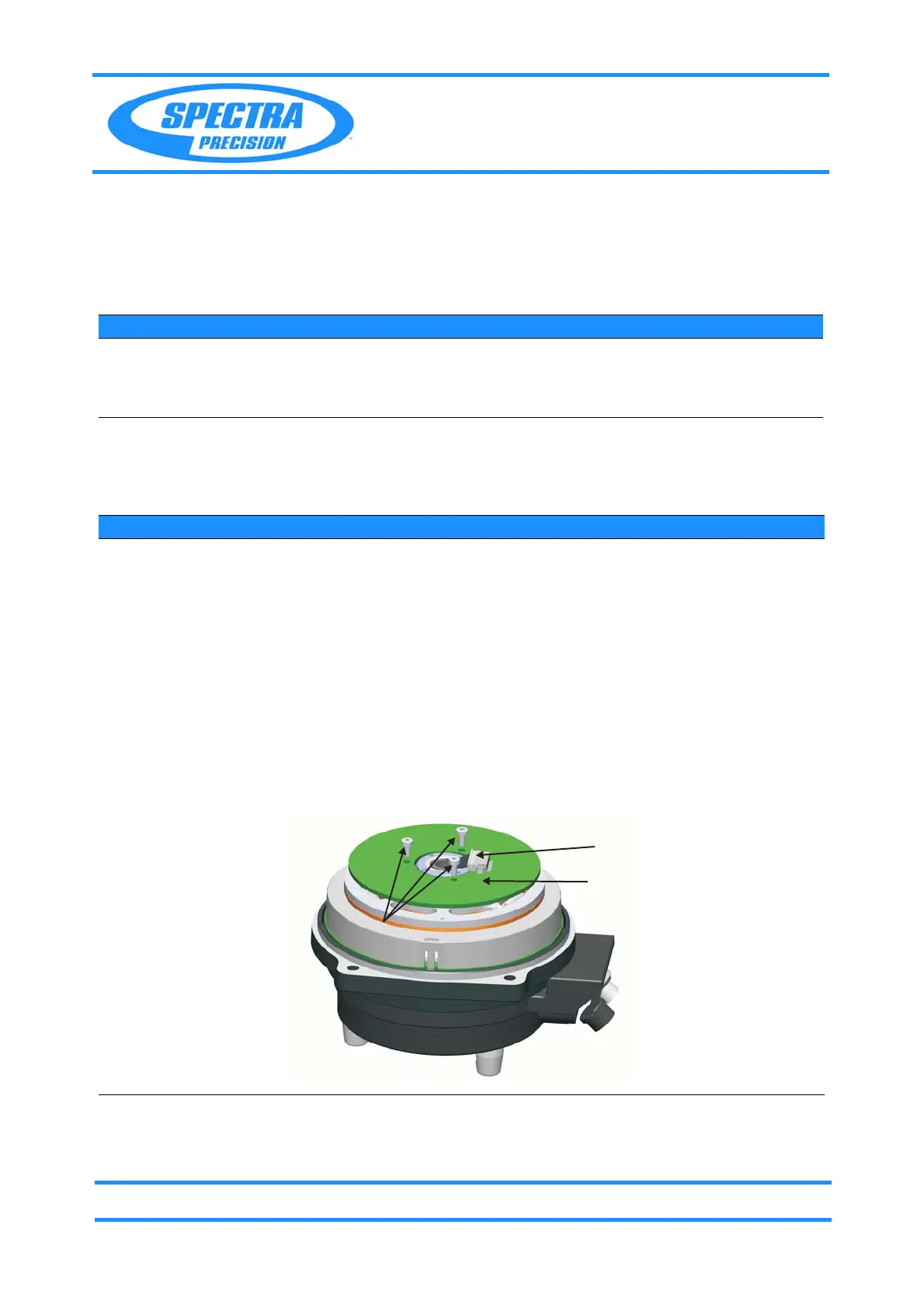

Fig. 5-58 Remove Slip ring board
A
B
C
