Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
Focus 30/35 Service Manual 6 - 98 P/N 79000035_SM, Version 1.5
Tracker collimation
Precondition:
The reticle adjustment (HA/VA collimation test) has to be done prior the Tracker collimation
as reference for the Tracker system. As Tracker collimation we are determine the Centre pixle
of the Tracker receiver camera in two faces to calibrate the Tracker system axis to the Optical
telescope axis.
Use a precise prism 62mm SECO prism at a distance of 50-100m indoor. Aiming the prism in high
accuracy under good visibile conditions is essential to determine the reference pixel. The two face
measurement is minimizing aiming errors and will be used to identify the quality of users aiming
(tolerance: X1-X2 pix/Y1-Y2 pix).
Performance

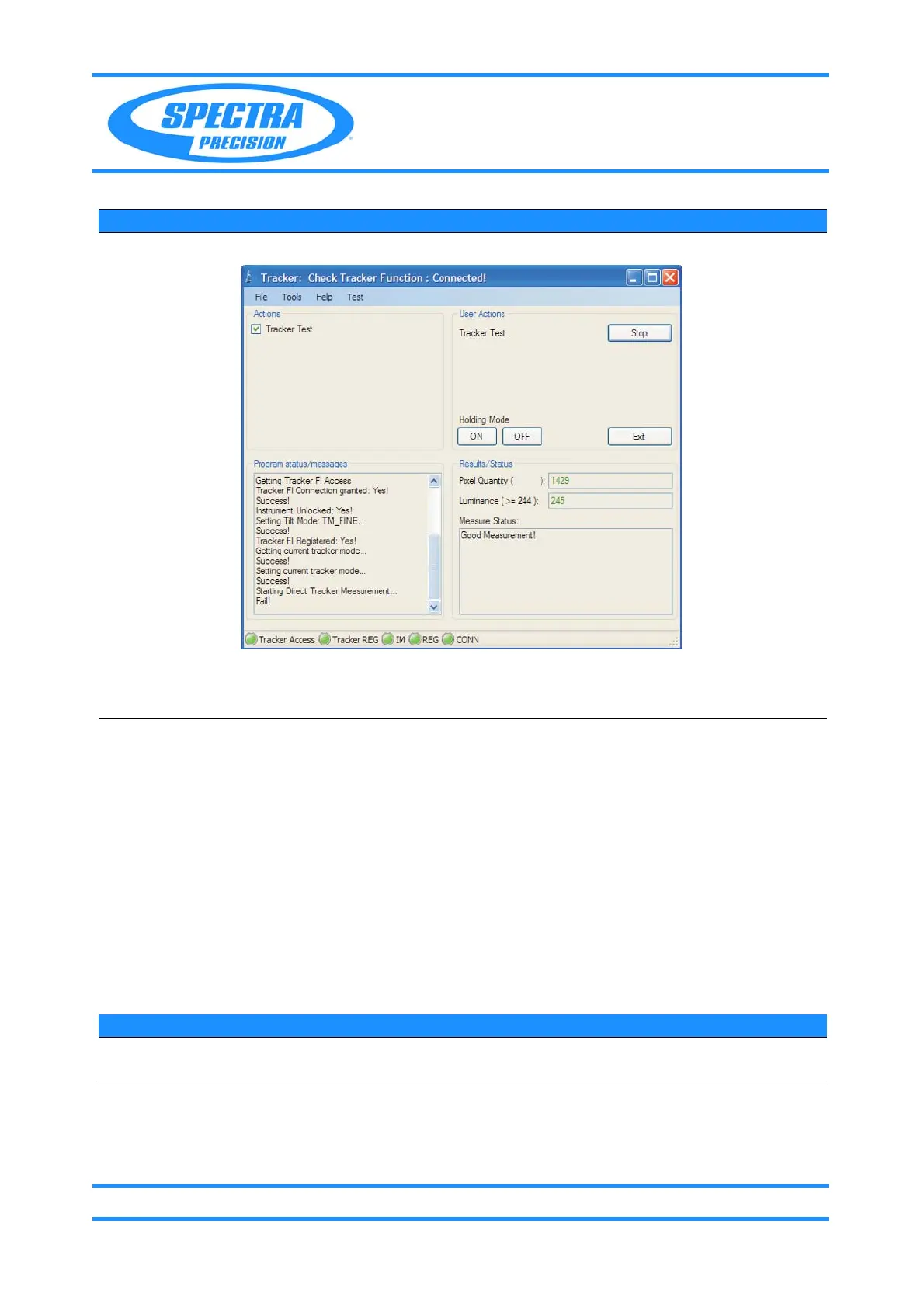

Fig. 6-81 Tracker function test
3 Exit software Push
Exit button and
perform Tracker
collimation test.
Item Performance Action Result Notes
1 Start up instrument /
PASS.
See page 7-3 how to set-
up the instrument.
Item Performance Action Result Notes
>1250
>1250
