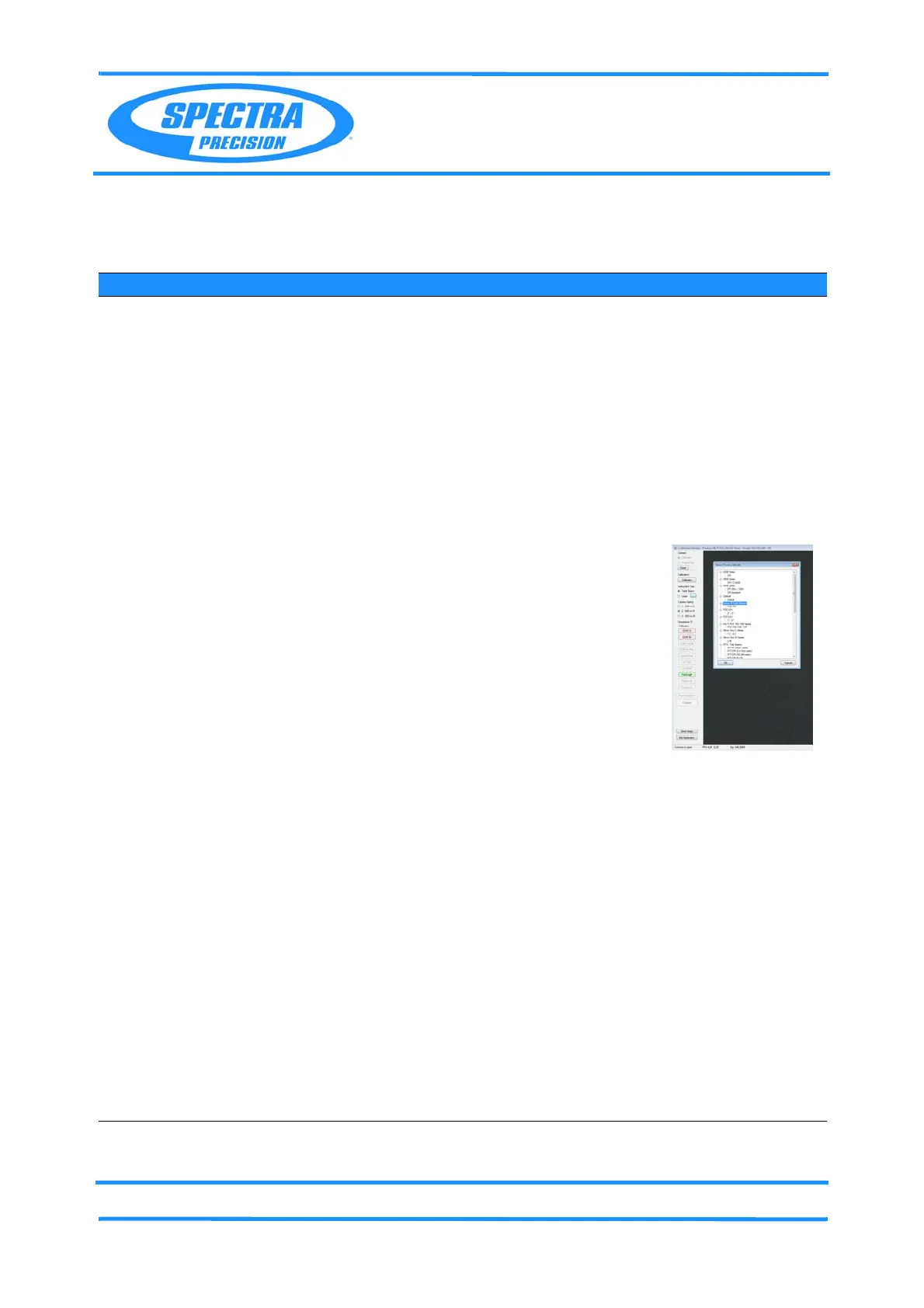

Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
P/N 79000035_SM, Version 1.5 6 - 61 Focus 30/35 Service Manual
Receiver fibre adjustment
Performance
Item Performance Action Result Notes
1 Preparing instrument
and collimator
A. Go toPreparing
instrument and
collimator
B. The Collimator grey
filter needs to be in
position 1, see Fig. 6-
44 on page 6-58
Collimator
wavelength adapter in
position 2.
2 Prepare service
software.
A. Select in PASS
Optical fibre
adjustment Tx/Rx
from EDM DR STD
(3R)
inMaintenance &
Serviceset in CM
software Camera
settings
to red light
(640nm).
B. Push in CM
Open the
camera and press
Collimator in
Calibration section.
C. Choose in CM
EDM
RX in Operation TS
section.
D. Click Holding mode
ON.
E. Put and switch on the
Reticle illumination
tool (yellow LED)
and use the servo
knobs to centre the
instruments crosshair
in the green rectangle
AOI.see Fig. 6-40 on
page 6-55
F. The inner cross will
be green if the
instrument reticle is
sharp detected.
G. Select
Switch receiver
ON/OFF
check box.
H. Click Receiver
ON
Follow the CM
instructions of
the program to
calibrate the
screen pattern.
press the
Done
button to reach
the next action.
The blue
measurement
frame appears
with a green
rectangle AOI.
Check the
focusing of the
reticle and
sufficent light, if
the green cross
is intermitting
available only.
The receiver
fibre aperture is
visible.
The Collimator
Monitor software
(CM) starts
automatically.
Refer also to the
Software user guide
chapter in the Trimble
Collimator Bench
manual on:
Collimator Bench
manual
The CM Software
shows the values of
Delta X/Y deviation
and sharpness of the
receiver spot.
