Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
Focus 30/35 Service Manual 6 - 62 P/N 79000035_SM, Version 1.5

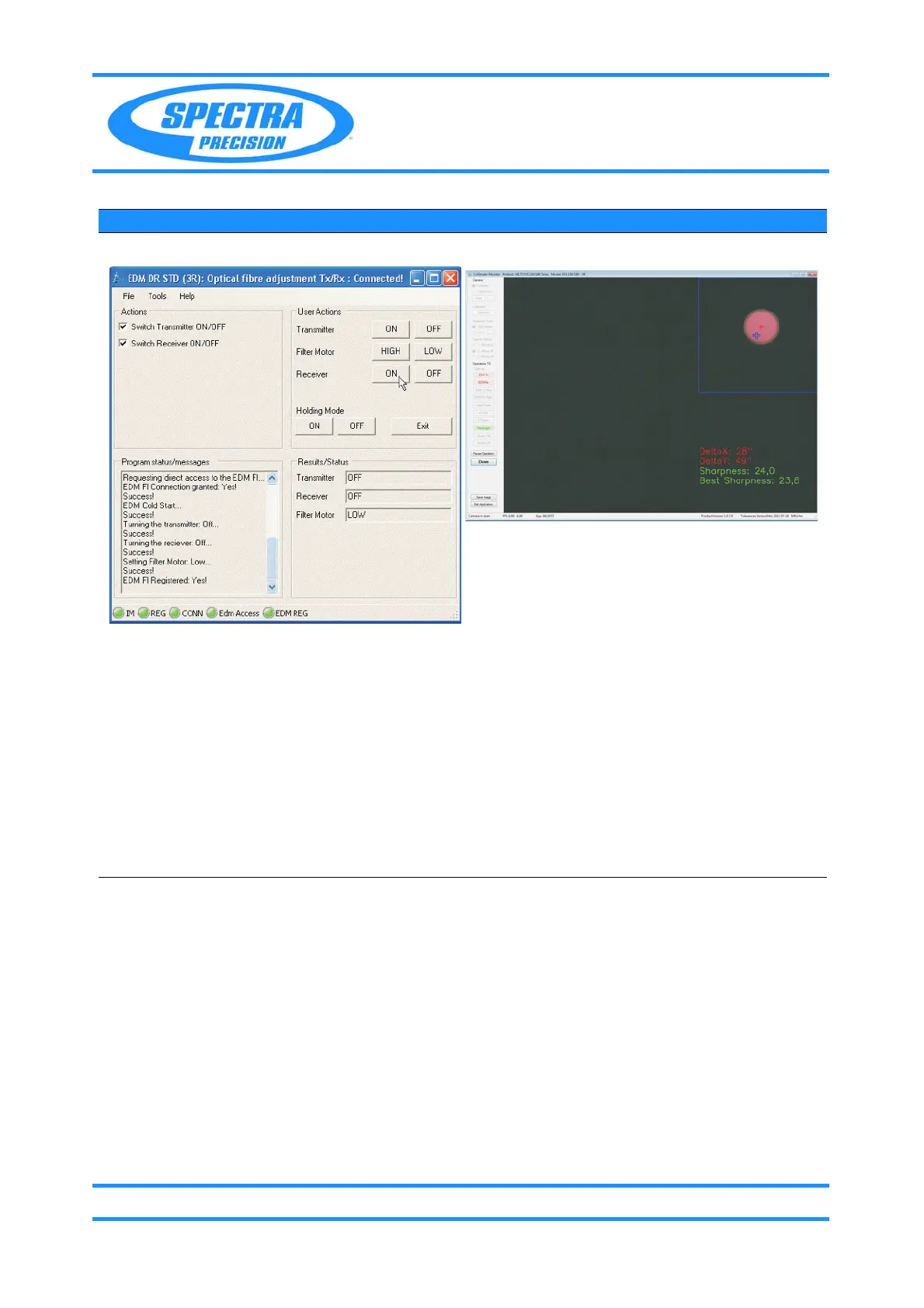

Fig. 6-47 Optical fibre adjustment
3 Focus Receiver fibre. A. Loosen the clamp
screw.
B. Move the receiver
fibre in or out until
the spot is sharp.
C. Tight the screw
carefuly and lock the
screw with screw
lacquer.
Tolerance:
Sharpness <30
Deviation to
Best Sharpness
<5
Torque value:
3-5 Ncm/0,26-
0,44 lbfin
1,3 mm ball allen key.
The CM software
shows the sharpness
value in green if it’s
in tolerance.
Glue MS 1855
