Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
P/N 79000035_SM, Version 1.5 5 - 65 Focus 30/35 Service Manual
Control unit F2
• Exchange Control unit F2
• Disassembly / Assembly Control unit F2
Tools and equipment
Exchange Control unit F2
Performance
Description Part number
Torx T8 bit Local tool
Torque wrench 120 Ncm T71600280
Item Performance Action Result Notes
1 Remove Side cover
right.
see page 5-27
2 Remove Optical
plummet.
see page 5-68
3 Exchange Control
unit F2.
A. Remove two
screws.
B. Unhook and
remove the Control
unit F2.
C. Unplug the Cable
F2D.
D. Replace Gasket CU
F2.
E. Mount the parts in
reverse order.
60Ncm/5,31lbfn

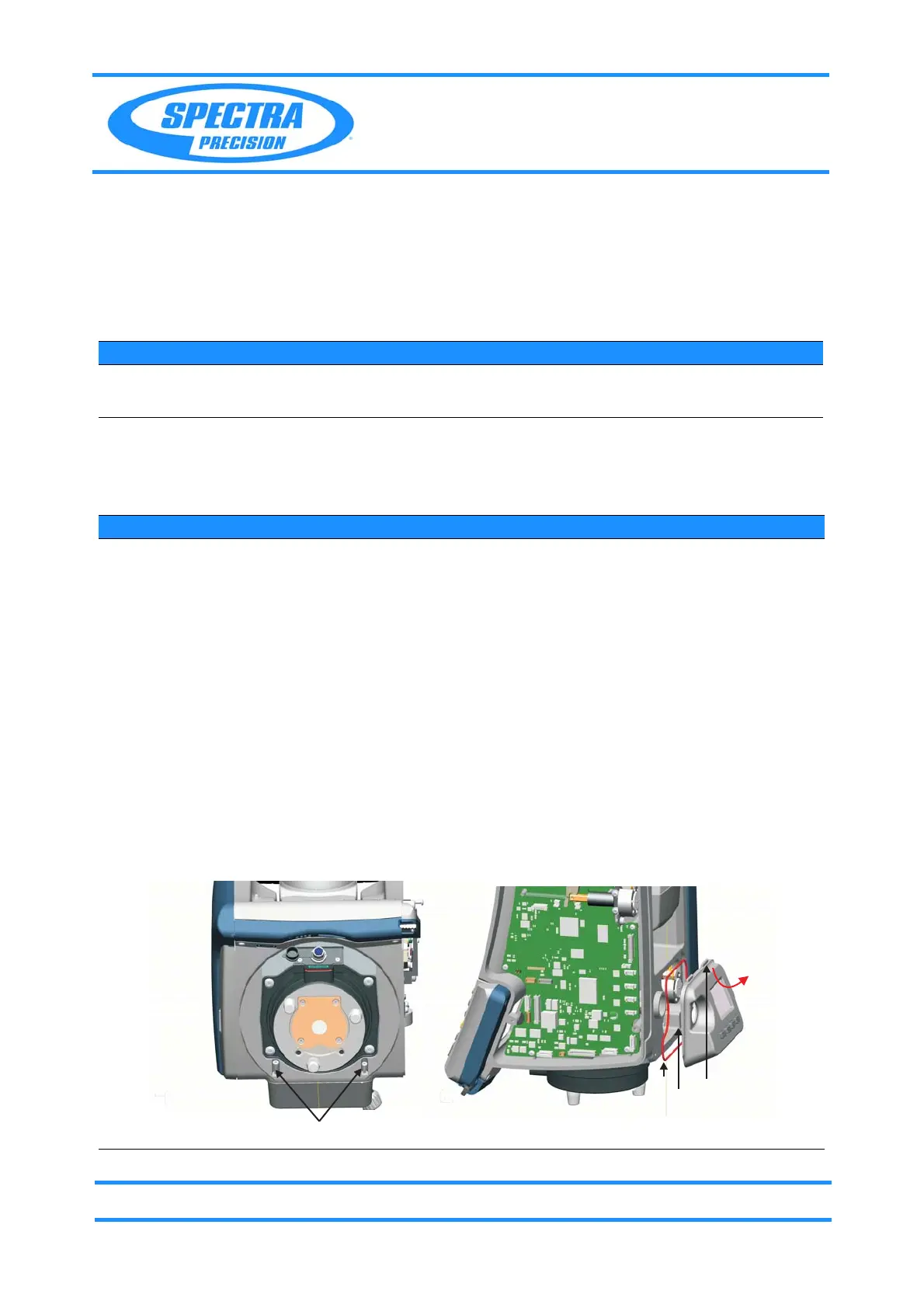

Fig. 5-50 Exchange Control unit F2
B
A
C
D
