Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
P/N 79000035_SM, Version 1.5 5 - 21 Focus 30/35 Service Manual
Exchange EDM F35 High Precision 1mm
After exchange the EDM F35 High Precision 1mm, you have to determine the offset and to verify the
accuracy with special calibrated baselines, see“Focus 35 EDM 1mm - Verify the 1mm accuracy” on
page 6-85.

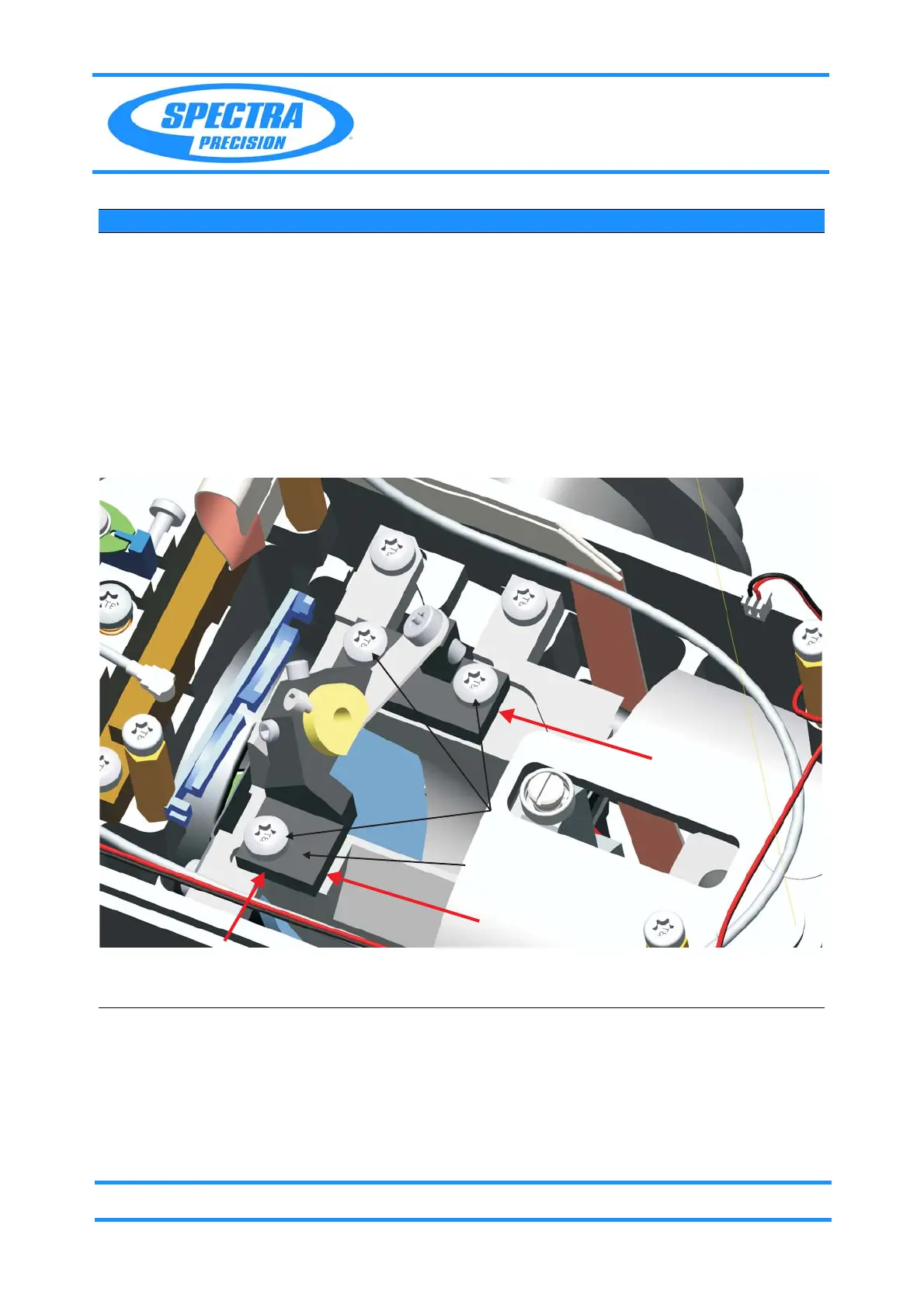

3 Exchange Holder
receiver fibre
A. Unscrew three
screws.
B. Take out the
Holder.
C. Remount and shift
the Holder in
direction of the
three red arrows
until the stops.
D. Tighten the three
screws.
50Ncm/4,42lbfin
Torx T8
Torque wrench
Torx T8
Fig. 5-17 Exchange Holder receiver fibre
4 Adjustment and
calibration
What to do after
replacement?
Item Performance Action Result Notes
A/D
B
