Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
Focus 30/35 Service Manual 5 - 66 P/N 79000035_SM, Version 1.5
Disassembly / Assembly Control unit F2
Performance
4 Adjustment and
calibration
What to do after
replacement?
Item Performance Action Result Notes
1 Disassemble
Control unit F2.
A. Unscrew 6x EJOT
screws.
B. Remove Keyboard
F2.
C. Remove Keypad
F2.
D. Remove Gasket CU
F2.
50Ncm/4,4lbfn
Not available as
single sparepart.
Use torque wrench
Torx T8

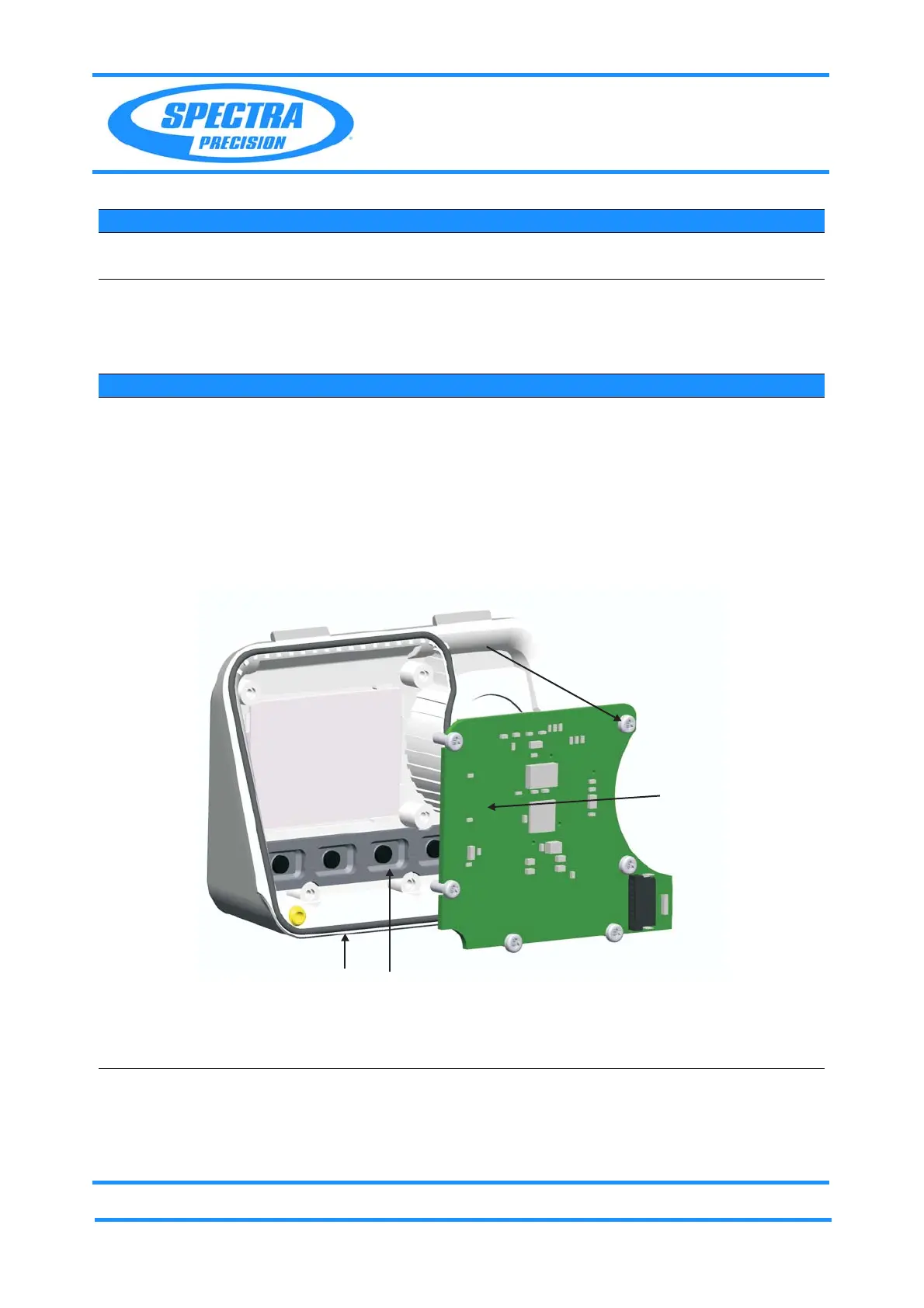

Fig. 5-51 Disassemble/ Assemble Control unit F2
2 Assemble Control
unit F2.
A. Exchange faulty
parts
B. Remount it in
reverse order.
Item Performance Action Result Notes
A(6x)
B
C
D
