Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
P/N 79000035_SM, Version 1.5 6 - 91 Focus 30/35 Service Manual
Tracker receiver unit alignment
Performance

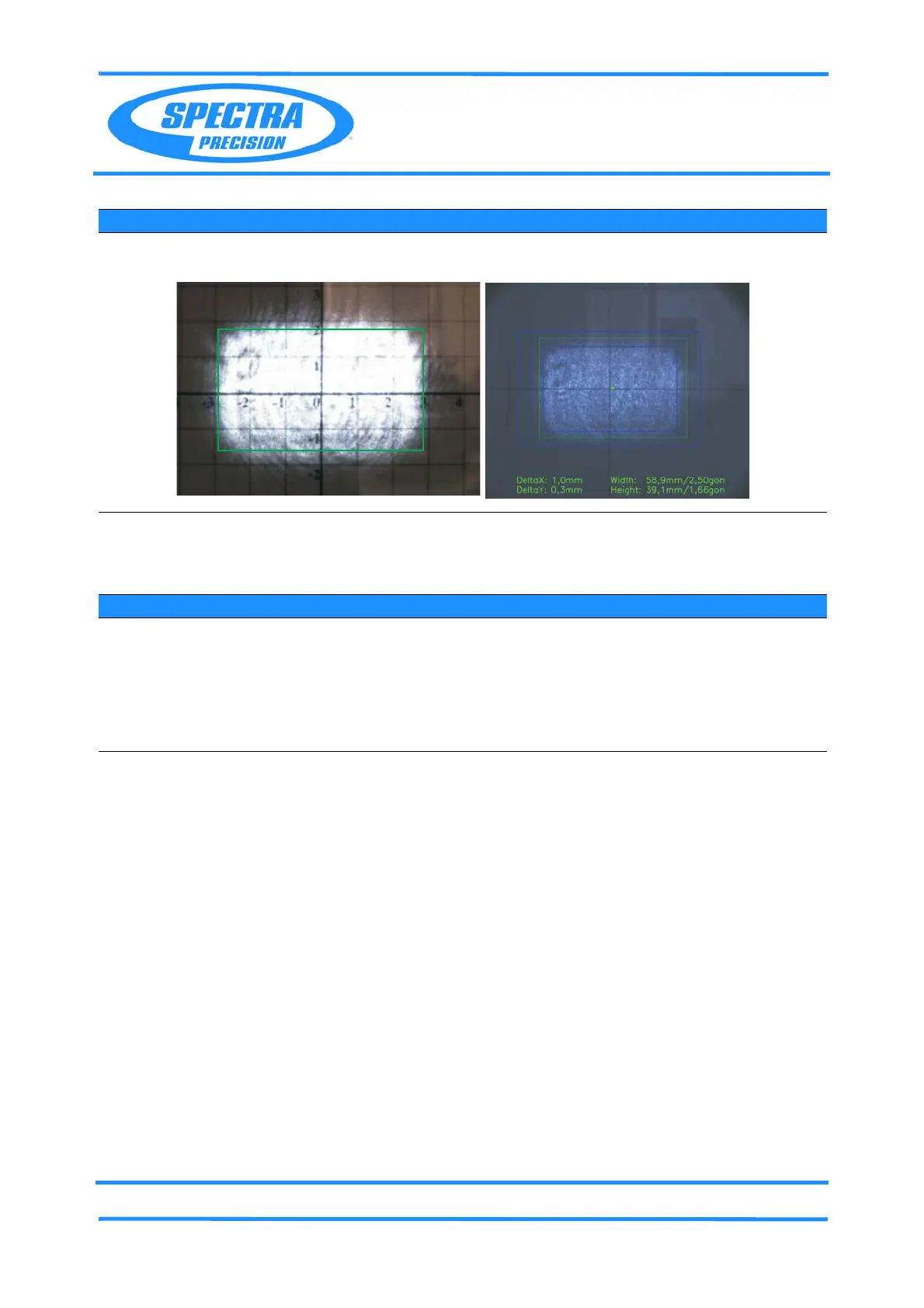

Fig. 6-76 Correct focused and positioned Tracker transmitter; previous uEye CollimatorMonitor and
new CollimatorMonitor software with new Tracker Transmitter screen pattern
Item Performance Action Result Notes
1 Prepair collimator. A. Switch Collimator
illumination to white
position, see Fig. 6-
77 on page 6-92 .
B. Switch Collimator
wavelength adapter
to Pos. 3.
The Collimator
is prepared to
send the cross
hair as Infrared
target.
