Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
Focus 30/35 Service Manual 6 - 90 P/N 79000035_SM, Version 1.5

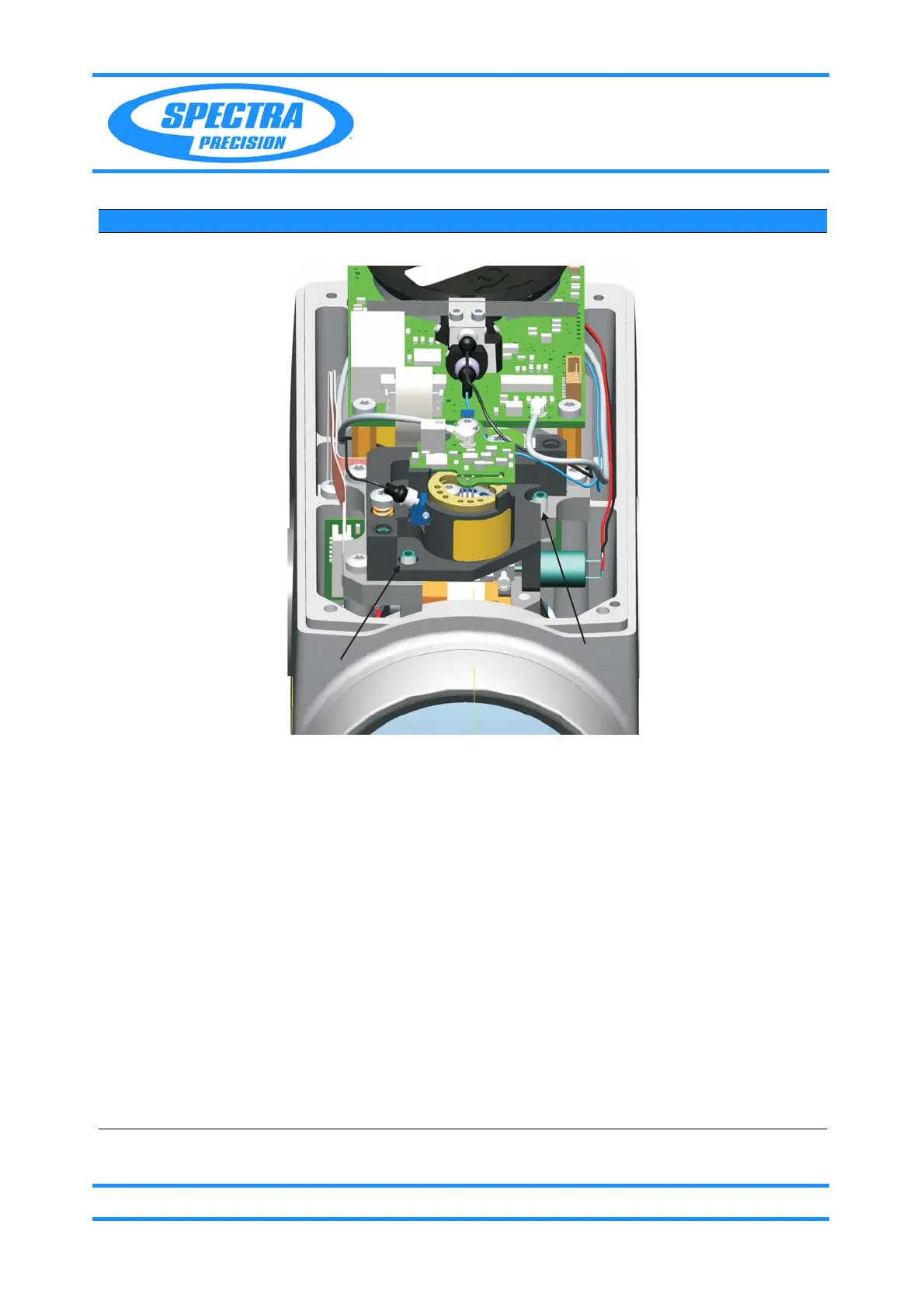

Fig. 6-75 Align Tracker transmitter
6 Check the Tracker
transmitter divergence
A. Measure with the
graduation on the
screen the horizontal
dimension.
B. Measure with the
graduation on the
screen the vertical
dimension.
C. Verify the correct
spot divergency
according
specification and
given examples.
D. If the Tracker
transmitter
divergence is not
according specs,
replace the complete
Transmitter unit F30.
Specification:
Horizontal 2,65gon x Vertical 1,66gon
Tolerance ±(0,4 x 0,25)gon
The Collimator Monitor software shows
the width and height of the spot size in
green if in tolerance.
Examples:
Tool at distance of 1,5 m / 4,92 ft):
Spot divergence
62,5mm x 39mm ±(9,4mm x 5,9mm)
2,46in x 1,53in ±(0,37in x 0,23in)
Tool at distance of 1,2 m / 3,94 ft:
Spot divergence
50mm x 31,3mm ±(7,6mm x 4,75mm)
1,97in x 1,23in ±(0,3in x 0,18in)
Item Performance Action Result Notes
C
D
