Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
P/N 79000035_SM, Version 1.5 6 - 89 Focus 30/35 Service Manual
5 Align the Tracker
transmitter

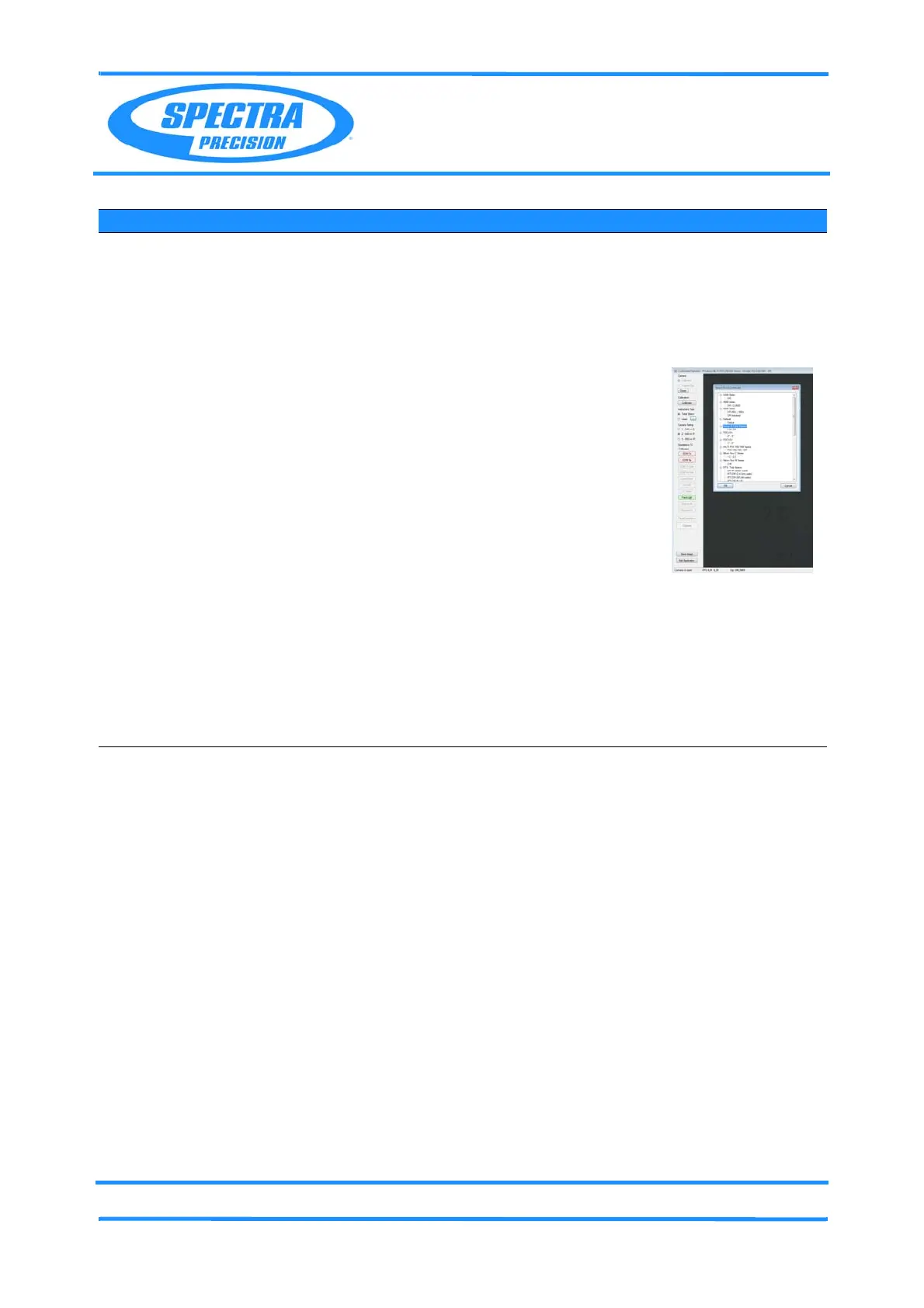

A. Select in CM Tracker
Tool and push Open
the camera.
B. Choose
Tracker Tx in
Operation TS
section.
C. Select in PASS
Adjust Tracker
Transmitter
checkbox
and click Tracker
Transmitter
ON.
D. Adjust the deviation
to the center of the
screen in vertical
direction.
E. Adjust the deviation
to the center of the
screen in horizontal
direction, see Fig. 6-
75 on page 6-90 .
Set up the
Tracker tool ac-
cording the
manual, press
the
Done button
to reach the next
action.
The Tracker
transmitter spot
will appear on
monitor screen,
see Fig. 6-73 on
page 6-87 .
Tolerance:
±1mm in
DeltaX/Y
direction.
The Collimator
Monitor (CM)
software shows
green values,
when tolerance
is reached.
The Collimator
Monitor (CM) has
already started with
configured
instrument type.
Refer also to the
Software user guide
chapter in the Trimble
Collimator Bench
manual on:
Collimator Bench
manual
Item Performance Action Result Notes
