Disassembly/Assembly Transmitter unit
Performance
Note: The Reference fiber bender clip is cliped on the two hexagon bolts. Be careful with the
fibres, pay attention of the bending radius (> 10mm), the given length and the laying.

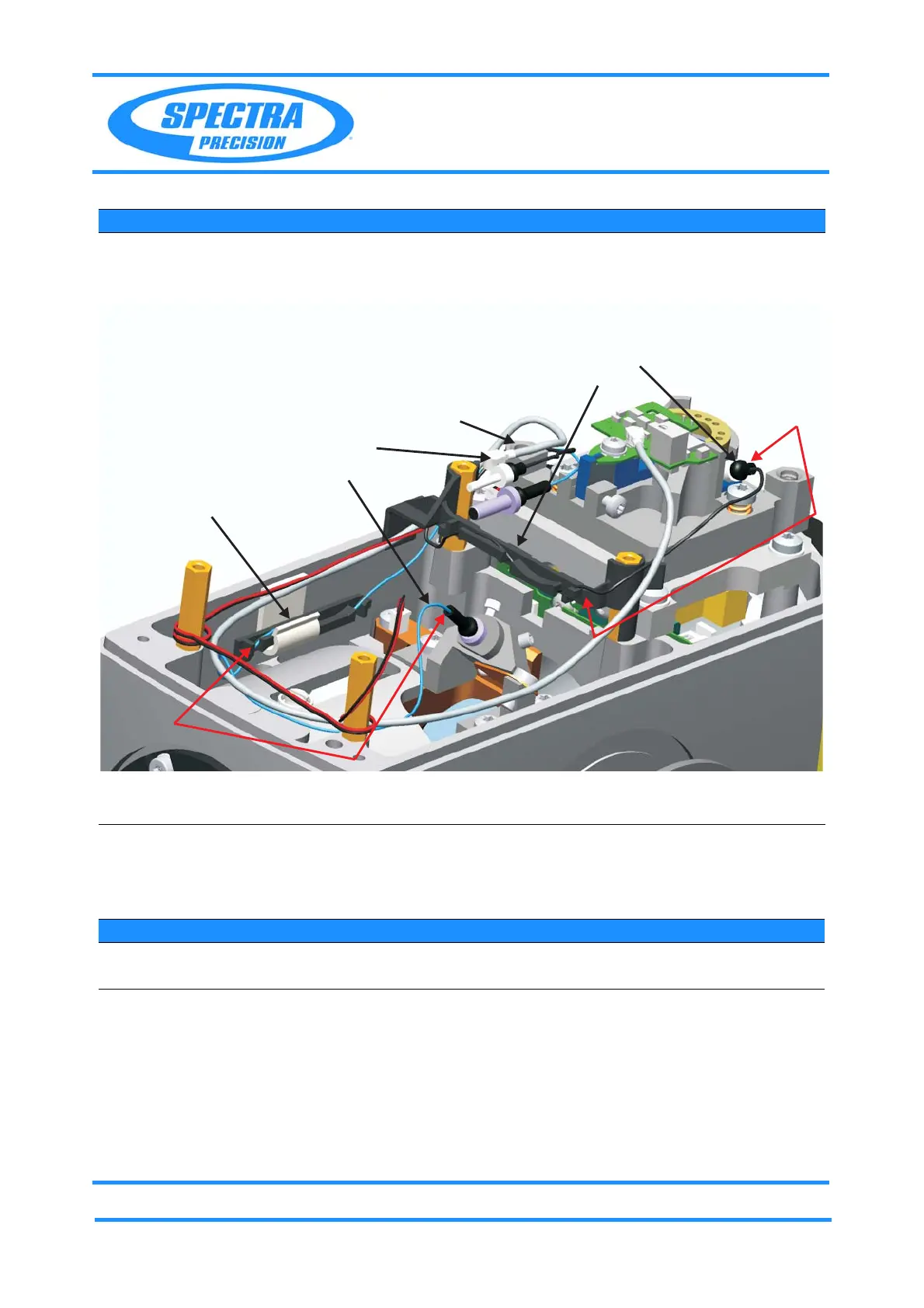

Fig. 5-14 Laying of the fibres - with new fibre bender clips
4 Adjustment and
calibration.
What to do after
replacement?
Item Performance Action Result Notes
1 Remove Distance
unit cover.
see page 5-2
Item Performance Action Result Notes
Reference fibre
with fibre bender clip
Coaxcable
Receiver fibre
with fibre holder and clip
Fibre length = 60mm
Fibre length = 120mm
Adjustment screw
