Chapter 3

Theory of Operation

P/N 79000035_SM, Version 1.5 3 - 25 Focus 30/35 Service Manual

Vertical and horizontal angle unit

Location of the angle units

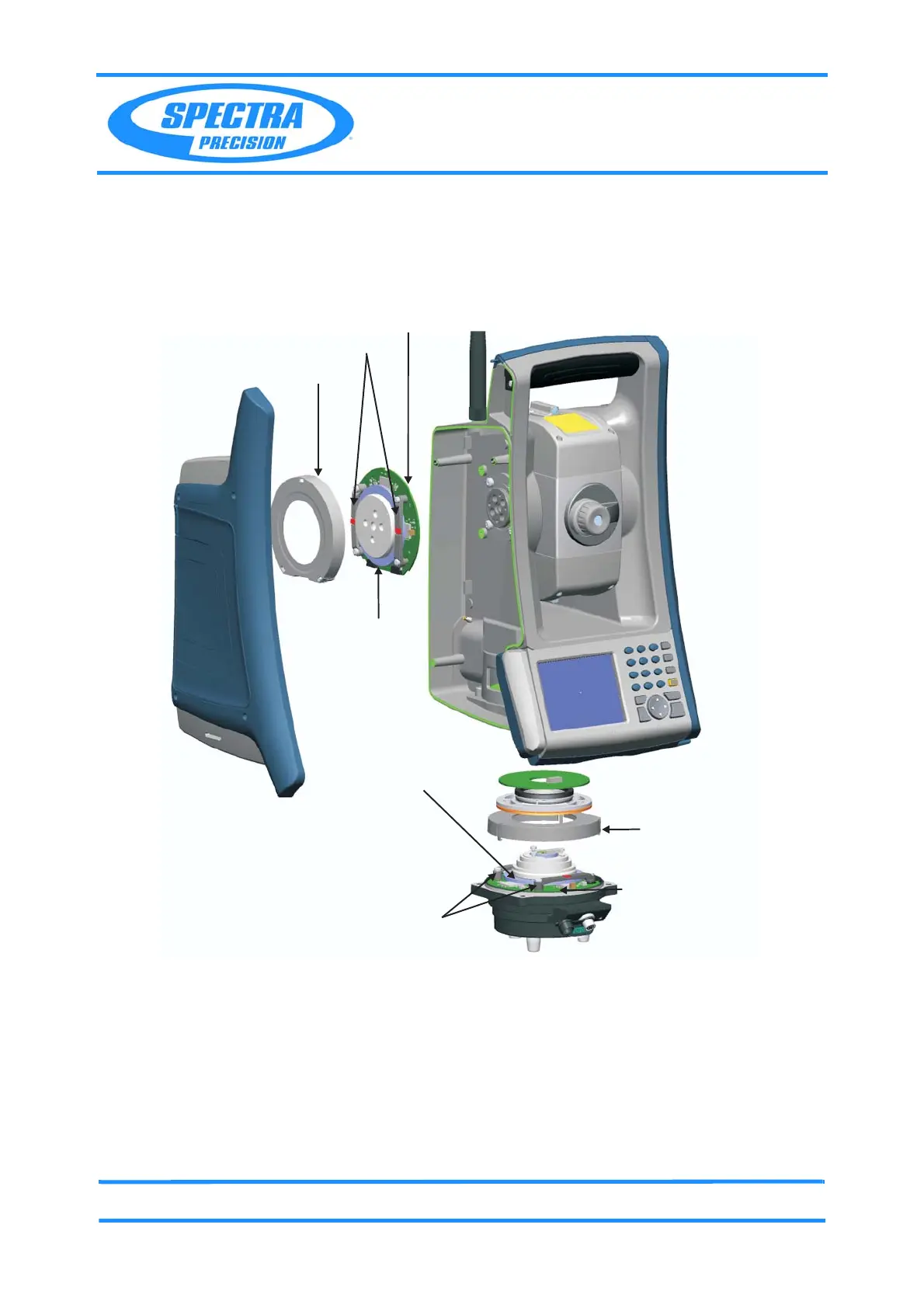

Fig. 3-23 Location of angle unit

Technical specification

• Diametral reading

• Accuracy = 2" (6cc)

• Resolution = 0,3" (1cc)

• Angle reading 200 Hz

Glass circle

vertical

Glass circle

horizontal

Angle control board

Illumination bridge

Housing
