Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
P/N 79000035_SM, Version 1.5 5 - 27 Focus 30/35 Service Manual
Side cover right (Servos)
• Side cover right (Servos) replacement
• Servo knob board-SKB and Trigger key replacement
• Board BT Blue Tooth replacement
Tools and equipment
Side cover right (Servos) replacement
Performance
Description Part number
Torx T8 bit Local tool
Torque wrench 120 Ncm T71600280
Item Performance Action Result Notes
1 Remove Side cover
right.
A. Loosen the four
screws.
B. Remove the cover
and disconnect the
two cables.
C. Take off the four O-
rings.
D. Replace the sealing
ring.
E. Replace the cover
and mount the parts
in reverse order.
F. Tighten the four
screws.
Be careful with the
red cable, avoid to
sqeeze it by the fine
drive.
Don’t drop down
the four black O-
rings into the
instrument.

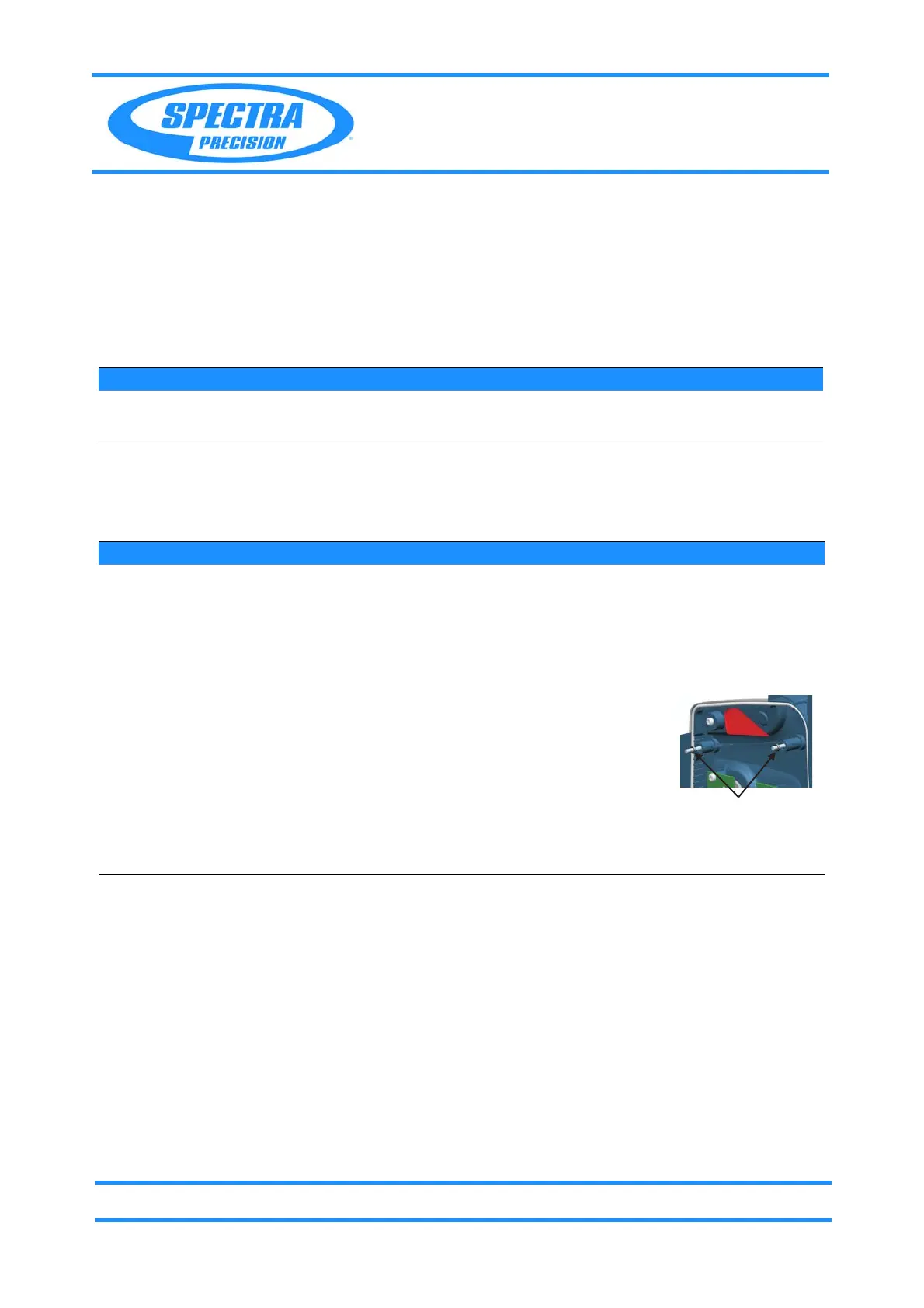

Fig. 5-21 Servo side
cover O-ring
35 Ncm/3,1 lbfin;
4x O-ring
