Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
Focus 30/35 Service Manual 5 - 104 P/N 79000035_SM, Version 1.5
Disassembly / assembly divided Coarse drive lever arm
Performance
Item Performance Action Result Notes
1 Disassembly Coarse
drive lever arm.
A. Unhook the
extension spring.
B. Unscrew the two
screws of the
divided Coarse
drive lever.
C. Unhook the
Coarse drive lever
arm from the Fine
drive pin of the
spindle and take
out the lever arm.
Move the Fine drive
in the inner position
(red arrow).
Torx T8
60 Ncm/5,31bfn
At this point it is
possible to exchange
the MCB board
without a complete
disassembling of the
Vertical drive.

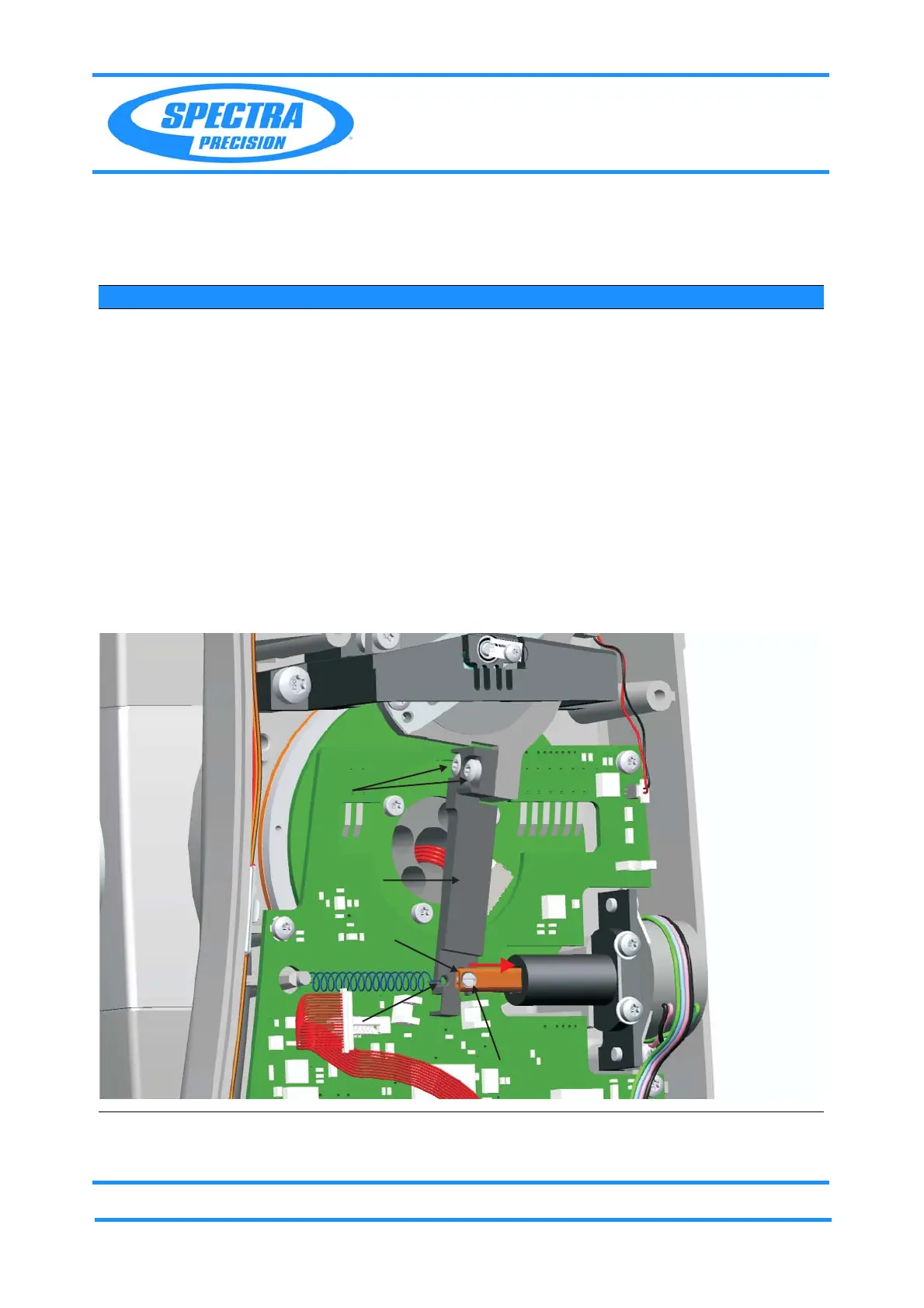

Fig. 5-80 Disassembly / assembly Coarse drive lever arm
A
B
Lever arm
Fine drive pin
C
