Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
P/N 79000035_SM, Version 1.5 6 - 67 Focus 30/35 Service Manual
Verify Reference fibre, signals and distance measurement
Check Reference fibre signal, crosstalk, signal/noise ratio, and and distance measurement.
Performance

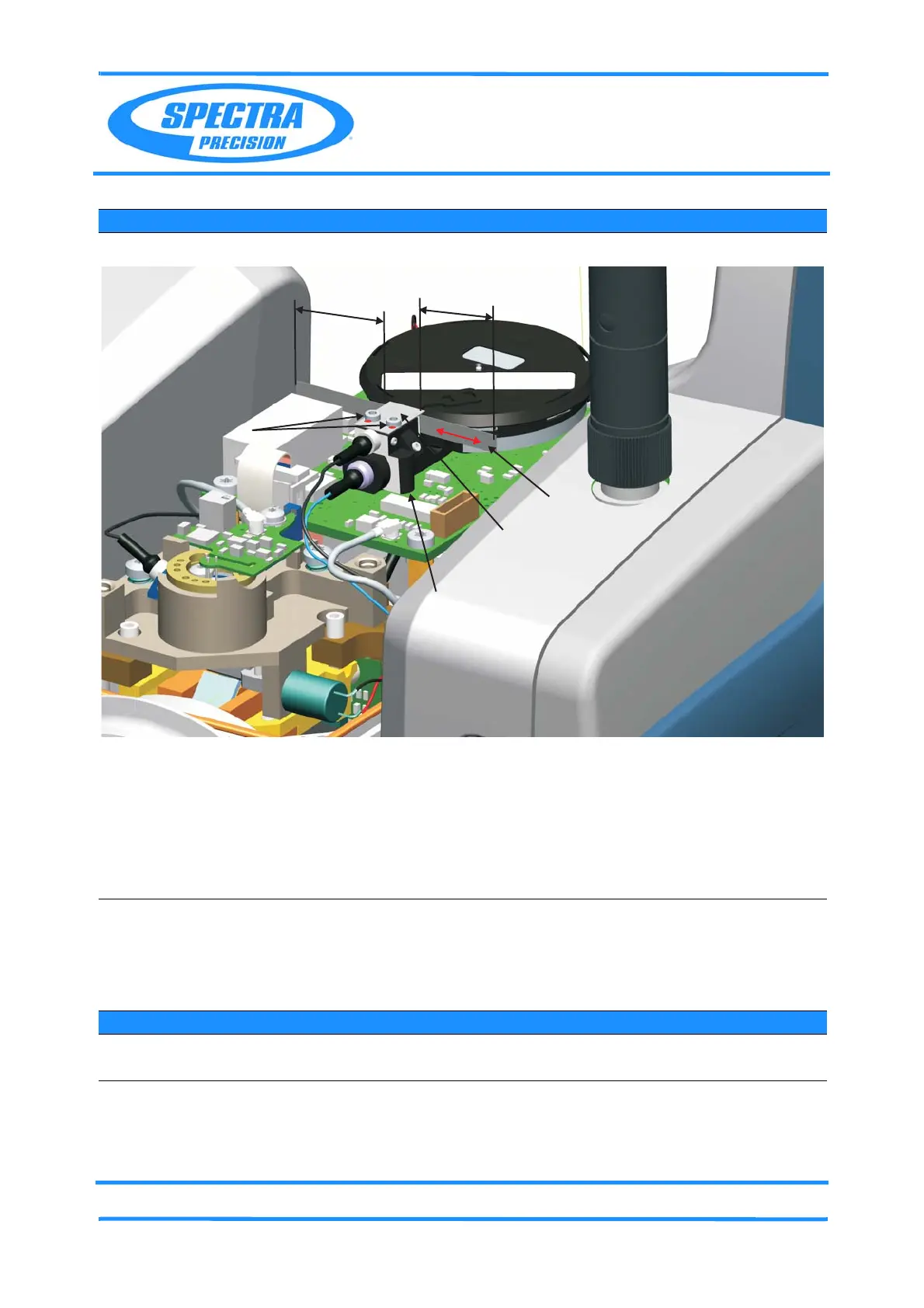

Fig. 6-53 Adjustment Reference fibre
7 Exit software. A. Remove Scattered
light device with
adapter ring.
B. Click
Exit.
8 Perform offset
determination.
See “EDM offset
determination” on page 6-
78..
Item Performance Action Result Notes
1 Prepare instrument Mount the instrument on
the Collimator bench.
Item Performance Description Result Notes
Filter foil
Clampplate
A/C/E
B
C
Coupling housing
20mm
20mm
