Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
Focus 30/35 Service Manual 6 - 68 P/N 79000035_SM, Version 1.5
2 Start service software. Select Check Reference
fibre/signals from EDM DR
STD (3R)
in Maintenance &
Service
.

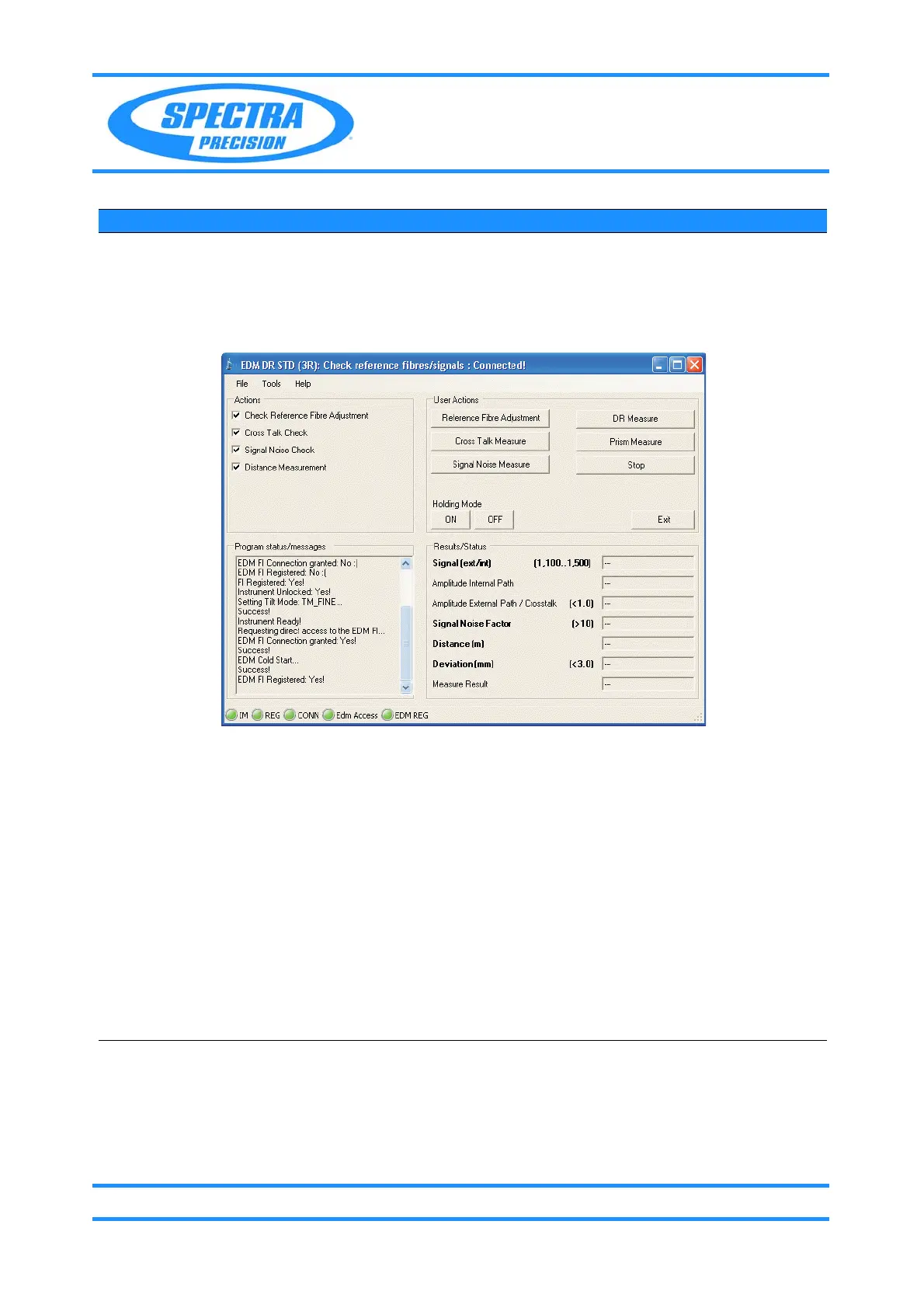

Fig. 6-54 Check reference fibre/signals
4 Check Reference fibre
adjustment
A. Select Check
reference fibre
adjustment check
box.
B. Click Holding mode
ON
C. Mount Adapter
Focus 30 and
Scattered light device
on the front lens, see
Fig. 6-51 on page 6-
65 .
D. Click
Reference Fibre
adjustment
and check
the Signal ext/int.
E. Click
Stop to finish.
Tolerance:
Signal (ext/int)
1,10-1,50
