Spectra Precision Focus 30 Service Manual

Chapter 3
Theory of Operation
P/N 79000035_SM, Version 1.5 3 - 57 Focus 30/35 Service Manual
Overview electronic boards

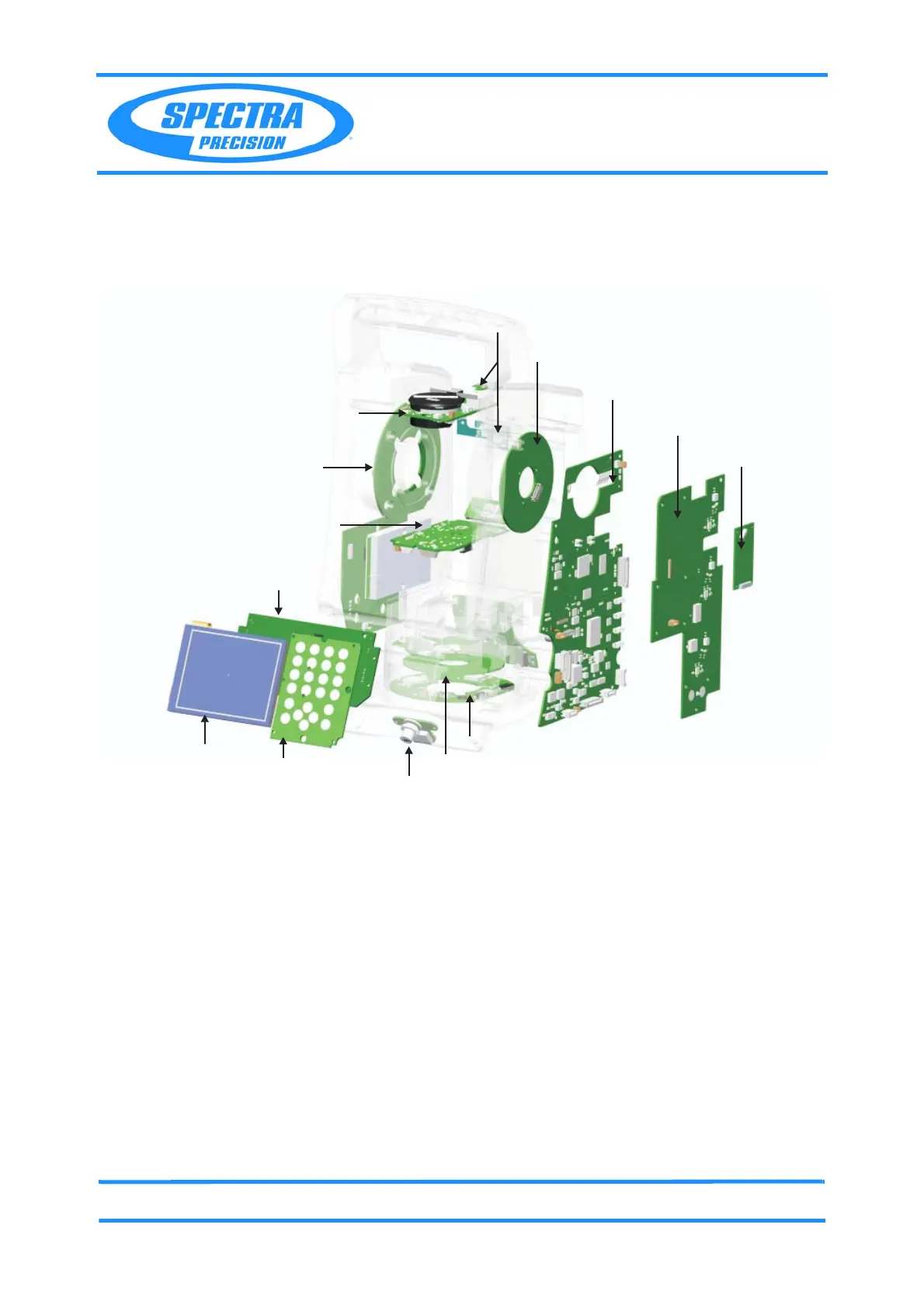

Fig. 3-53 Overview electronic boards face 1
Main control board-MCB
Servo knob board-SKB
Blue tooth-BT
Slip ring board-SRB
Foot connector board-FCB
Key pad board-F1K
TFT touch panel
Application
control board-ACB
EDM Receiver board
Tracker servo focus board-TSF
Angle control Hz-ACB
Angle control V-ACB
Slip ring board-SRB
Transmitter with
Laser driver 3R and
Tracker transmitter
