Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
P/N 79000035_SM, Version 1.5 5 - 109 Focus 30/35 Service Manual

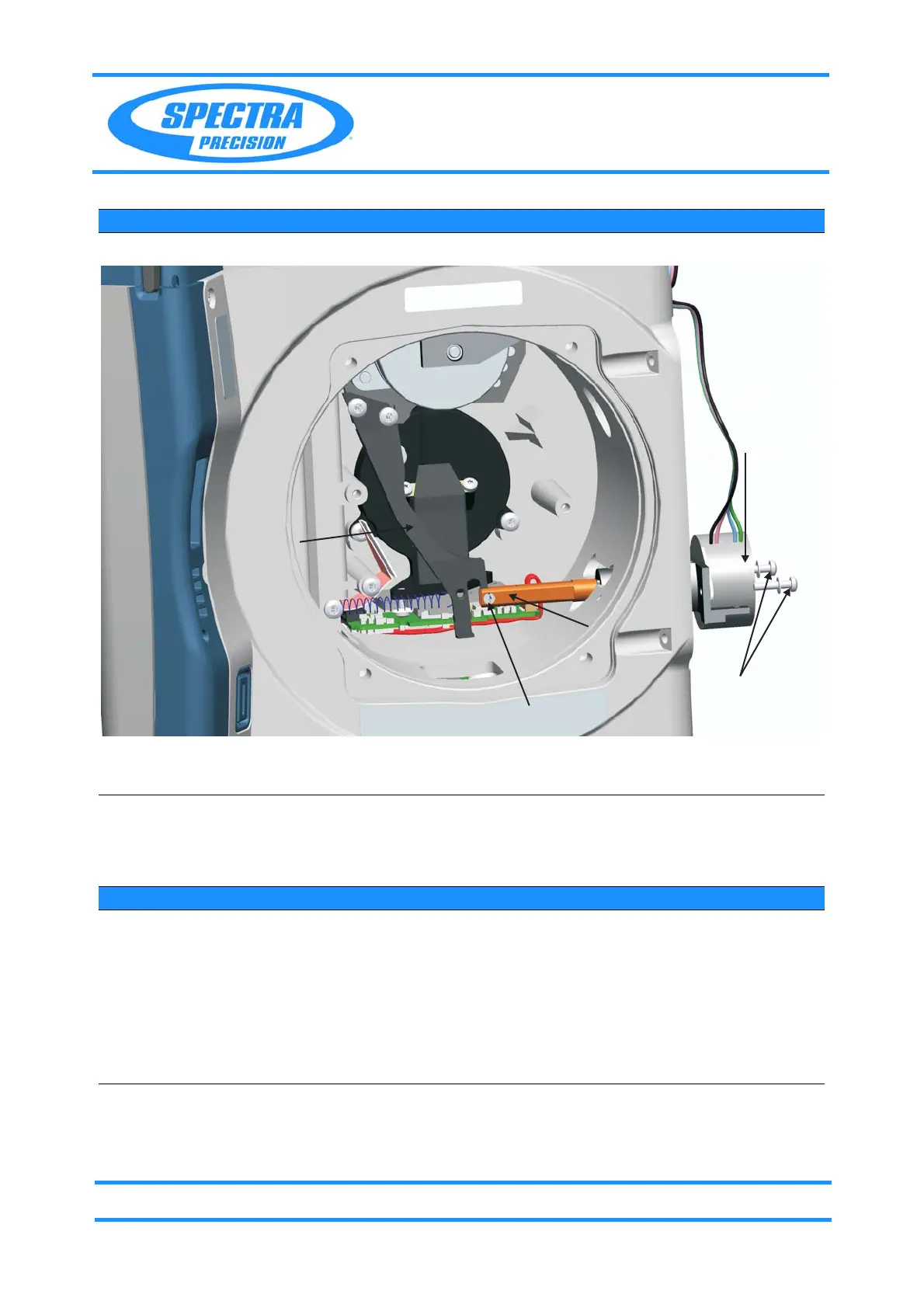

Disassembly / assembly Coarse drive lever arm
Performance
Fig. 5-82 Disassembly /assembly Fine drive Hz
3 Assembly Fine
drive Hz
Mount the parts in
reverse order.
Item Performance Action Result Notes
1 Preparation for
exchanging the
compensator.
Drive the Fine drive Hz
to the
In position of the
Fine drive stops (red
arrow), see page 6-133
It is easier in case
you will only
exchange the
compensator.
2 Prepare the
instrument.
Prepare the instrument
according item (1-8) see
page 5-108
Put the Instrument
in the Holder
Instrument F30
79297035
Item Performance Action Result Notes
B
A
C
Leve arm
Fine drive pin
