Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
P/N 79000035_SM, Version 1.5 5 - 111 Focus 30/35 Service Manual
Disassembly / assembly adjustable Coarse drive lever arm
Performance

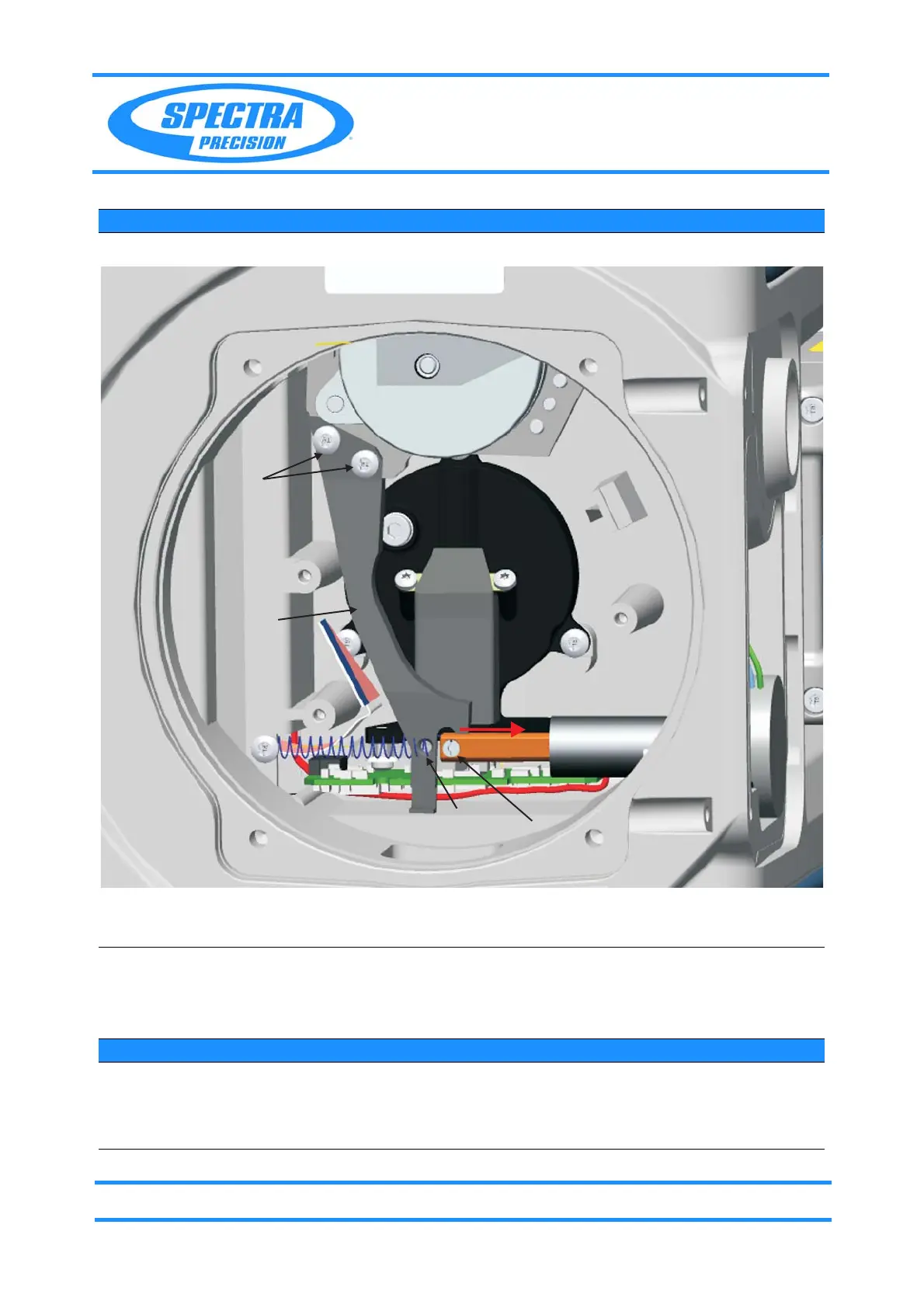

Fig. 5-83 Disassembly Coarse drive lever arm
4 Assembly Coarse
drive lever
Mount the parts in
reverse order.
Item Performance Action Result Notes
1 Preparation for
exchanging the
compensator.
Drive the Fine drive Hz
to the
In position of the
Fine drive stops (red
arrow), see page 6-133
It is easier in case
you will only
exchange the
compensator.
Item Performance Action Result Notes
A
B
E
Lever arm
Fine drive pin
