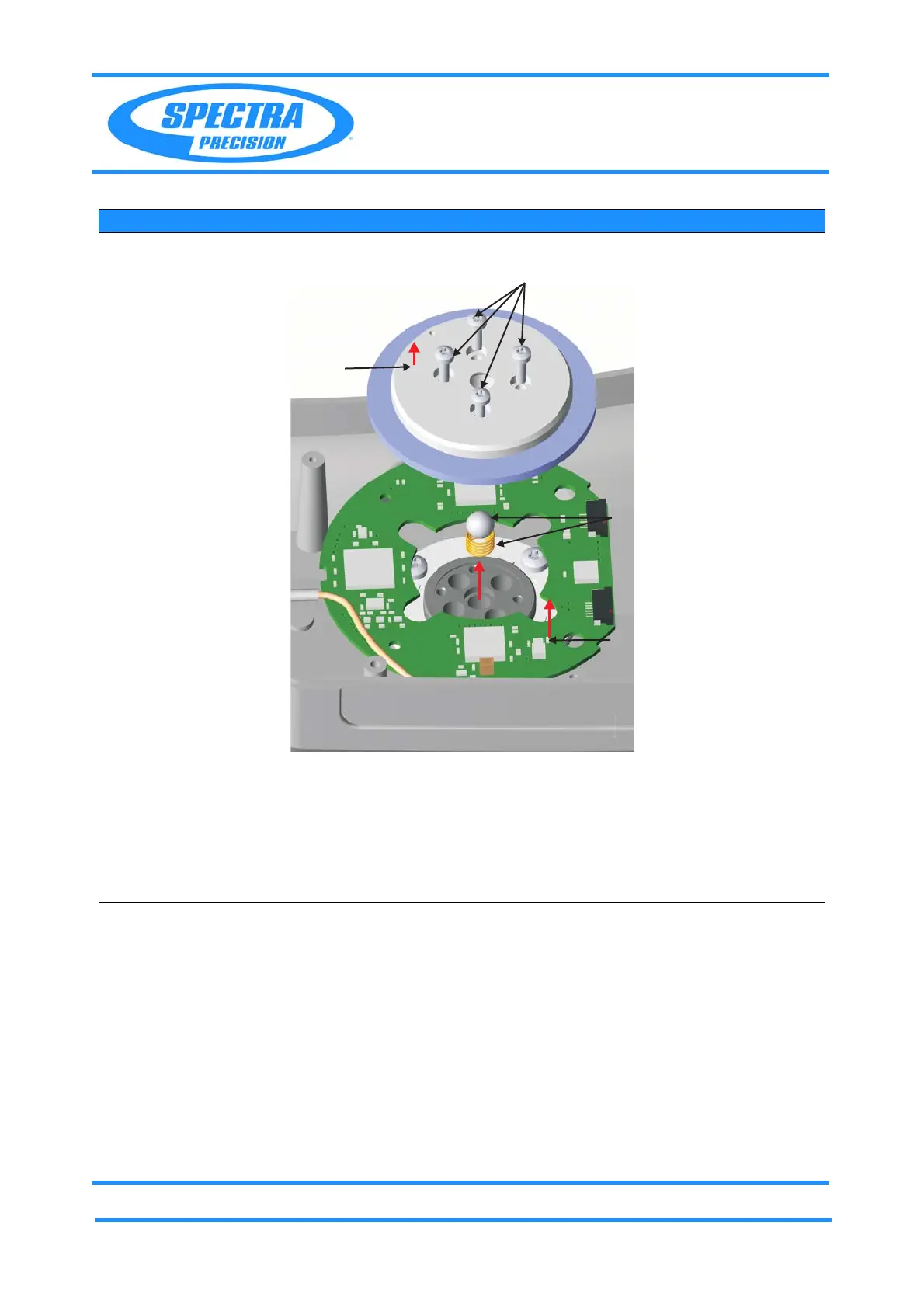

Fig. 5-57 Exchange Angle control board-ACB-V
4 Assembly Vertical
angle unit.
Remount the parts in
reverse order see page 5-
75.
and see page 5-76
35 Ncm/3.1lbfn
5 Adjustment and
calibration.
What to do after
replacement?
Item Performance Action Result Notes
A
B
D
C
C
