Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
Focus 30/35 Service Manual 6 - 52 P/N 79000035_SM, Version 1.5
2 Start service software
and switch on
Transmitter unit F30.

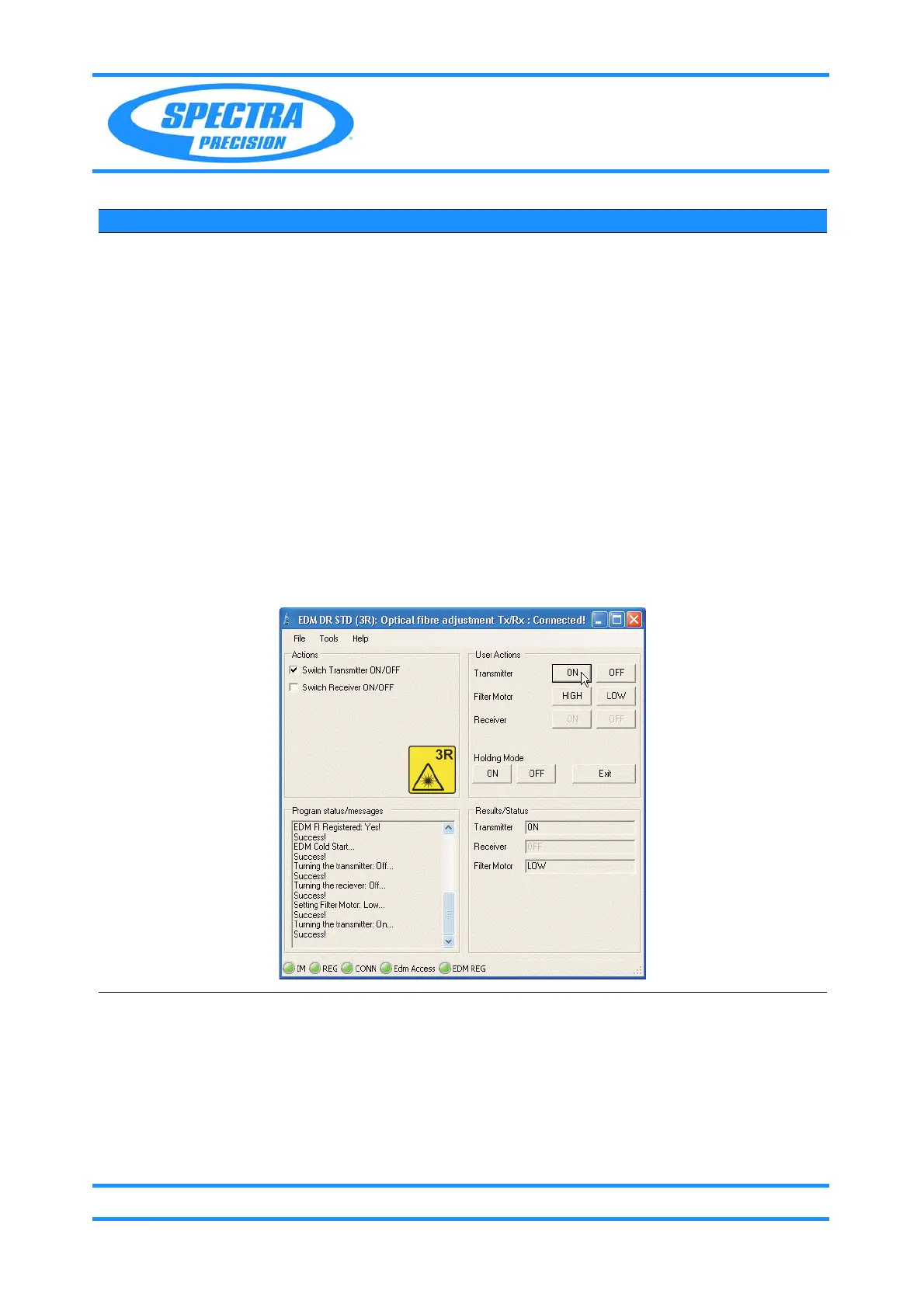

A. Select Optical fibre
adjustment Tx/Rx
from EDM DR
STD(3R)
in
Maintenance &
Sevice.
B. Click Filter motor
LOW.
C. Select
Switch
transmitter ON/OFF
check box.
D. Click Transmitter
ON
.
E. Switch on the reticle
illumination tool.see
Fig. 6-39 on page 6-
54 .
The Collimator
Monitor (CM)
Software starts
automatically.
The shadow of
the prism can be
seen on the
screen
attachment.
Refer also to the
Software user guide
chapter in the Trimble
Collimator Bench
manual on:
Collimator Bench
manual
A Laser 3R warning
label appears. Do not
look into the Front
lense and Laser beam.
Fig. 6-37 Adjustment Transmitter unit / Laser pointer
Item Performance Description Result Notes
