Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
Focus 30/35 Service Manual 5 - 16 P/N 79000035_SM, Version 1.5

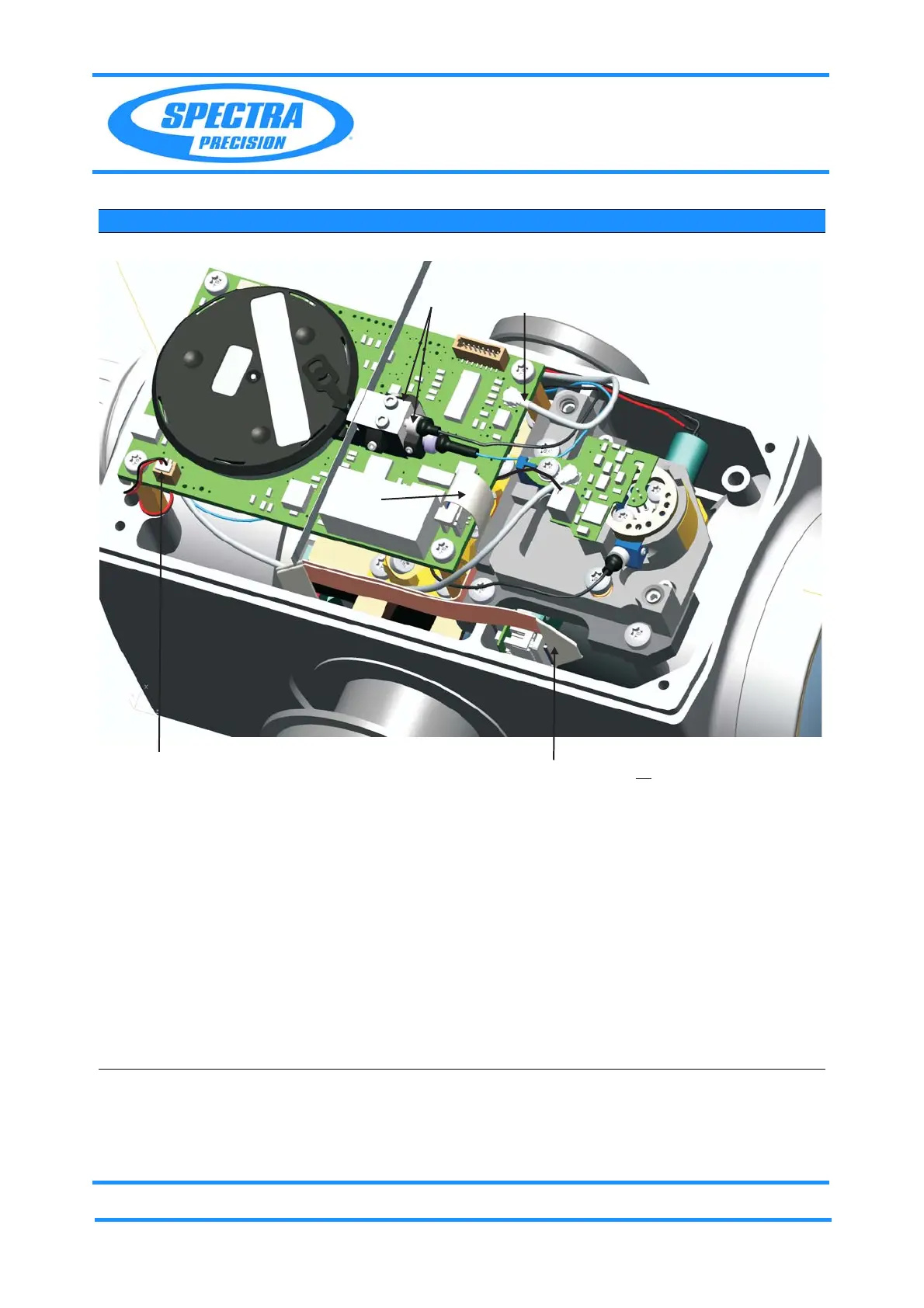

Fig. 5-11 Disconnect cables Receiver
3 Remove Receiver
board.
A. Remove four
screws.
B. Lift off the
Receiver board
with Receiver
fibre.
C. Loosen Receiver
fibre clamp
screw and pull
out the fibre.
D. Exchange
Receiver board
and mount it in
reverse order.
The Receiver board is
delivered with
mounted Receiver
fibre.
Torx T8
40Ncm/3,54lbfin
Ball Allen key 1,3mm
5Ncm/0,44lbfin
Please note the
position of cables and
fibres see Figure 5-
13 and see Fig. 5-14
on page 5-18 .
Item Performance Action Result Notes
A
B
C
D
E
