Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
P/N 79000035_SM, Version 1.5 5 - 61 Focus 30/35 Service Manual

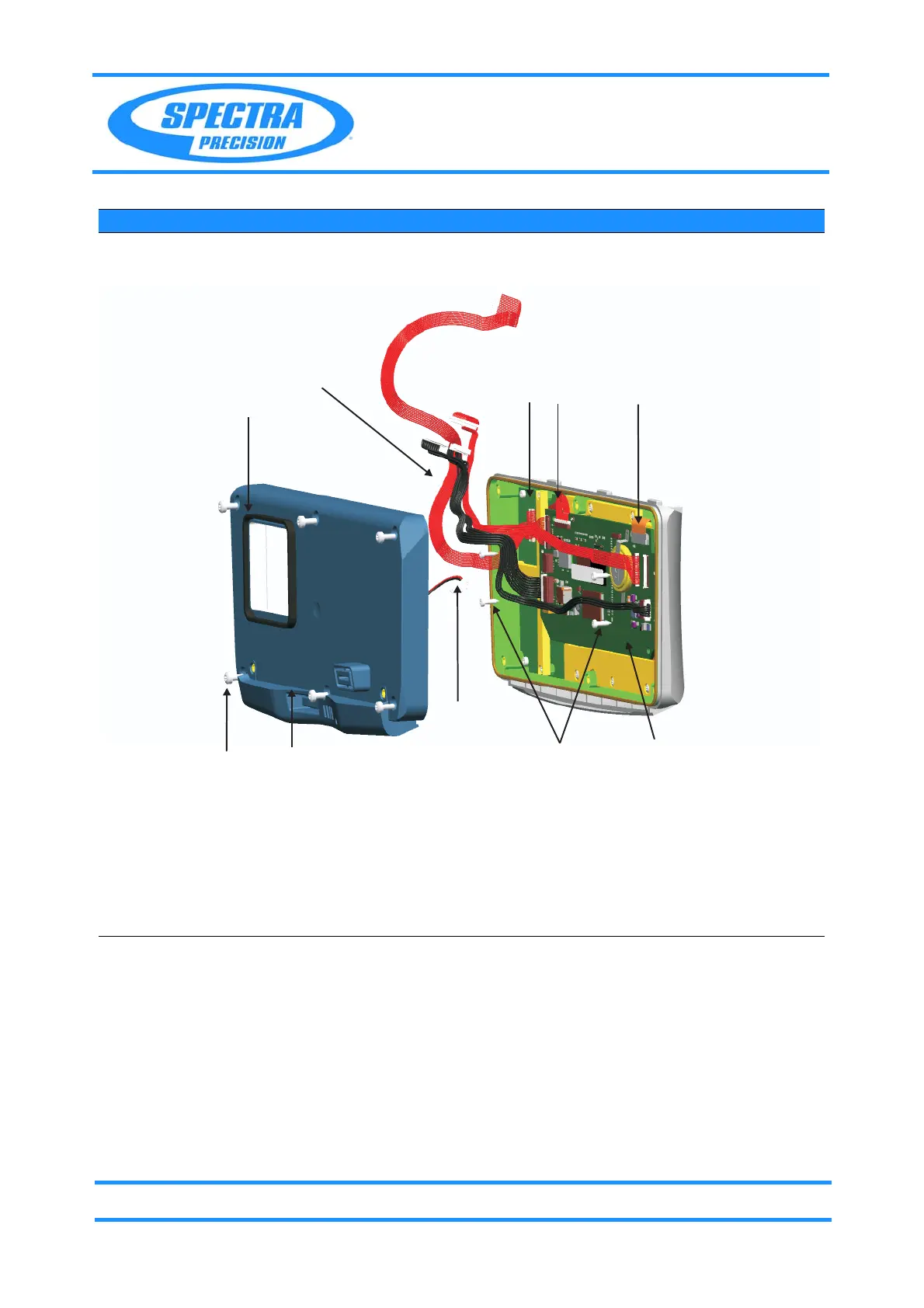

Fig. 5-47 Assembly of ACB board, cables and Rear panel
7 Attach the Control
Unit F30.
Attach the Control Unit
F30 to alhidade see page
5-53 and execute the
display and keyboard
test.
60 Ncm/5,31lbfin Use a torque
wrench TORX T8
8 Adjustment and
calibration.
What to do after
replacement?
Item Performance Action Result Notes
D(6x T8)
B
A
4 cables
C
E(4xEJOT)
Beeper
cable
ACB board
F1K board
D
Rear panel
E
