Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
P/N 79000035_SM, Version 1.5 5 - 71 Focus 30/35 Service Manual
8 Exchange Tilt
sensor.
A. Disconnect the
Cable TSB-MCB.
B. Remove the three
screws.
C. Tip the Tilt sensor
and remove it.
D. Exchange the Tilt
sensor and mount
the parts in reverse
order.
One screw is hidden
by the coarse motor.
60Ncm/5,31lbfn

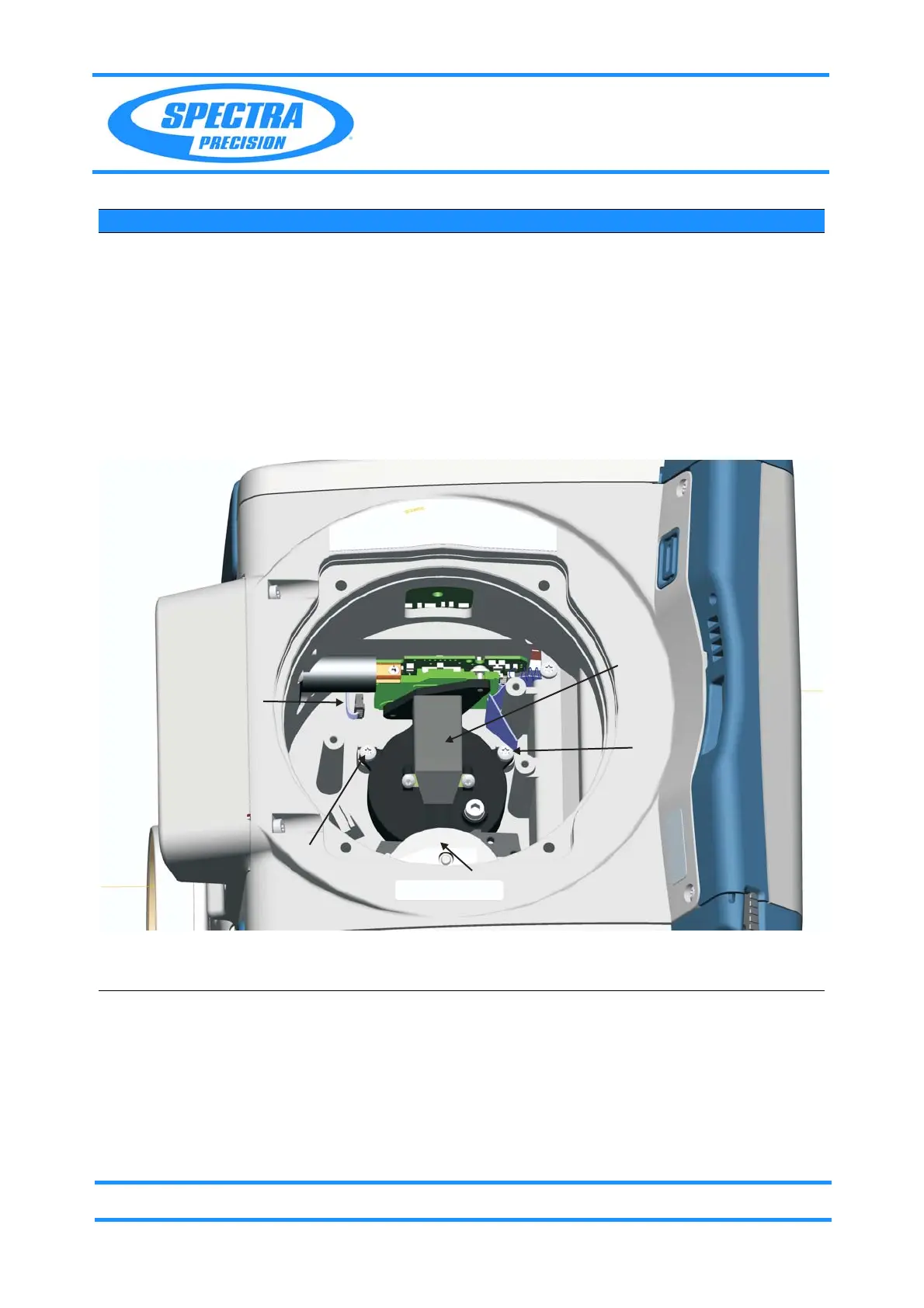

Fig. 5-54 Remove Tilt sensor
8 Adjustment and
calibration.
What to do after
replacement?
Item Performance Action Result Notes
A
C
B
B
B (underneath)
