Chapter 5
Maintenance and Repair
P/N 79000035_SM, Version 1.5 5 - 97 Focus 30/35 Service Manual

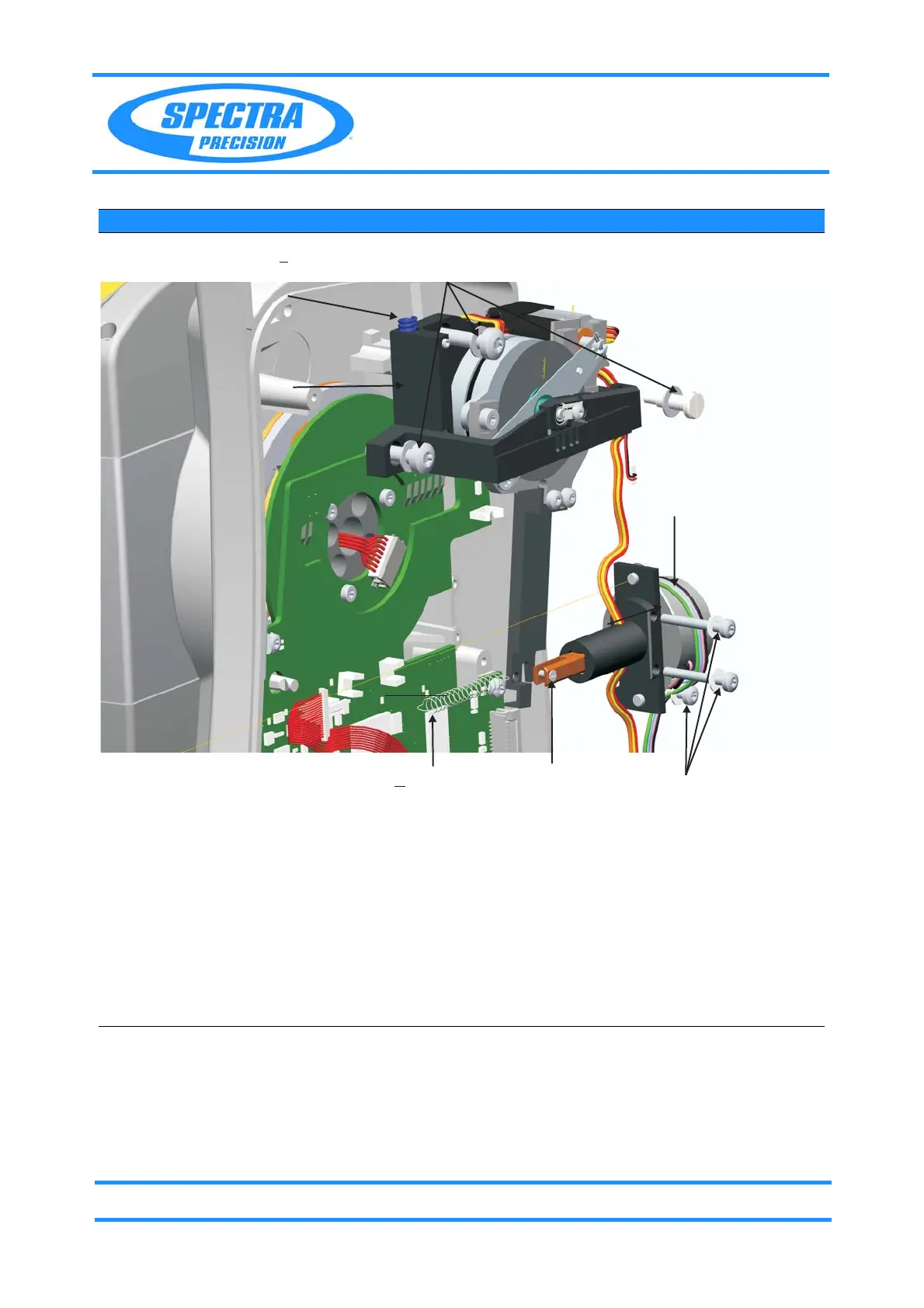

Fig. 5-74 Coarse drive V, Fine drive V replacement
5 Remove MCB
board.
see page 5-42
6 Remove Slip ring
board SRB.
A. Loosen the three
screws.
B. Disconnect cable
TSF-SRB.
C. Remove Slip ring
board SRB .
D. Exchange it and
mount in reverse
order.
60Ncm/5.31Lbfin
Item Performance Action Result Notes
A
C
D
E
B
Compression spring
Fine drive pin
