Spectra Precision Focus 30 Service Manual

Chapter 5
Maintenance and Repair
Focus 30/35 Service Manual 5 - 100 P/N 79000035_SM, Version 1.5
2 Clamp the Tension
gear V.
A. Mark the
superposed cogs
on steel and brass
cogwheel, after
the spring shows
the first
resistance.
B. Distort the
cogwheels by
help of a plier
with a
displacement of
one tooth.
C. Plug in the
Clamping tool in
the hole and fix
the tension of the
Tension gear.
Check the tension
and the offset of the
one tooth again.
The brass cogwheel
has to turn
countercklockwise.
Distortion one
Tooth:
Grease between the
cogwheel HF 500

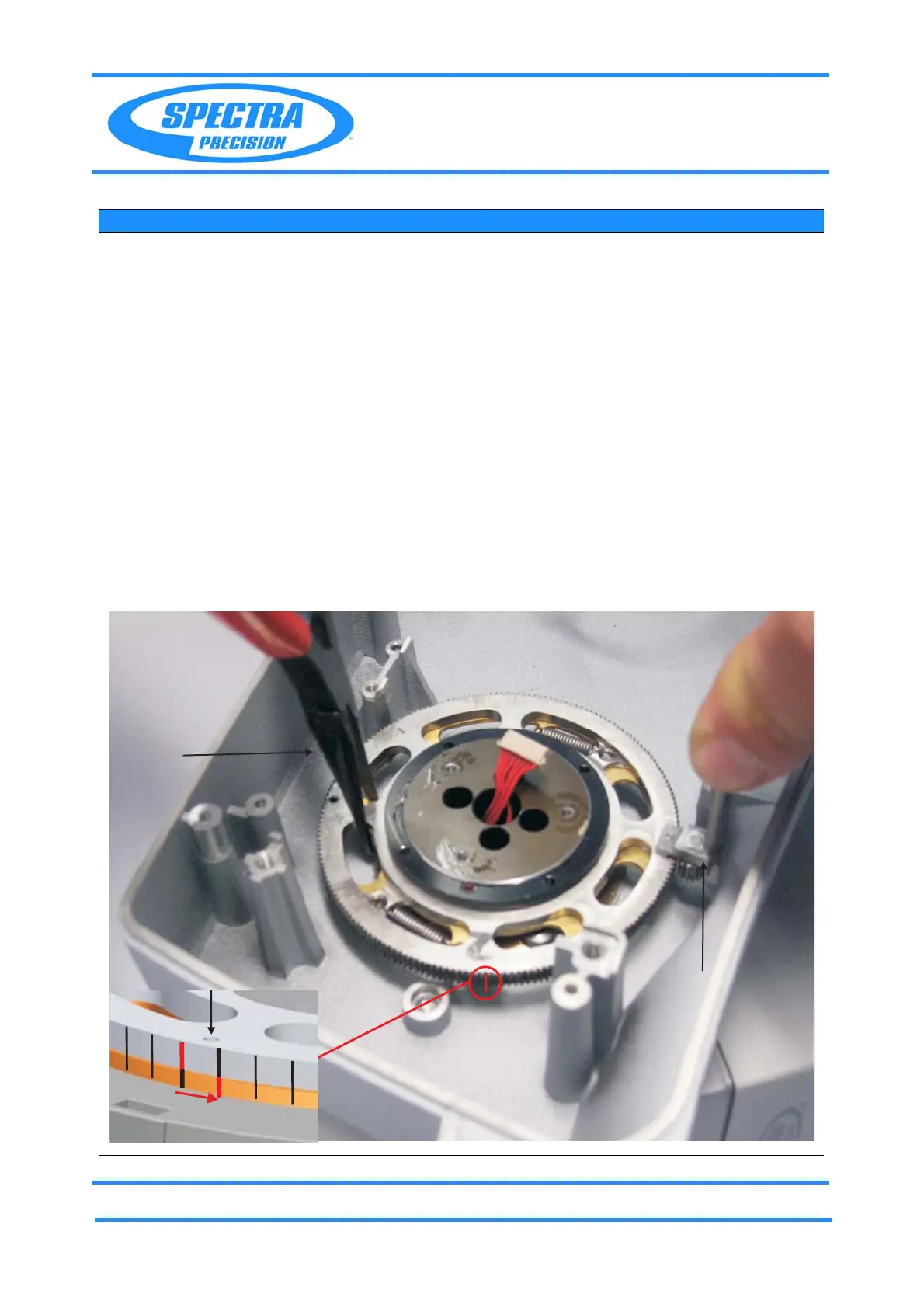

Fig. 5-77 Clamp the Tension gear
Item Performance Action Result Notes
A
B
C
Clamping tool
Plier
