Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
P/N 79000035_SM, Version 1.5 6 - 9 Focus 30/35 Service Manual
4 Start the test. Select HA/VA Collimation
Short Range Test from
Servo Focus in
Maintenance & Service, see
Fig. 6-84 on page 6-104 .
5 Start Short Range test. A. Select check box,
HA/ VA Collimation
Short Range Test
and
start the test.
B. Measure to infinite
collimator position in
Face 1and 2.
C. Measure to short
range collimator
position in Face 1and
2.
D. Store the correction
values CPK and IPK.
The Collimator
Monitor (CM)
Software starts
automatically.
Use the CM
software to view
the collimator
and instrument
reticle, set
Camera
settingsto
green(546nm)
light.
Wavelength adapter
position: 1
Refer also to the
Software user guide
chapter in the Trimble
Collimator Bench
manual on:
Collimator Bench
manual
Illuminate the reticle
with the Illumination
tool (yellow LED).

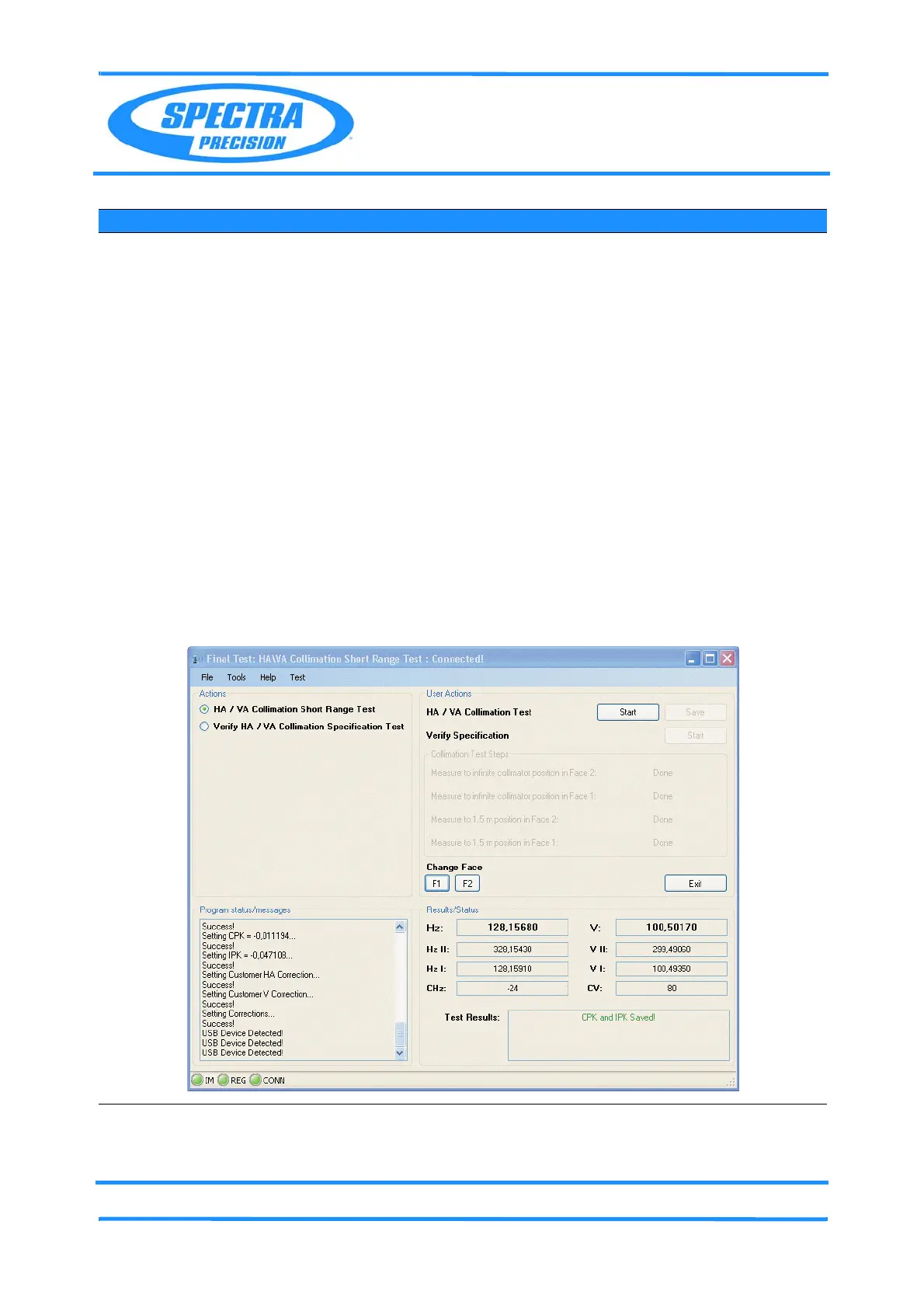

Fig. 6-6 HA/VA Collimation Short Range Test
Item Performance Action Result Notes
