Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
Focus 30/35 Service Manual 6 - 24 P/N 79000035_SM, Version 1.5

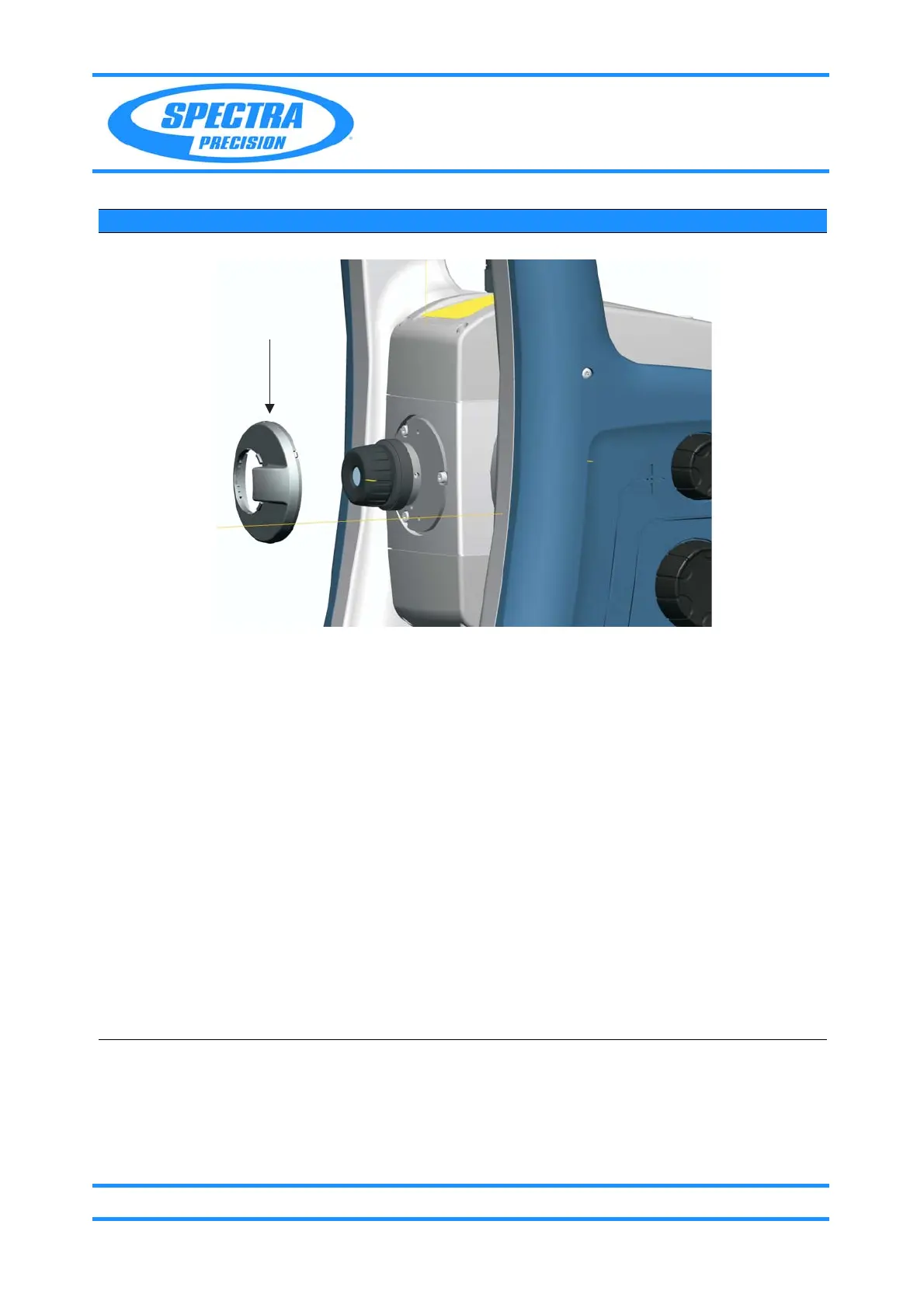

Fig. 6-16 Disassemble the Eyepiece cover
3 Adjust HA collimation A. Select
Adjust Hz
collimation
check
box.
B. Click
Measure Face 2
and aim to the
collimators cross-
hair in face 2.
C. Click
OK to start
measurement.
D. Click
Measure Face 1
and aim to the
collimators cross-
hair in face1.
E. Click
OK to start
measurement.
The instrument
turns to face 1/2
automatically.
The collimation
error CHz, the
appropriate
adjustment
position AP Hz
and the V-
reference angle
will be shown.
Collimator pos.1
Item Performance Action Result Notes
D
