Spectra Precision Focus 30 Service Manual

Chapter 6
Adjustment and Verification
P/N 79000035_SM, Version 1.5 6 - 117 Focus 30/35 Service Manual
2 Adjusting the gap. A. Loose the two fixing
screws
B. Find the gap between
the Vertical Coarse
lever arm index and
the MCB board.
C. Put in the gap the
Lever arm
adjustment tool with
the smaller end (go
side).
D. Shift down the Lever
arm until the index
touches the Lever
arm adjustment tool
V slightly.
E. Tighten the two
fixing screws and
remove the Lever
arm adjustment tool
V.
Tolerance:
gap >2,3mm
Torx T8
60 Ncm/5,31bfn
Lever arm adjustment
tool V.
The Lever arm
adjustment tool V has
one end width 2,3mm
(go side), the other
width is 3,2mm
marked with a drill
hole (no go side).
Torx T8
60 Ncm/5,31bfn

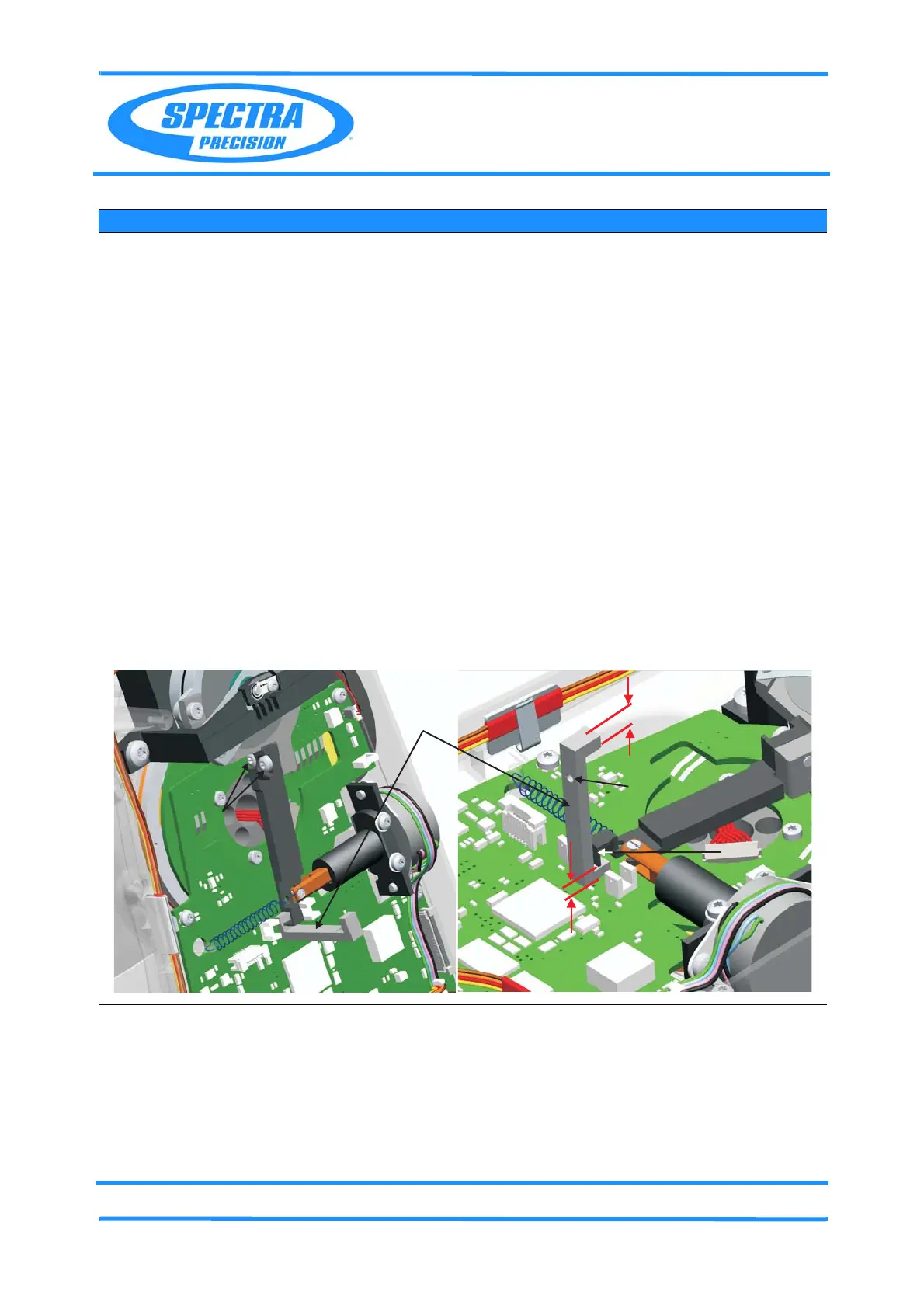

Fig. 6-92 Adjusting the gap V
Item Performance Action Result Notes
drill hole
gap between
2,3mm....3,2mm
3,2mm
2,3mm
lever arm index
gap
B
Lever arm adjustment
tool V
C
A/E
D
