Spectra Precision Focus 30 Service Manual

Chapter 4
Troubleshooting
P/N 79000035_SM, Version 1.5 4 - 13 Focus 30/35 Service Manual
Unit Status:
Green color
Yellow color
Grey color
Red light
Unit Status meaning:
Sensor is registered and the initialisation was successful (working).
Sensor is registered but the initialisation failed (doesn’t work).
Sensor is not registered and the initialisation failed (doesn’t work).
Instrument manager recognizes at least one error entry in the Event log
file. It is recommended to evaluate the Event log file.
3 Check basic function A. Select
Check basic
functions
for EDM
and Tracker.
B. Press
Start button to
release the
measurement.

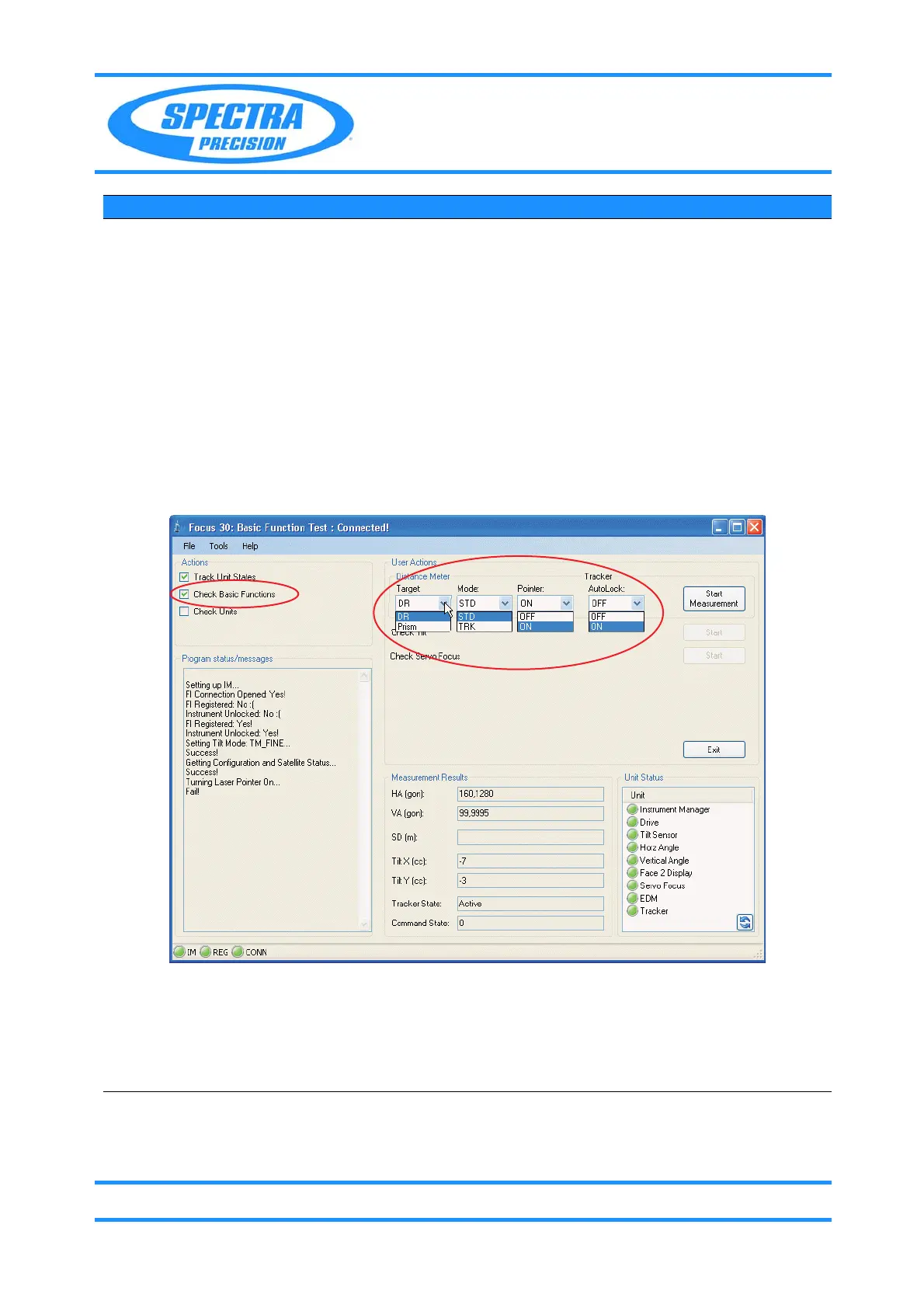

Fig. 4-8 Check basic functions
4 Check Units:
Tilt sensors
A. Select
Check Units.
B. Press on
Check Tilt
the Start button to get
the raw tilt data for
Coarse or Fine tilt
sensor.
