Suzuki SWIFT 2005 User Manual

Air Bag System: 8B-75

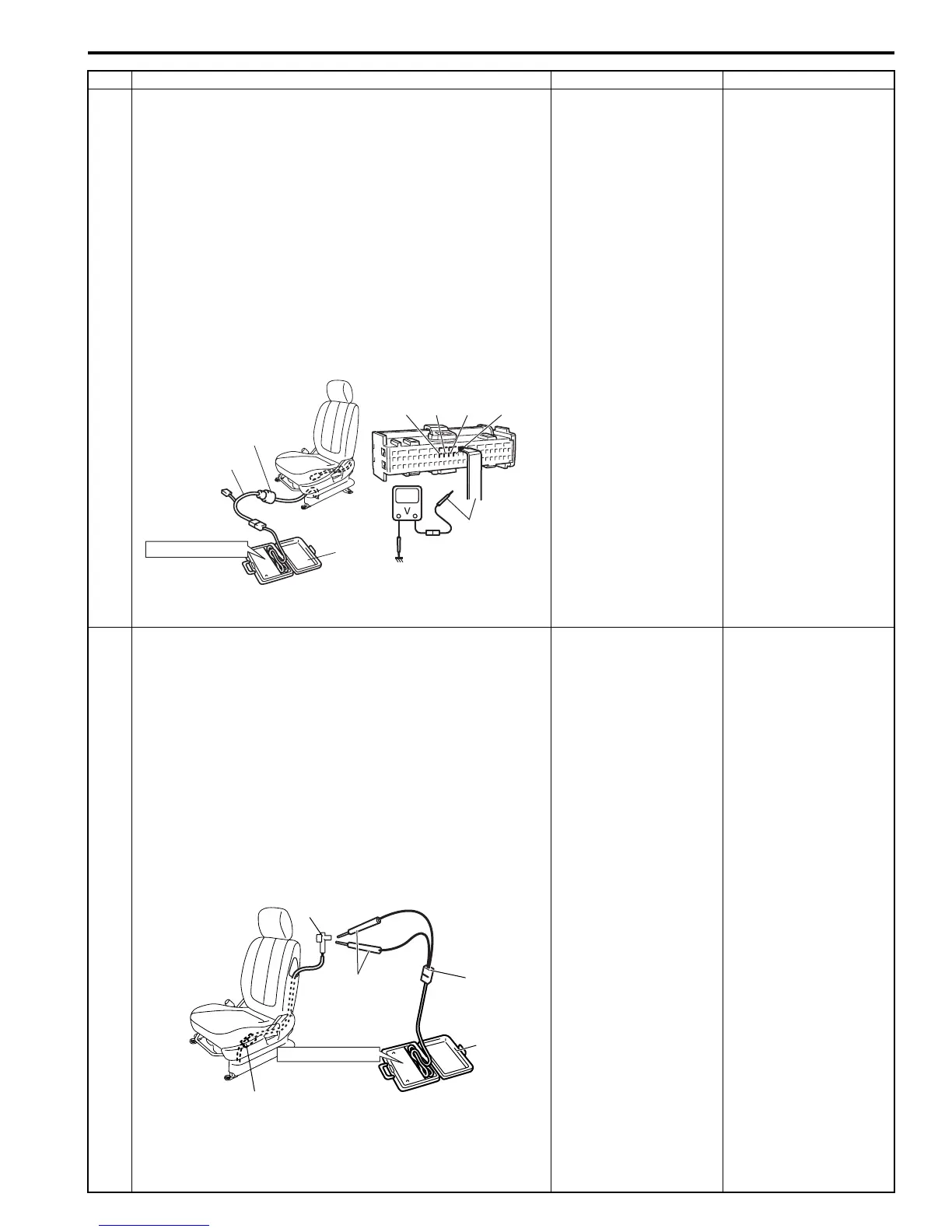

2 1) With ignition switch OFF, disconnect special tools (B),
(C) and SDM connector “L29”.
2) Release shorting bar in SDM connector inserting release
tool (1) included in special tool (A).
3) Measure voltage between “L29-11” and body ground,
and between “L29-12” and ground (for DTC B1064) or
“L29-13” and body ground, and between “L29-14” and
body ground (for DTC B1068) with connected special
tools (B) and (C).
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78340
With ignition switch ON, is voltage 1 V or less?
Substitute a known-
good SDM and recheck.
DTC B1064: Repair
short from “GRY/RED”
or “GRY” wire circuit to
power circuit in floor
harness.
DTC B1068: Repair
short from “BRN/WHT”
or “BRN” wire circuit to
power circuit in floor
harness.
3 1) With ignition switch OFF, disconnect special tools (B)
and (C) then reconnect connector “L25” or “L30”.
2) Disconnect side-air bag (inflator) module connector (1)
from side-air bag (inflator) module.
3) Check proper connection to side-air bag (inflator)
module at terminal in connector.
4) If OK, then connect special tools (A), (B) and (C) to side-
air bag (inflator) connector.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
5) Check SDM DTC.
With ignition switch ON, is DTC B1064 or B1068 still
indicated?
DTC B1064: Repair
short from “GRY/RED”
or “GRY” wire circuit to
power circuit in seat
harness.
DTC B1068: Repair
short from “BRN/WHT”
or “BRN” wire circuit to
power circuit in seat
harness.
Replace side-air bag
(inflator) module
referring to“Side-Air Bag
(Inflator) Module
Removal and
Installation”.
Step Action Yes No
"L29-12""L29-13""L29-14""L29-11"
(A)
“L25”, “L30”
(C)
(B)
STEERING WHEEL
I7RS0A820023-01
1
“L25”, “L30”
STEERING WHEEL
(B)
(C)
(A)
I4RS0A820034-01
