Wiring Systems: 9A-22

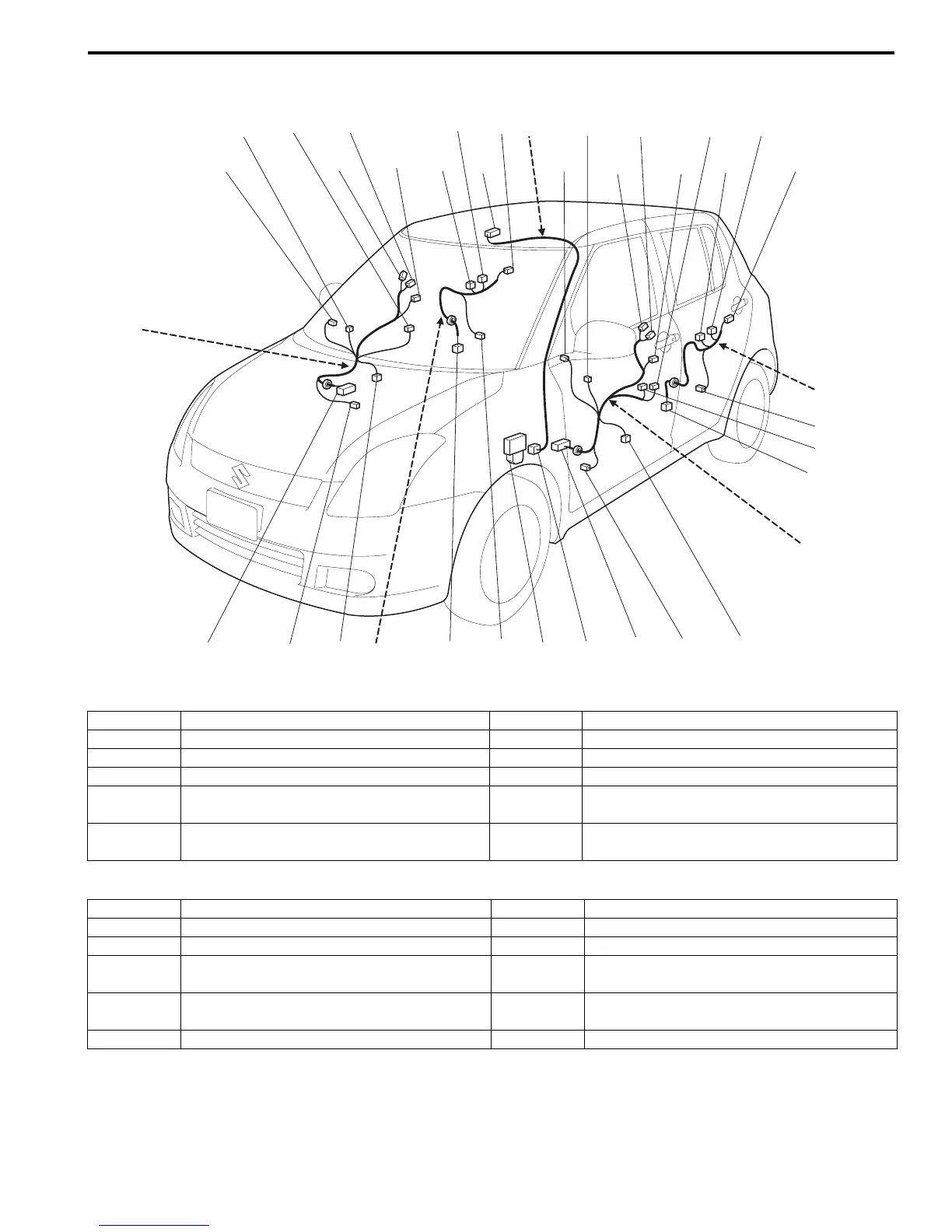

J: Front and rear door wire and rear door joint wire / K: Roof wire (LHD)
J: Front door wire (Drive side)
J: Front door wire (Passenger side)
J04 J21
(TO L37)
J02
J03
J13
J15 J29
J28
J25
J23
J24
J
J09
(TO L31)
J22 J01
(TO L07)
J12
J10
J06
J18
J19
J20
J
J
J17
J08
J16
(TO L13)
J05
J11
J26
J07
J27
J14
J
K02
K
J/B
K01
I6RS0C910928-01
No./Color Connective position No./Color Connective position
J01/N Floor harness (To L07) J10/BLK Tweeter (L)
J05/GRY Front power window motor (Driver side) J11/N Power mirror motor (L)
J06/N Front door lock switch (Driver side) J12/N Front speaker (L)
J07/N Power mirror switch (Driver side)
J26/N (IF
EQPD)
Door antenna (Driver side)
J08/BLU Power window main switch
J27/N (IF
EQPD)
Request switch (Driver side)
No./Color Connective position No./Color Connective position
J02/BLK Tweeter (R) J14/GRY Front power window motor (Passenger side)
J03/N Power mirror motor (R) J15/N Power window sub switch
J04/N Front speaker (R)
J28/N (IF
EQPD)
Door antenna (Passenger side)
J09/N Floor harness (To L03)
J29/N (IF
EQPD)
Request switch (Passenger side)
J13/N Front door lock motor (Passenger side)
