10B-15 Body Electrical Control System:
Without Using SUZUKI Scan Tool
1) Turn ignition switch to OFF position.
2) Perform following Steps a) to d) within 10 seconds after ignition switch is turned ON and engine stops.
a) Turn headlight switch to “SMALL” position.
b) Turn headlight switch to “OFF” position.
c) Repeat Steps a) and b) 2 times.
d) Press and release driver side door switch 3 times.
3) Check DTC displayed on odometer of combination meter or read flashing pattern of theft deterrent light which
represents DTC as shown in the following example and write it down.
When more than 2 DTCs are stored in memory, flashing for each DTC starts with the smallest DTC number in
increasing order. Also, DTC is indicated repeatedly until the ignition switch is turned OFF.
4) After completing the check, turn ignition switch to OFF position.
DTC Clearance
S7RS0BA204006
After repair or replace of malfunction part(s), clear all
DTCs by performing the following procedure.
Using SUZUKI Scan Tool
1) Connect SUZUKI scan tool to data link connector in
the same manner as when making this connection
for DTC check.
2) Turn ignition switch ON and engine stops.
3) Erase DTC according to instructions displayed on
scan tool. Refer to scan tool operator’s manual for
further details.
4) After completing the clearance, turn ignition switch
off and disconnect scan tool from data link
connector.
Without Using SUZUKI Scan Tool
1) Turn ignition switch to OFF position.
2) Perform following Steps a) to d) within 10 seconds
after ignition switch is turned ON and engine stops.
a) Turn headlight switch to “SMALL” position.
b) Turn headlight switch to “OFF” position.
c) Repeat Steps a) and b) 3 times.
d) Press and release driver side door switch 4
times.
3) After completing above Steps, confirm that no
malfunction DTC is detected.
B
A
[B]
[A]
[C]
B
A
B
A
311 3
311 3
T2
T1 T1 T1
T1
1
2
T2 T2
T2
T1 T1 T1
T1
T2 T2
0
T2
0
T2
0
T2
0
T2
11 6 0
T1 T1 T1
T2T3 T2 T2 T2
I4RS0AA20007-01

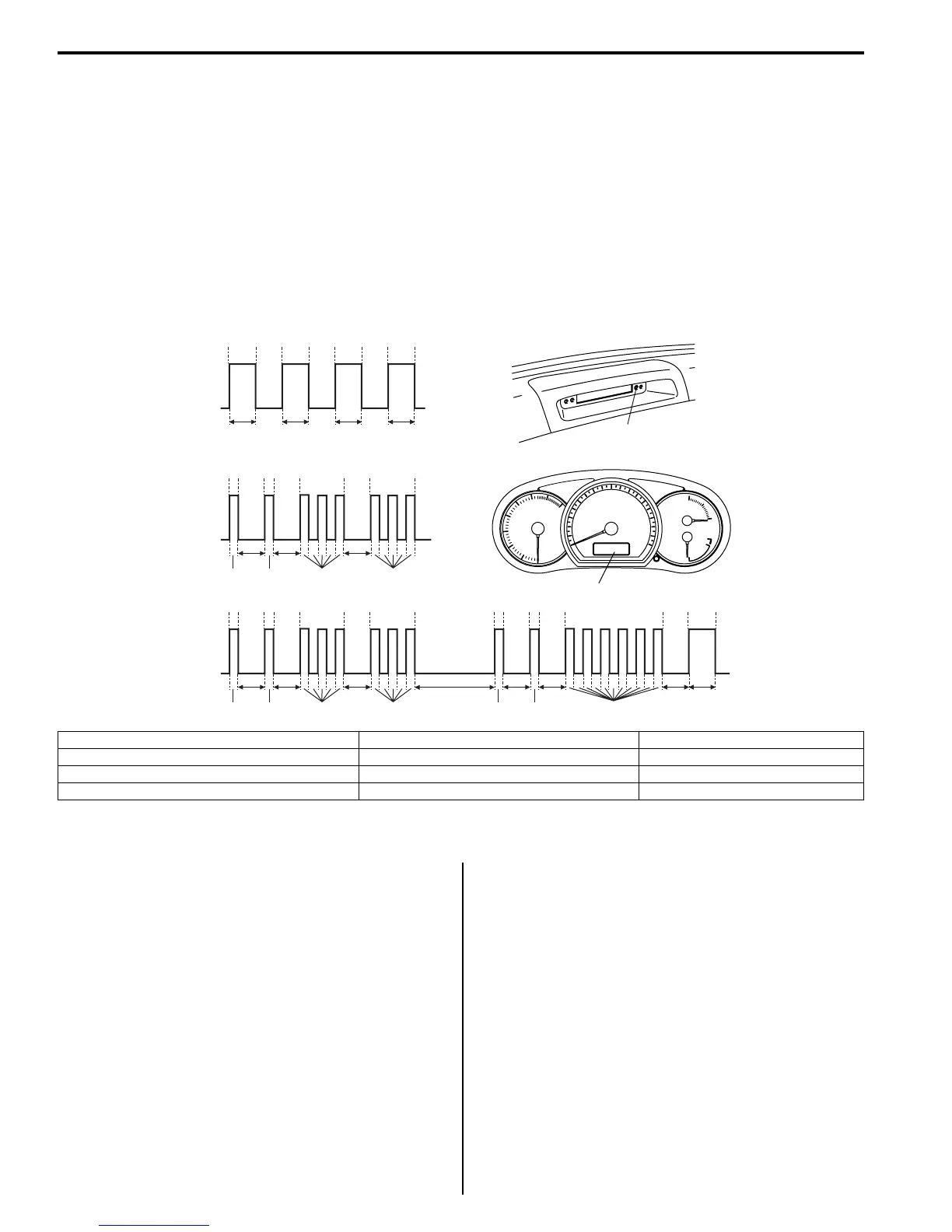

[A]: No DTC (No. 0000) B: Indicator lamp turned OFF 1. Theft deterrent light
[B]: DTC B1133 (No. 1133) T1: 0.3 seconds 2. Odometer
[C]: When 2 DTCs are detected T2: 1.0 seconds
A: Indicator lamp turned ON T3: 3.0 seconds
