Body Electrical Control System: 10B-16
BCM Power Circuit and Ground Circuit Check
S7RS0BA204007

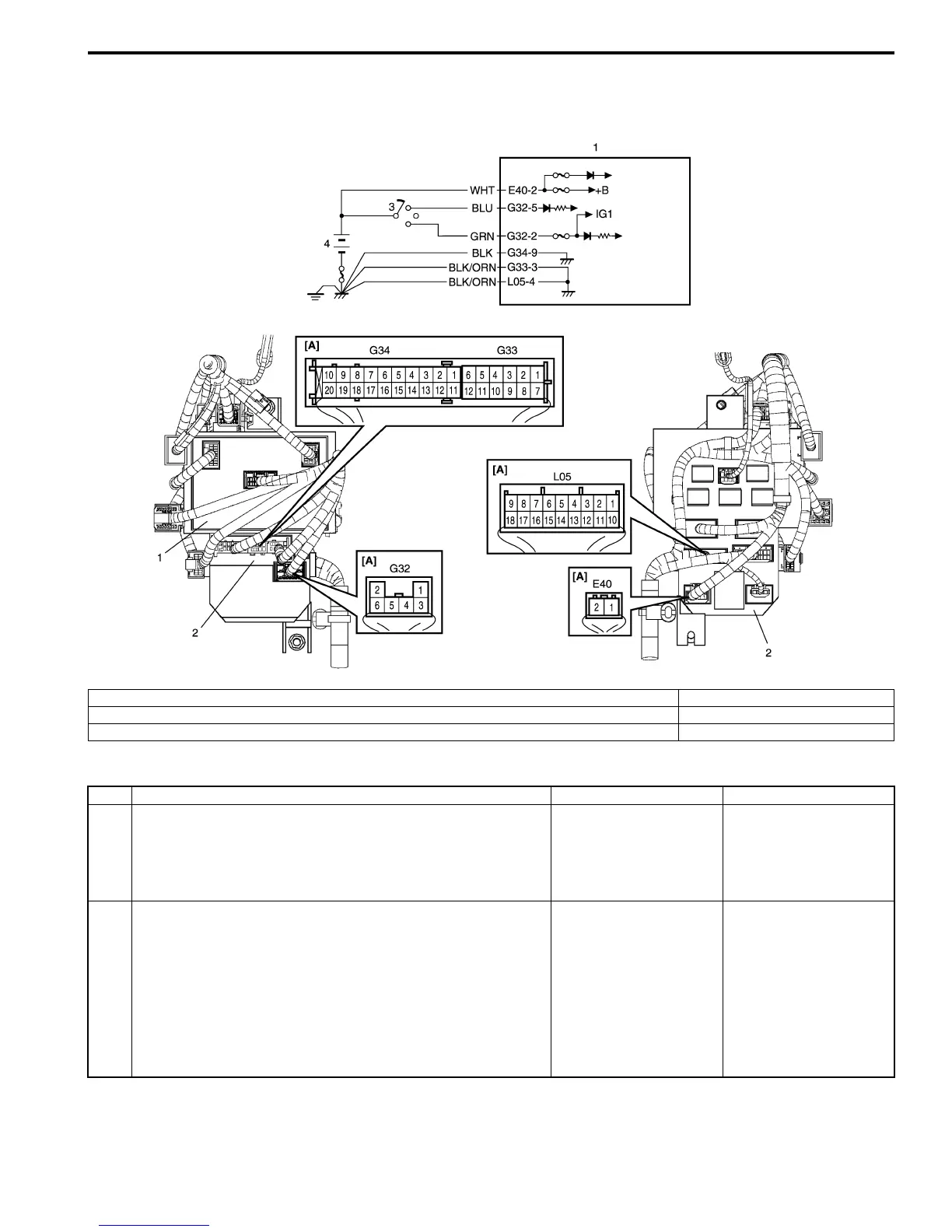

Wiring Diagram
Troubleshooting
I4RS0AA20008-01
[A]: Junction block assembly connector viewed from harness side 3. Ignition switch
1. BCM 4. Battery
2. Junction block assembly
Step Action Yes No
1 Fuse check
1) Turn ignition switch to OFF position.
2) Check circuit fuses for condition.
Are circuit fuses in good condition?
Go to Step 2. Replace fuse and check
for short circuit to
ground.
2 Power supply circuit check
1) Disconnect connectors from junction block assembly.
2) Check for proper connection to junction block assembly
connector at terminal “E40-2”.
3) If OK, then measure voltage between “E40-2” terminal of
junction block assembly connector and vehicle body
ground.
Is voltage 10 – 14 V?
Go to Step 3. Repair power supply
circuit.
