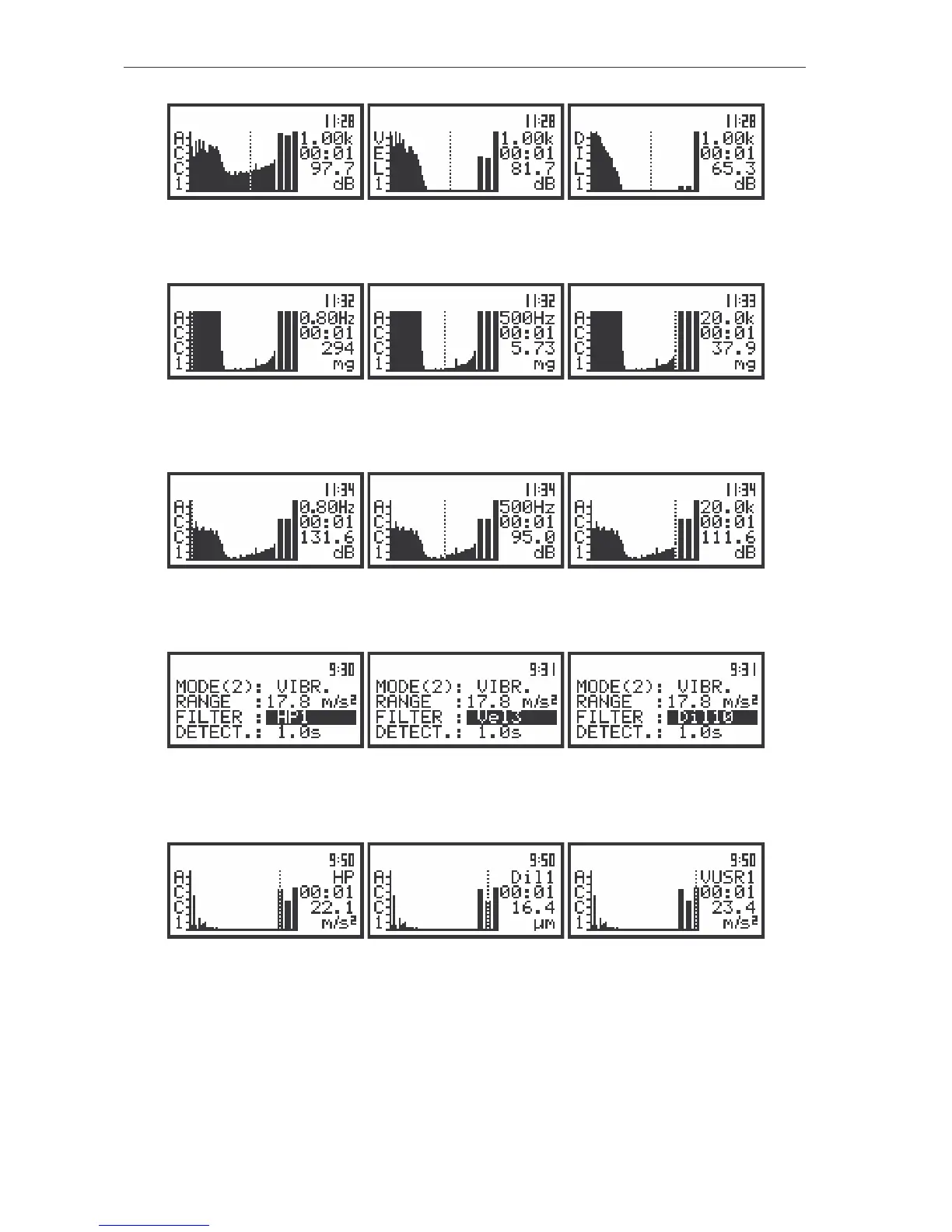

The view of the displays in 1/3 OCTAVE analysis with the acceleration, velocity and displacement spectrum
expressed in LOGarithmic units (path: MENU / DISPLAY / DISPLAY SETUP / DISPLAY SCALE / LOG)
The view of the displays in 1/3 OCTAVE analysis with the acceleration spectrum expressed in LINear (path:
MENU / DISPLAY / DISPLAY SETUP / CHANNEL x / DISPLAY SCALE / LIN), NON-METRIC units (path: MENU /
SETUP / VIBRATION UNITS / NON METRIC)
The view of the displays in 1/3 OCTAVE analysis with the acceleration spectrum expressed in LOGarithmic
units (path: MENU / DISPLAY / DISPLAY SETUP / CHANNEL x / DISPLAY SCALE / LOG)
The view of the displays (path: MENU / DISPLAY / DISPLAY SETUP / CHANNEL x / TOTAL VALUES / TOTAL x /
FILTER) with the different weighting filters (path: MENU / INPUT / CHANNELS SETUP / CHANNEL x) which can
influence the units of vibration results
The view of the displays in 1/3 OCTAVE analysis with the acceleration spectrum expressed in LINear (path:
MENU / DISPLAY / DISPLAY SETUP / CHANNEL x / DISPLAY SCALE / LIN), METRIC (path: MENU / SETUP /
VIBRATION UNITS / METRIC) units; first TOTAL value selected as HP, second TOTAL value selected as CH
and third TOTAL value selected as VUSR1 and in the first channel an acceleration (HP), displacement (Dil1)
or defined by user (VUSR1) filter selected
