SVAN 948 USER MANUAL .
1 - 2
Accessories included
• SV 22 - prepolarised condenser microphone ½”, sensitivity 50 mV/Pa or SVMI17 (Type 2) ¼” electret
microphone,
• SV 12L or SVMI17 - microphone preamplifier,
• SC 16 - USB 1.1 cable,
• SV 39A seat accelerometer for Whole Body measurements, Dytran 3023A1 triaxial for Hand Arm
measurements or other IEPE accelerometers optional,
• SVAN_PC ver. 2xx for Windows 95/98/NT/2000/XP.
Accessories available
• SA 17 - external battery pack,
• SA 22 - windscreen,
• SV 3185D IEPE type transducer from DYTRAN with the nominal sensitivity 10 mV / ms
-2
(100 mV / g),
• Other IEPE transducers from DYTRAN,
• SvanPC ver. 3.xx for Windows 98/2000/XP,
• SvanRT ver. 1.xx real time sound and vibration analysis software for Windows 98/2000/XP.

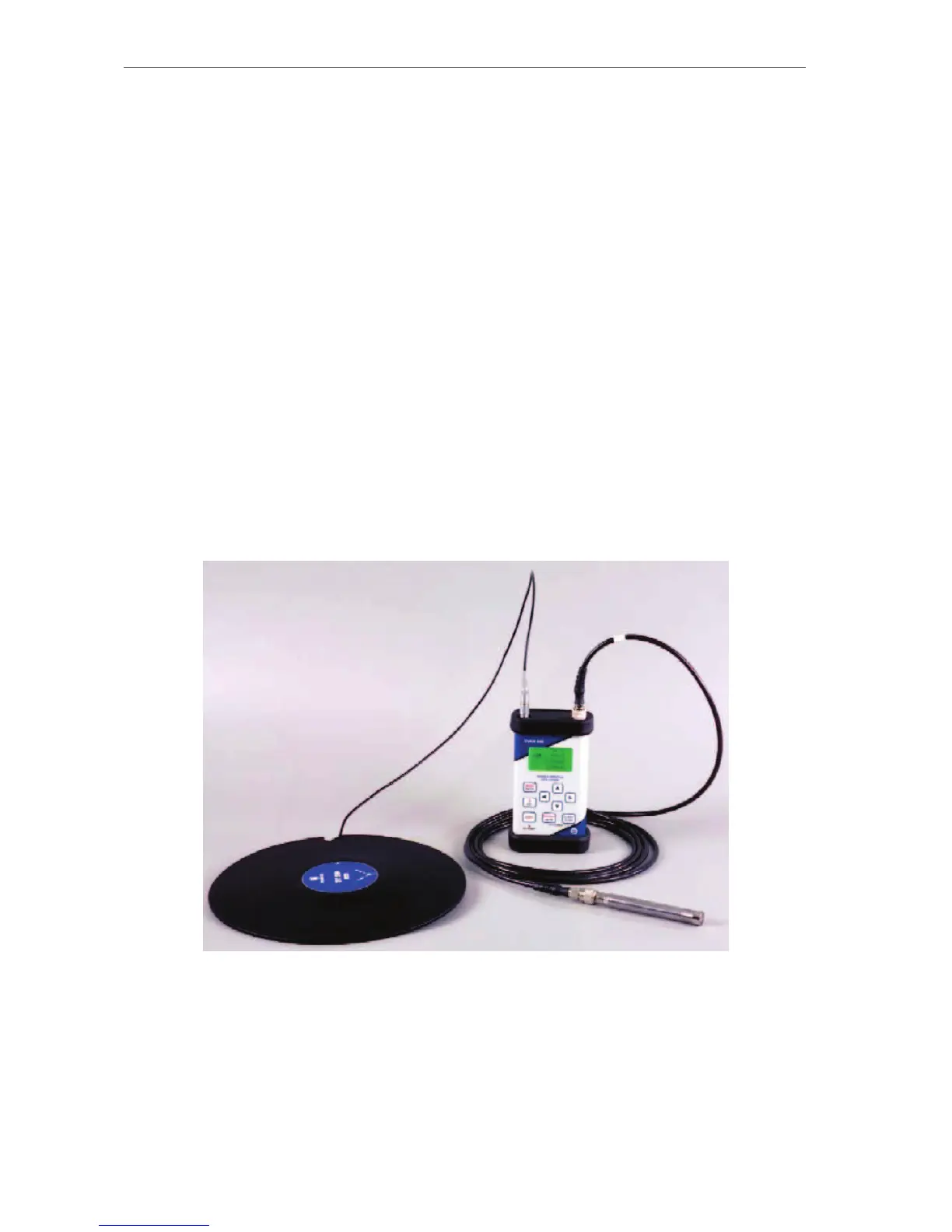

The view of the SVAN 948 instrument with the seat accelerometer, the preamplifier and the microphone
