SVAN 948 USER MANUAL
5 - 33

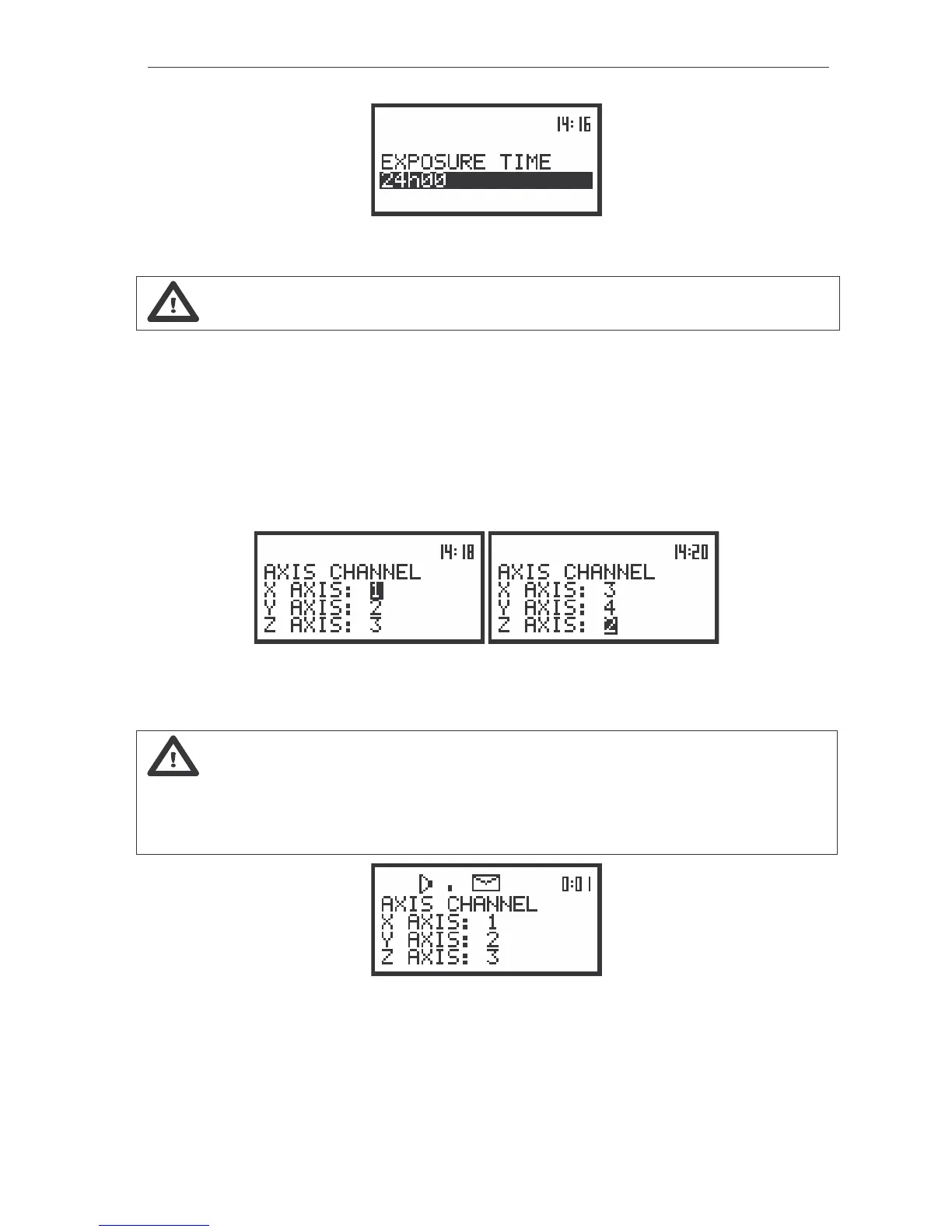

The view of the display with maximum EXPOSURE TIME
Notice: It is possible to change the time during the execution of the measurements.
Selection of the parameters of vibration dose - AXIS SETUP
In the AXIS SETUP position (path: MENU / SETUP / HAV/WBV DOSE / AXIS SETUP) the user can
assign each axis of triaxial accelerometer to the number of channels. It could be three different
accelerometers assigned to the number of channels. It is possible to set this channel using the <
>, <
>
push-buttons. The user can change position using the <
>, <
> push-buttons. In order to confirm the
setting the <ENTER> push-button has to be pressed. Such pressing closes the sub-list. After pressing the
<ESC> push-button the sub-list is also closed but all changes which were made are ignored.
The view of the displays with the AXIS CHANNEL
(path: MENU/ SETUP/ HAV/WBV DOSE/ AXIS SETUP) some position selected
Notice: It is not possible to set the axis channel of the measurements during the
execution of the measurements. It is possible to open different lists and sub-lists but the positions in these
lists are not displayed inversely and so - not accessible. The “Loudspeaker” icon indicates that the
instrument is in the measurement process. In order to change the range the measurement must be
finished!
The view of the displays with AXIS CHANNEL position not accessible
If the user assigns any wrong axis of accelerometer (not corresponding to the number of channels),
it appears on the display the text: INCORRECT SETUP, VIB. DOSE IS OFF and measurements of dose
will not be done. Otherwise the measurement will be continued.
