11.3.3 REMOVING THE
MAIN LEFT GUARD
1
Figure 134
Remove the main right guard as indicated in
“11.3.2 Removing the main right guard”.

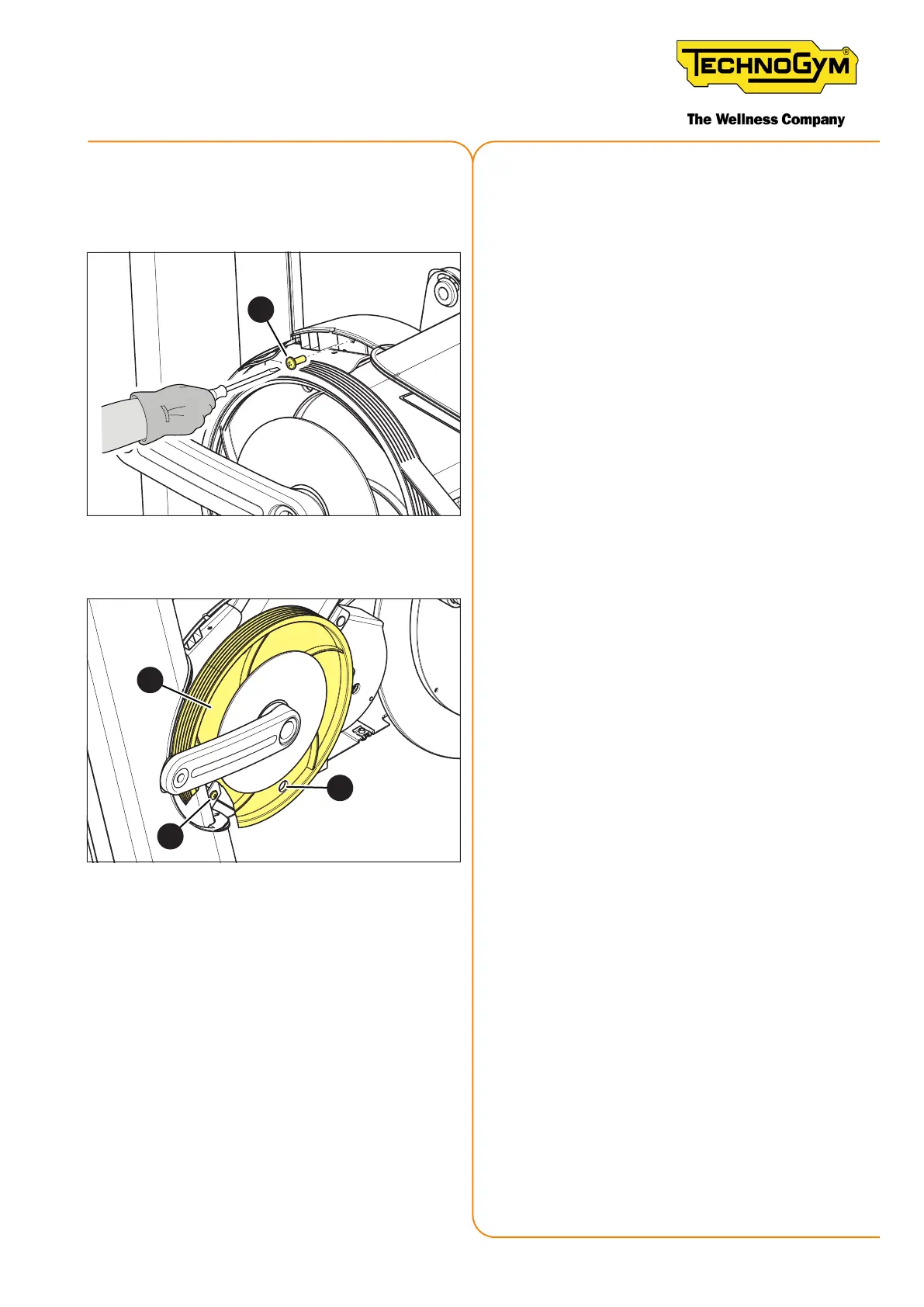

1. Remove the screw (1) with a medium
Phillips screwdriver.
2
3
F1
Figure 135
2. Rotate the pulley (2) until the hole (F1) is
aligned with the screw (3).
