11.5.3 REMOVING
THE FLYWHEEL,
TRANSMISSION BELT
AND GENERATOR BELT
2
1

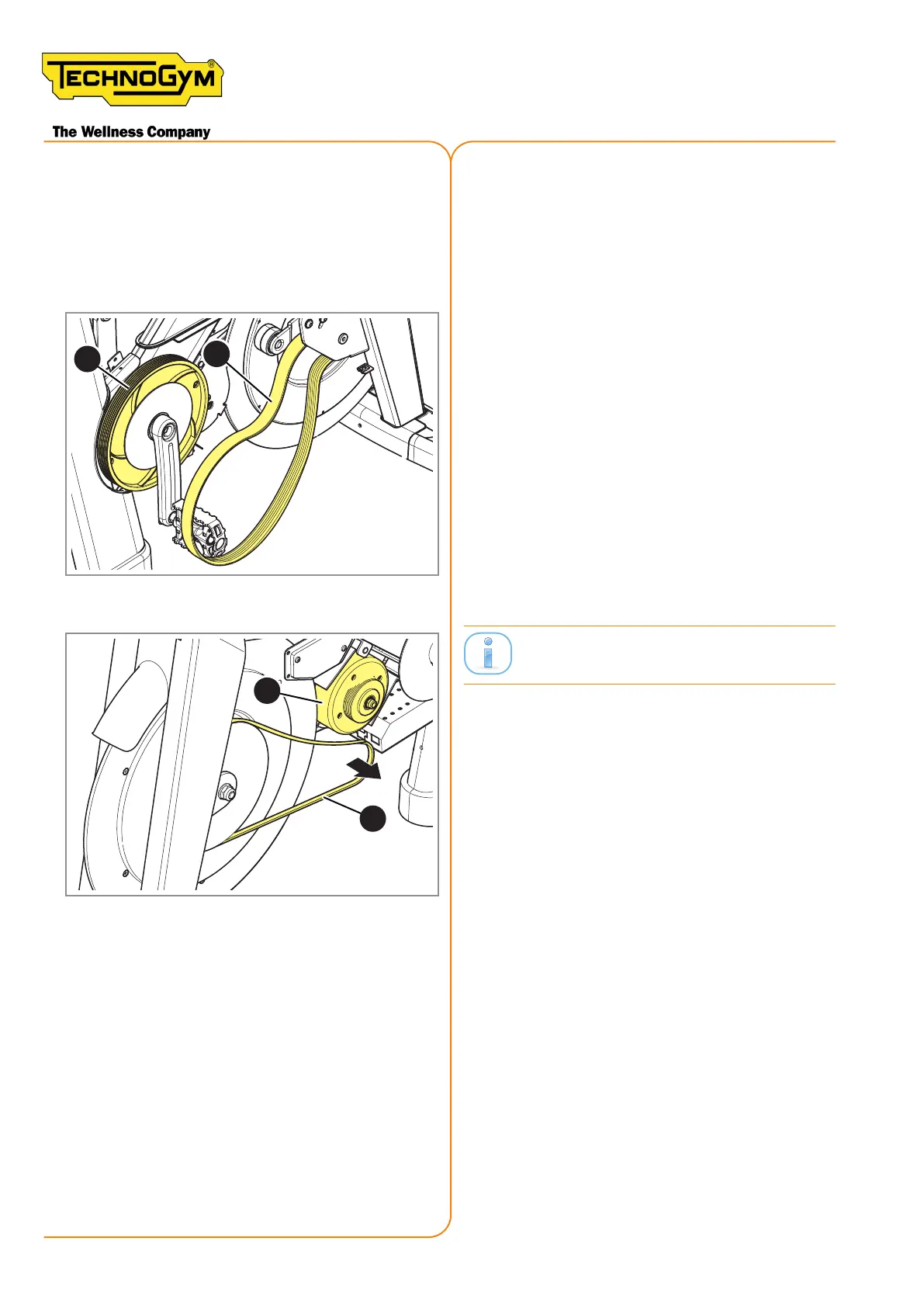

Figure 154
Release tension from the belt tensioner as in-
dicated in “11.5.1 Tightening the transmission
belt”.
1. Take the belt (1) o the pulley (2).
3
4
Figure 155
Only for Connect version.
2. Remove the belt (3) from the generator (4).
